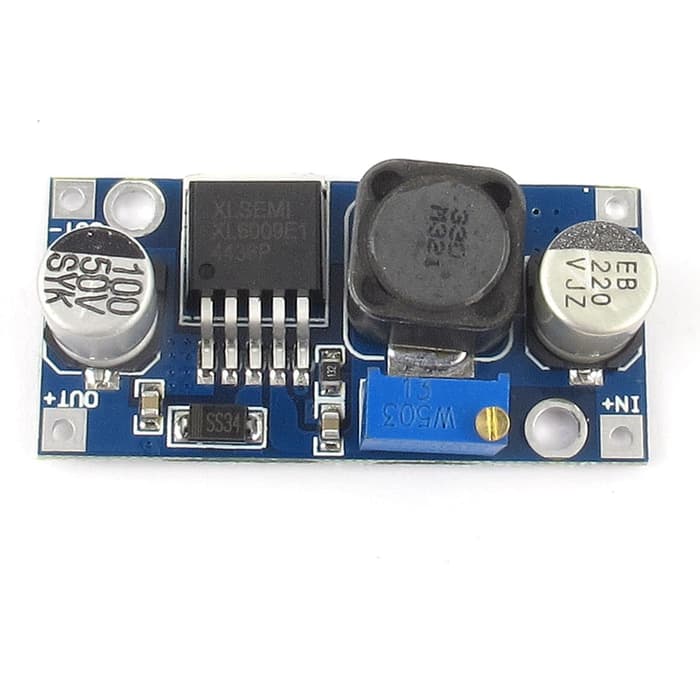

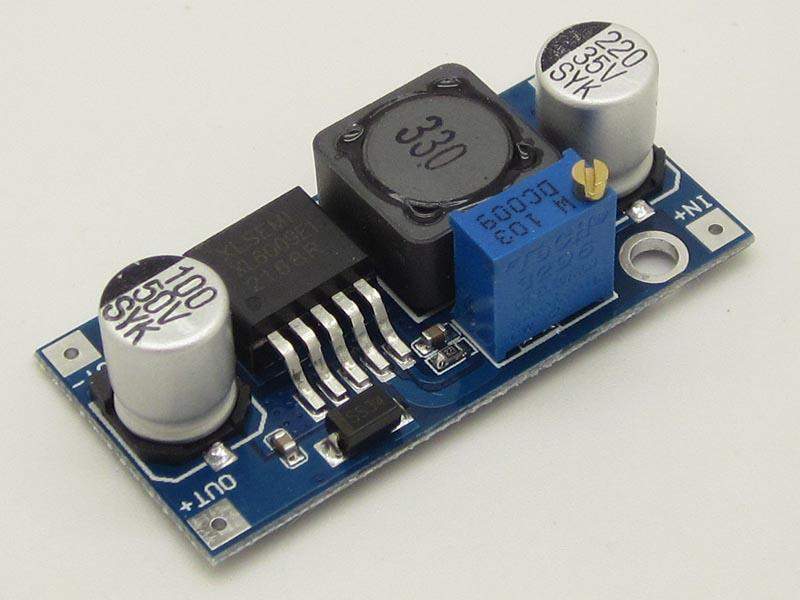

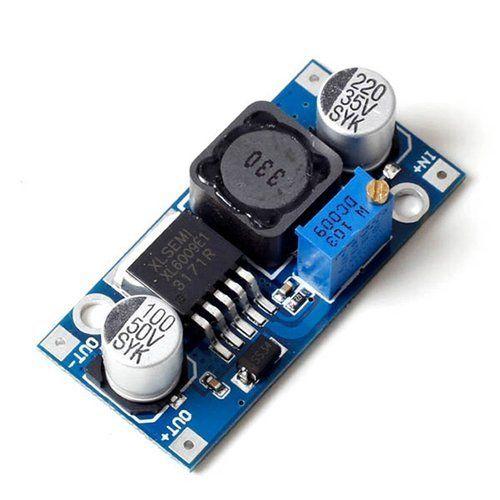

XL6009 DC-DC Step-Up Module with Adjustable Booster Power Supply Module

PRODUCT OVERVIEW:

• The performance is much higher than the LM2577.

• Non-isolated Boost converter.

• It has a non-synchronous rectifier.

• Small and Handy voltage regulator module.

• Built-in Soft-Start Function

• Built-in Thermal Shutdown Function

• Built-in Current Limit Function

• EN PIN TTL shutdown capability



The boost converter is used to "step-up" an input voltage to some higher level, required by a load. This unique capability is achieved by storing energy in an inductor and releasing it to the load at a higher voltage.

This XL6009 DC-DC Step-up converter module is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency.

The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance.

It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%.

High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller.



PRODUCT APPLICATIONS

• EPC / Notebook Car Adaapter

• Automotive and Industrial Boost / Buck-Boost / Inverting Converters

• Portable Electronic Equipment

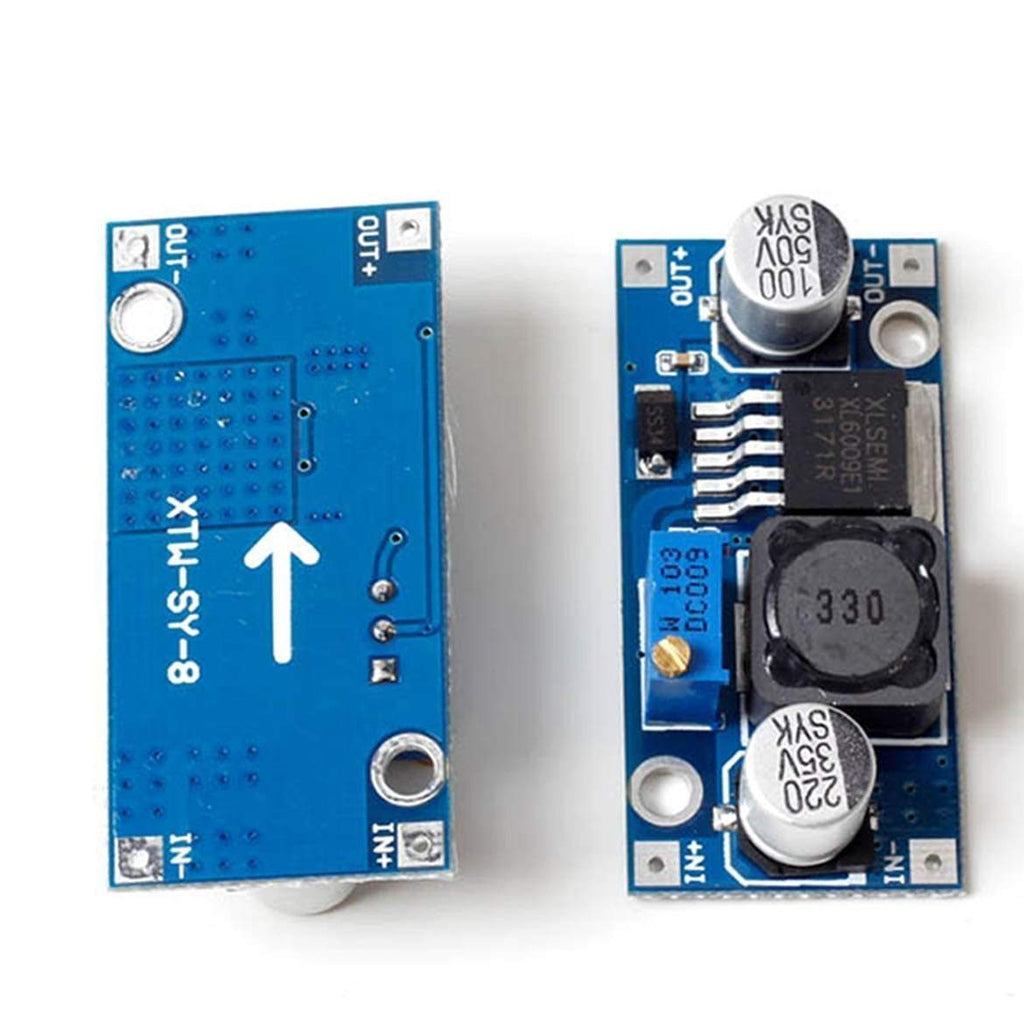

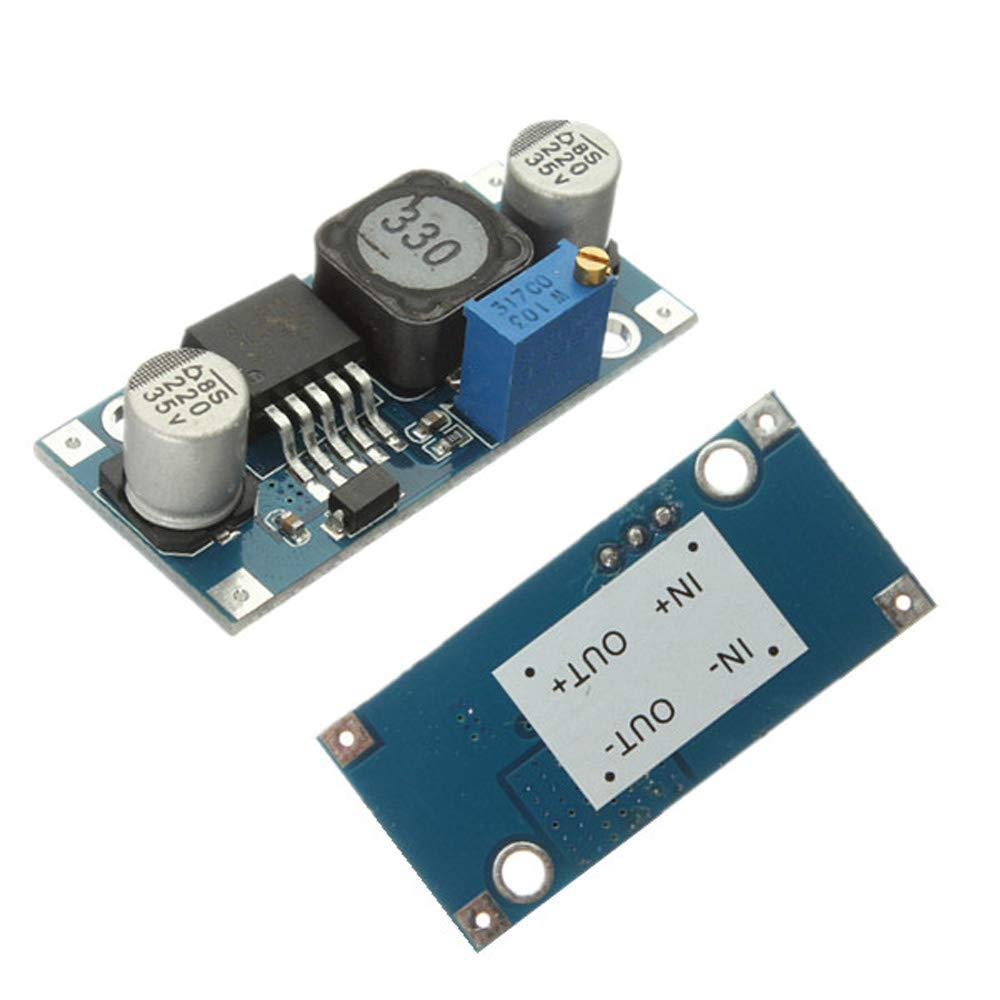

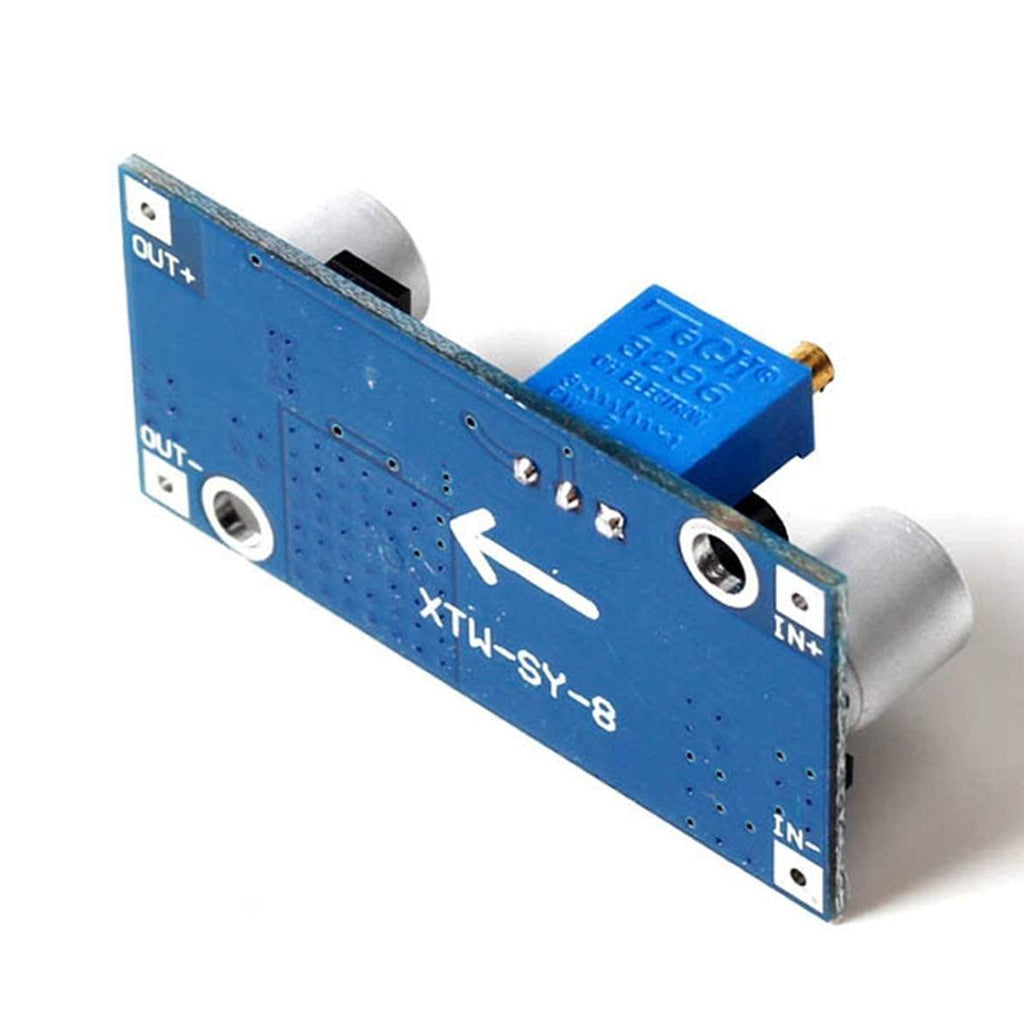

PIN -

• IN+ input positive

• IN- input negative

• OUT+ output positive

• OUT- output negative
