- It is an easy USB interface. This allows interface with USB as this is like a serial device.
- The chip on the board plugs straight into your USB port and supports on your computer as a virtual serial port.
- It is easy-to-find the micro controller brain which is the ATmega328 chip.
- It is a 16 MHz clock which is fast enough for most applications and does not speed up the micro controller.
- It is very convenient to manage power inside it and it had a feature of built-in voltage regulation. This can also be powered directly off a USB port without any external power.
- It has a 32 KB of flash memory for storing your code.
- An on-board LED is attached to digital pin 13 to make fast the debugging of code and to make the debug process easy.
- It has a button to reset the program on the chip.
ATmega328 (SMD) – Interface CH340G
|Input Voltage (limit)||
|Analog I/O Pins||
|Digital I/O Pins||
14 (of which 6 provide PWM output)
|PWM Digital I/O Pins||
|DC Current for 3.3V Pin||
|DC Current per I/O Pin||
2 KB (ATmega328)
1 KB (ATmega328)
32 KB (ATmega328) of which 0.5 KB used by bootloader
|Power Supply Option||
DC Jack or USB
|On Board LEDs||
On/Off, L (PIN 13), TX, RX
|Operating Temperature (°C)||
-40 to +90
|Dimensions in mm (LxWxH)||
75 x 54 x 12
12 × 8 × 4 cm
Sample Text For Testing

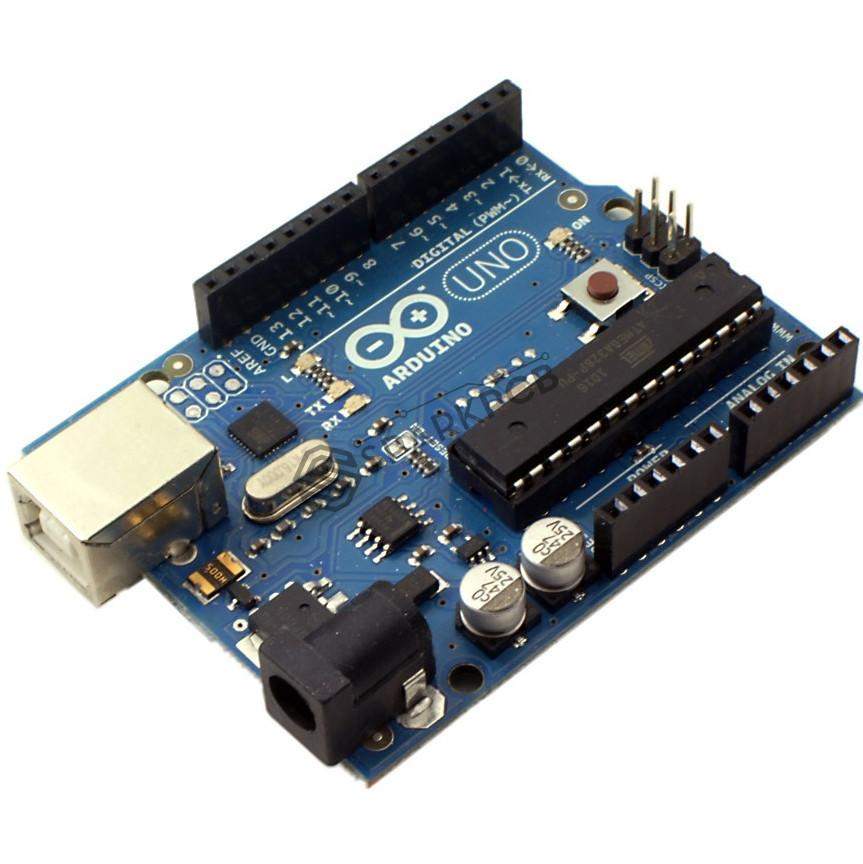

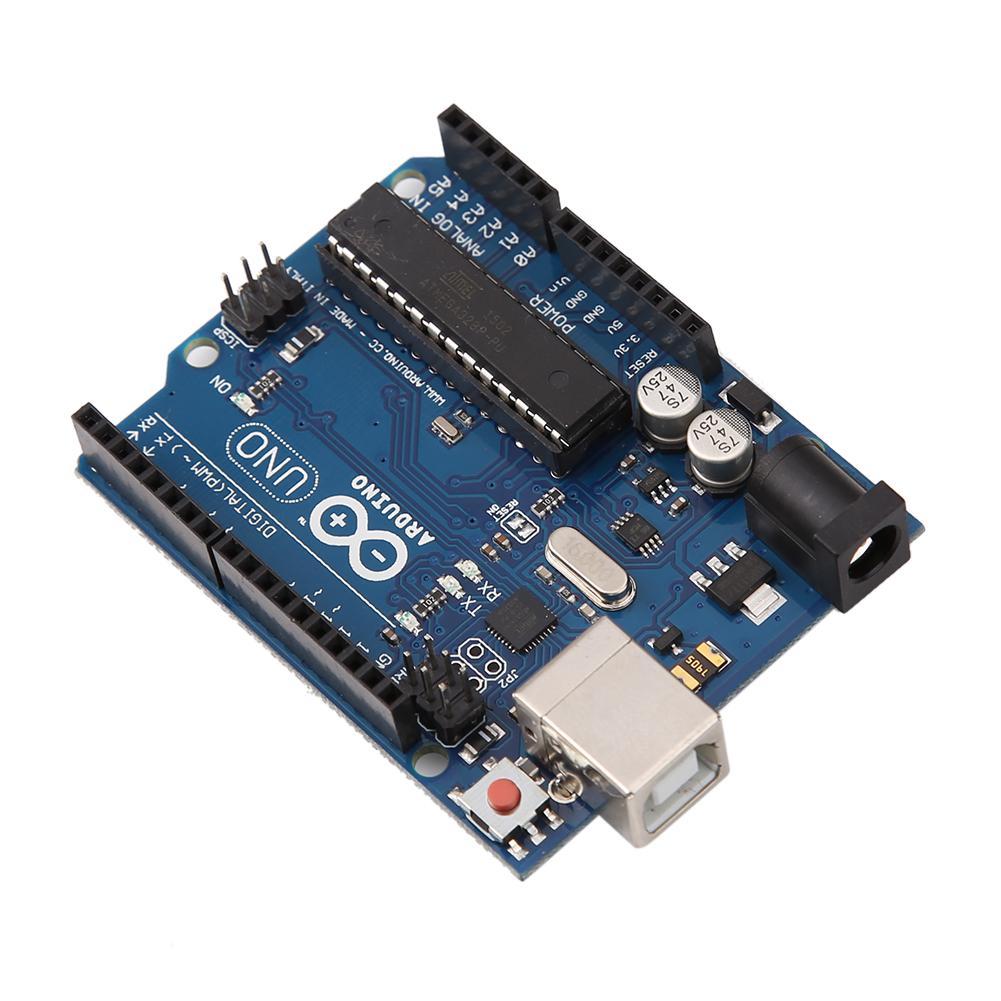

Arduino UNO has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started
More about Arduino Uno
- Microcontroller Chip - ATmega328P
- Operating Voltage - 5 V
- Input Voltage (Recommended) - 7-12V
- Analog I/O Pins - 6
- Digital I/O Pins - 14 (of which 6 provide PWM output)
- PWM Digital I/O Pins - 6
- Clock Speed - 16 MHz
- Flash Memory - 32 KB (ATmega328P) of which 0.5 KB used by bootloader
- SRAM - 2 KB (ATmega328P)
- EEPROM - 1 KB (ATmega328P)
- DC Current for 3.3V Pin - 50 mA
- DC Current per I/O Pin - 20 mA
- On-Board LEDs - Yes
- Operating Temperature (°C) : -10 to 60
- Weight (gm) - 25
- Length (mm) - 68.6
- Width (mm) - 53.4
- Height (mm) - 12.5
I never get my order
I delivery boy come at home but he fotgot to the parcel he said it will deliver you tomorrow but it's 6 day 😡

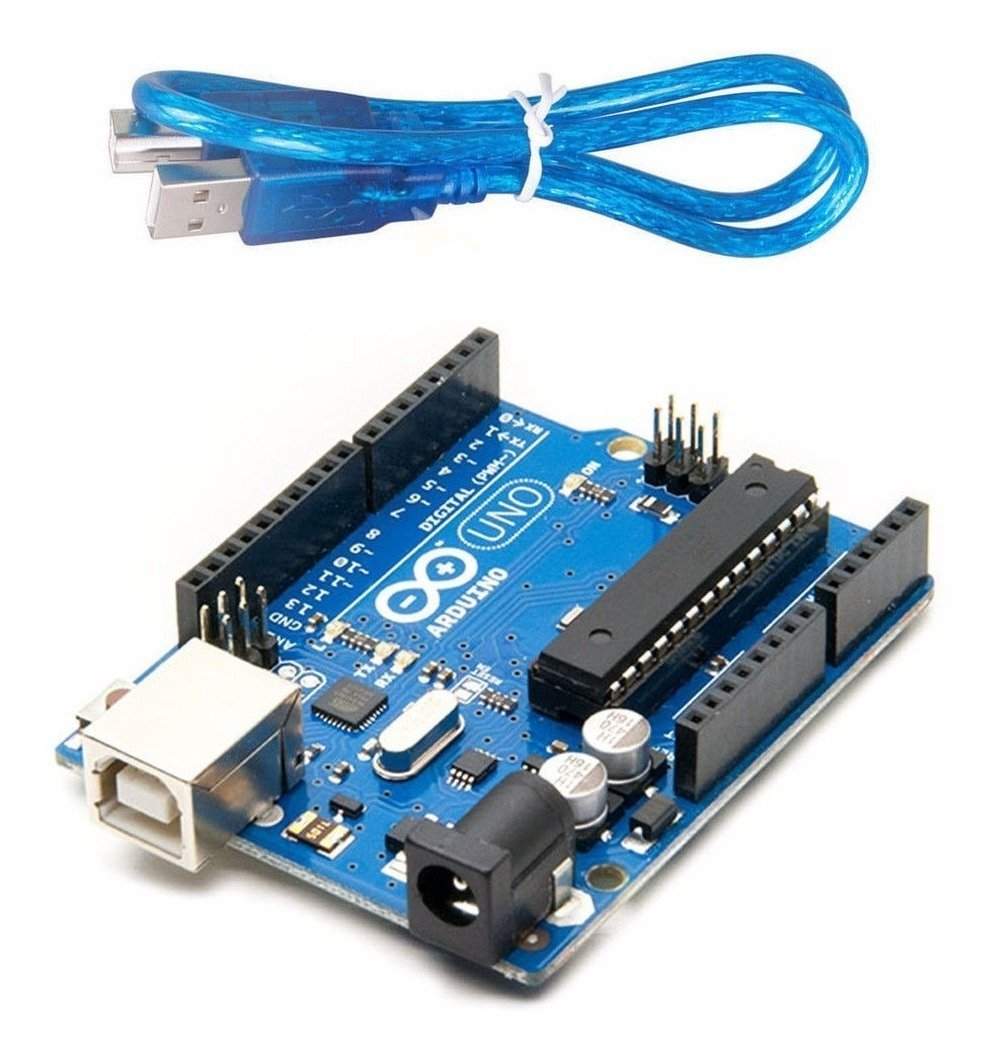

Arduino Uno R3 Development Board ATmega328P With USB Cable
