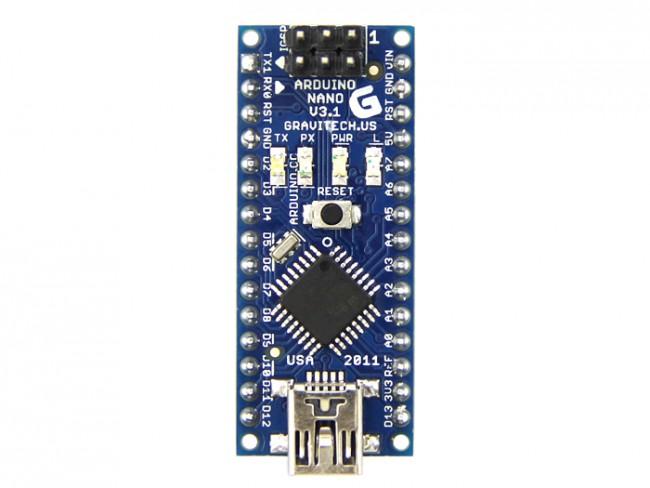

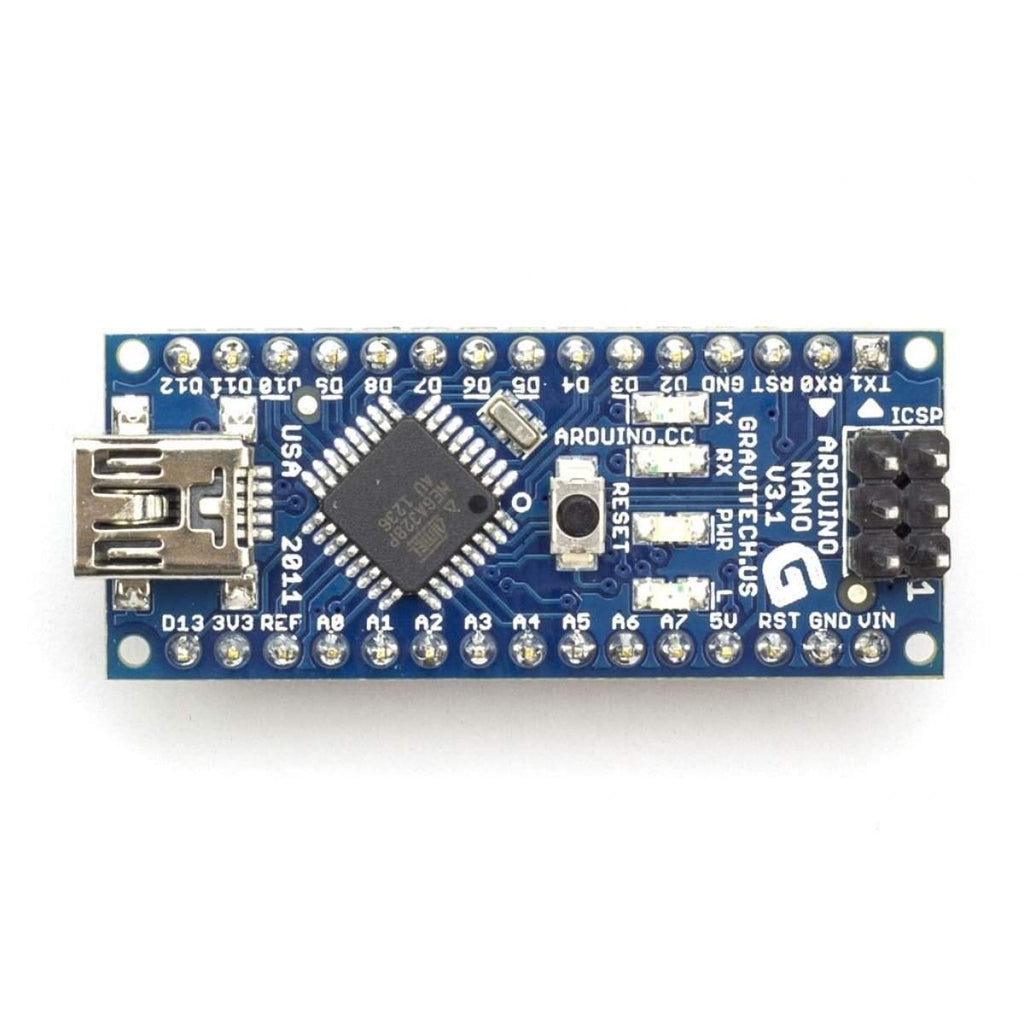

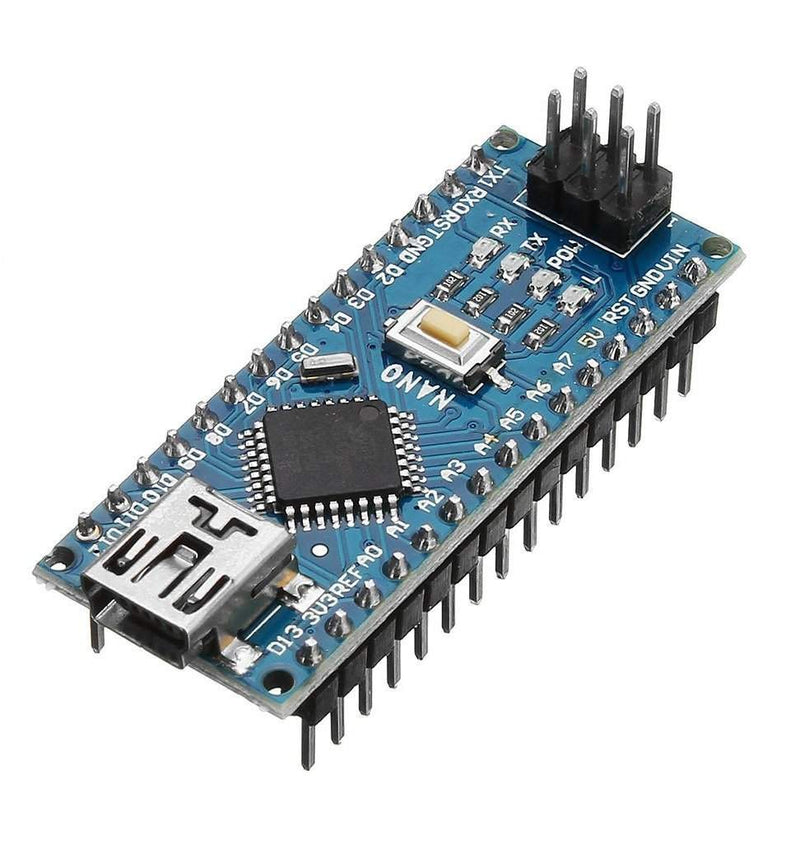

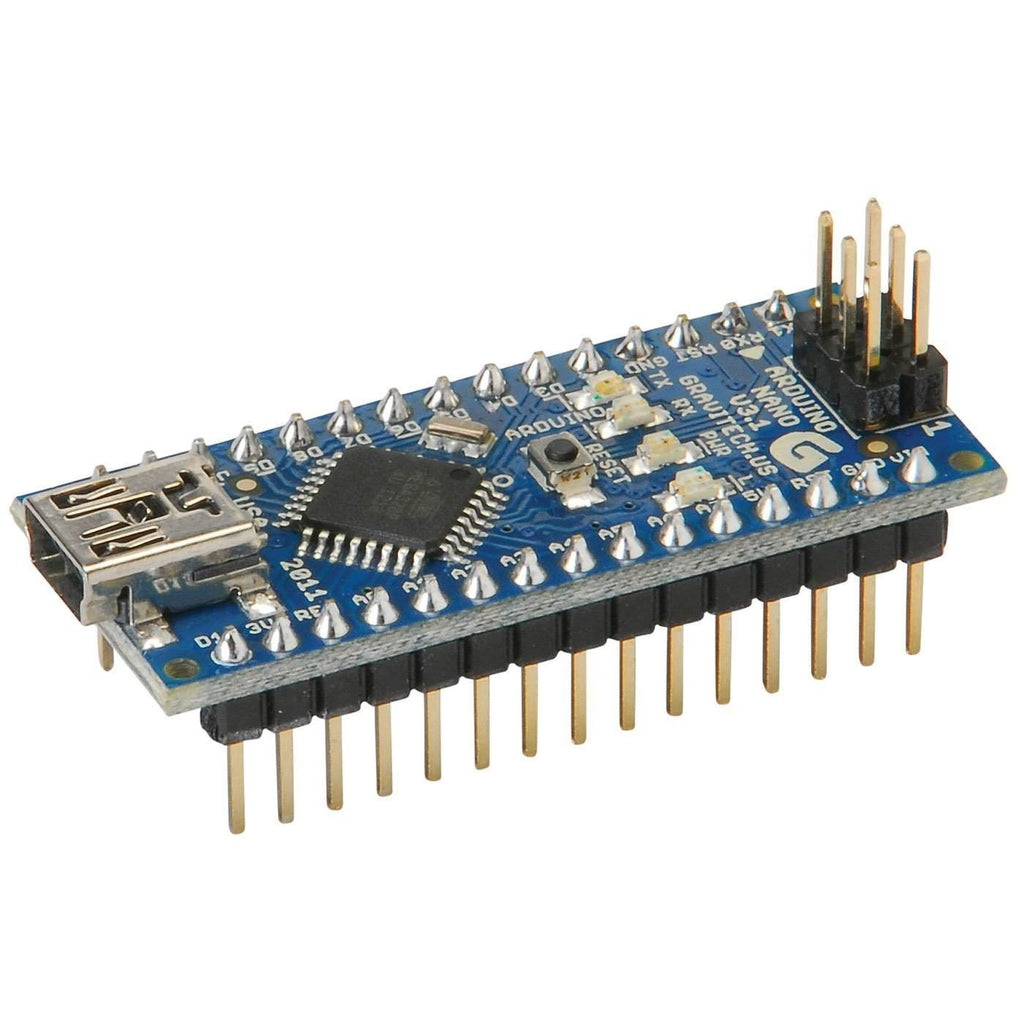

Arduino Nano V3 ATMEGA328 Compatible Board With Soldered Header For Arduino projects (Soldered) W/O Cable

PRODUCT OVERVIEW:

• Its has a number of facilities for communicating with a computer, another Arduino, or other micro-controllers


• Input Voltage: 7-12 V


• Digital I/O Pins: 22 (6 of which are PWM)


• PWM Output: 6


• Power Consumption : 19 mA


• PCB Size : 18 x 45 mm


• Weight: 7g


• Product Code: A000005

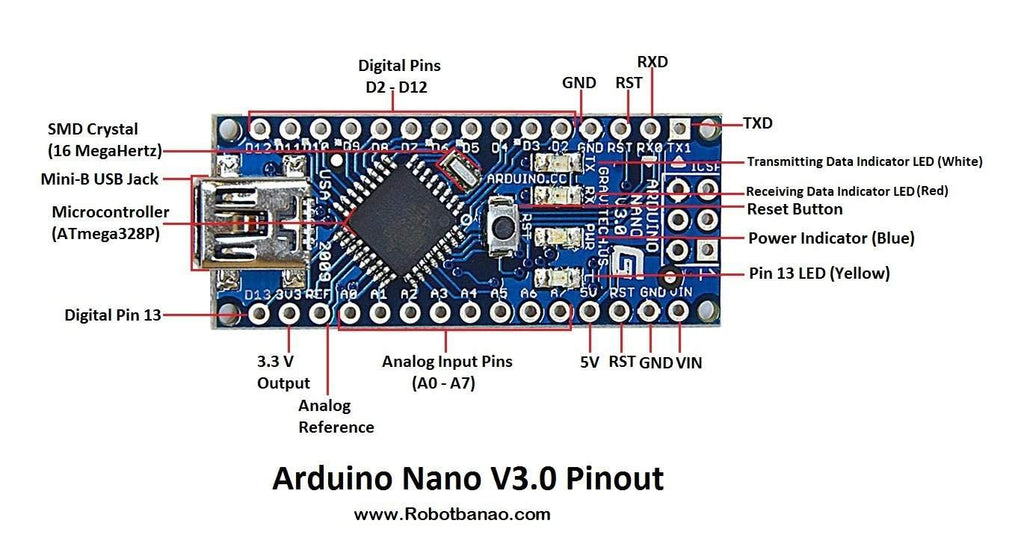

The Arduino Nano is a compact board similar to the UNO.

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328P (Arduino Nano 3.x). It has more or less the same functionality of the Arduino Duemilanove but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.

POWER -

The Arduino Nano can be powered via the Mini-B USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected for the highest voltage source.

MEMORY -

The ATmega328 has 32 KB, (also with 2 KB used for the bootloader. The ATmega328 has 2 KB of SRAM and 1 KB of EEPROM.

INPUT & OUTPUT -

Each of the 14 digital pins on the Nano can be used as an input or output, using pinMode(), digitalWrite(), and digitalRead() functions. They operate at 5 volts. Each pin can provide or receive a maximum of 40 mA and has an internal pull-up resistor (disconnected by default) of 20-50 kOhms. In addition, some pins have specialized functions.
