Communication : The Arduino Nano has a number of facilities for communicating with a computer, another Arduino, or other micro-controllers
- Input Voltage : 7-12 V
- Digital I/O Pins : 22 (6 of which are PWM)
- PWM Output : 6
- Power Consumption : 19 mA
- PCB Size : 18 x 45 mm
- Weight : 7g
- Product Code : A000005
|Operating Voltage (VDC)||
7 to 12 V
|Power Consumption (Watt)||
|Analog I/O Pins||
|Digital I/O Pins||
|PWM Output Pins||
|DC Current per I/O Pin (mA)||
|Dimensions (mm) LxWxH||
6 × 5 × 3 cm

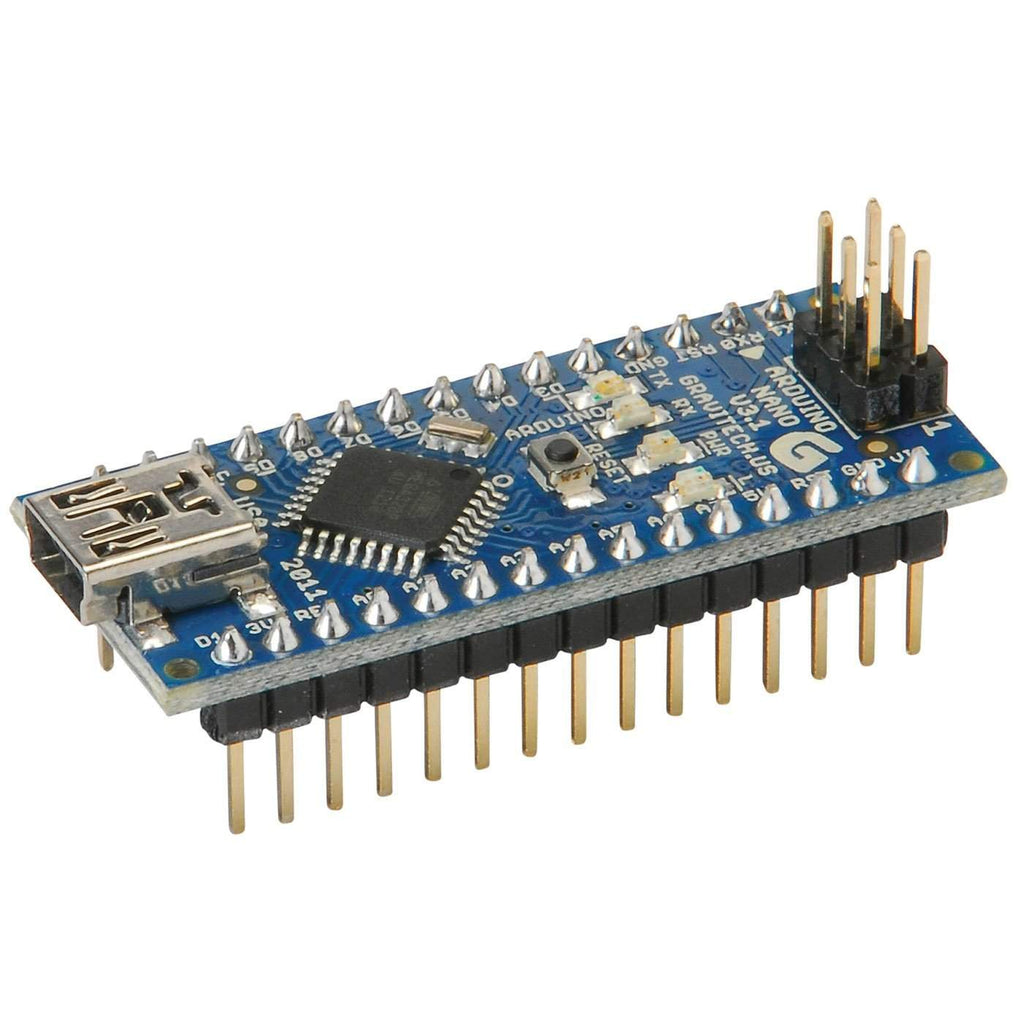

The Arduino Nano is a compact board similar to the UNO.

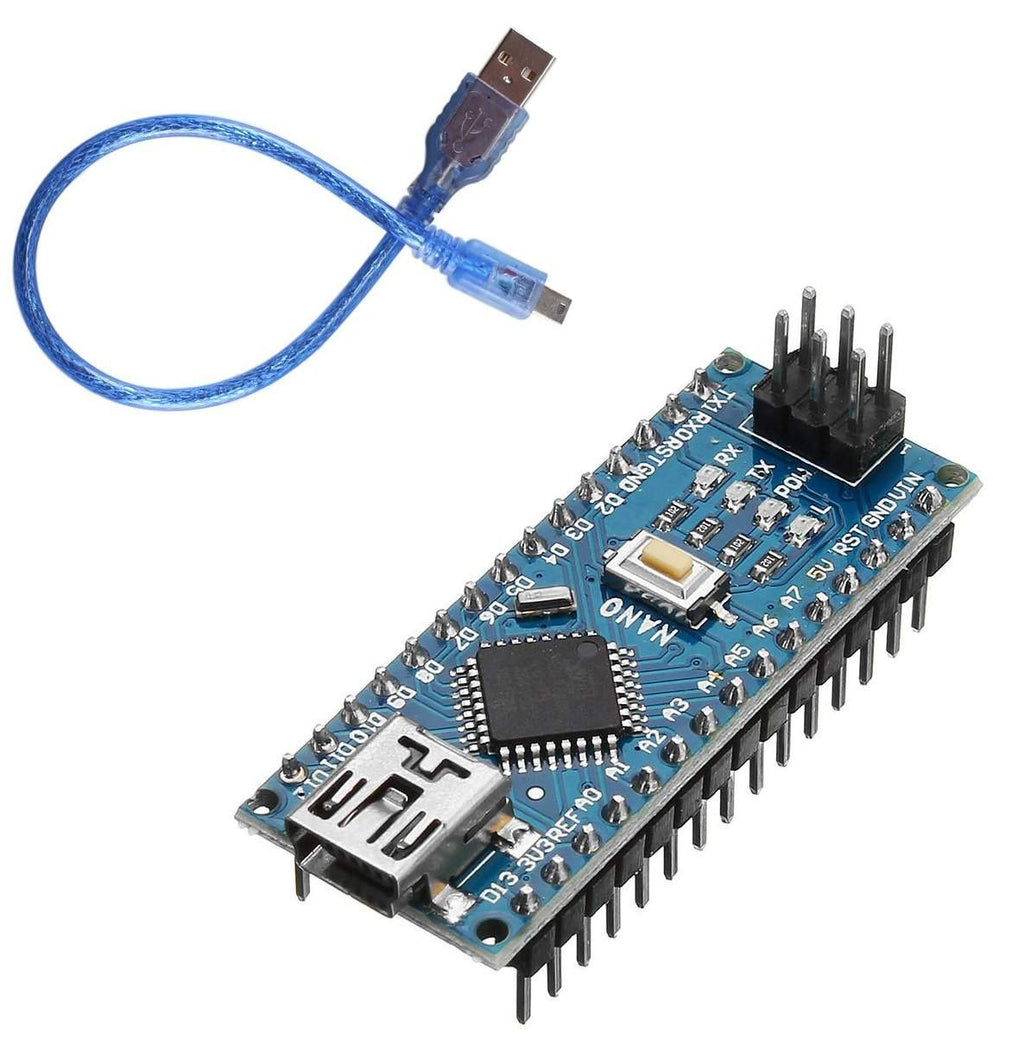

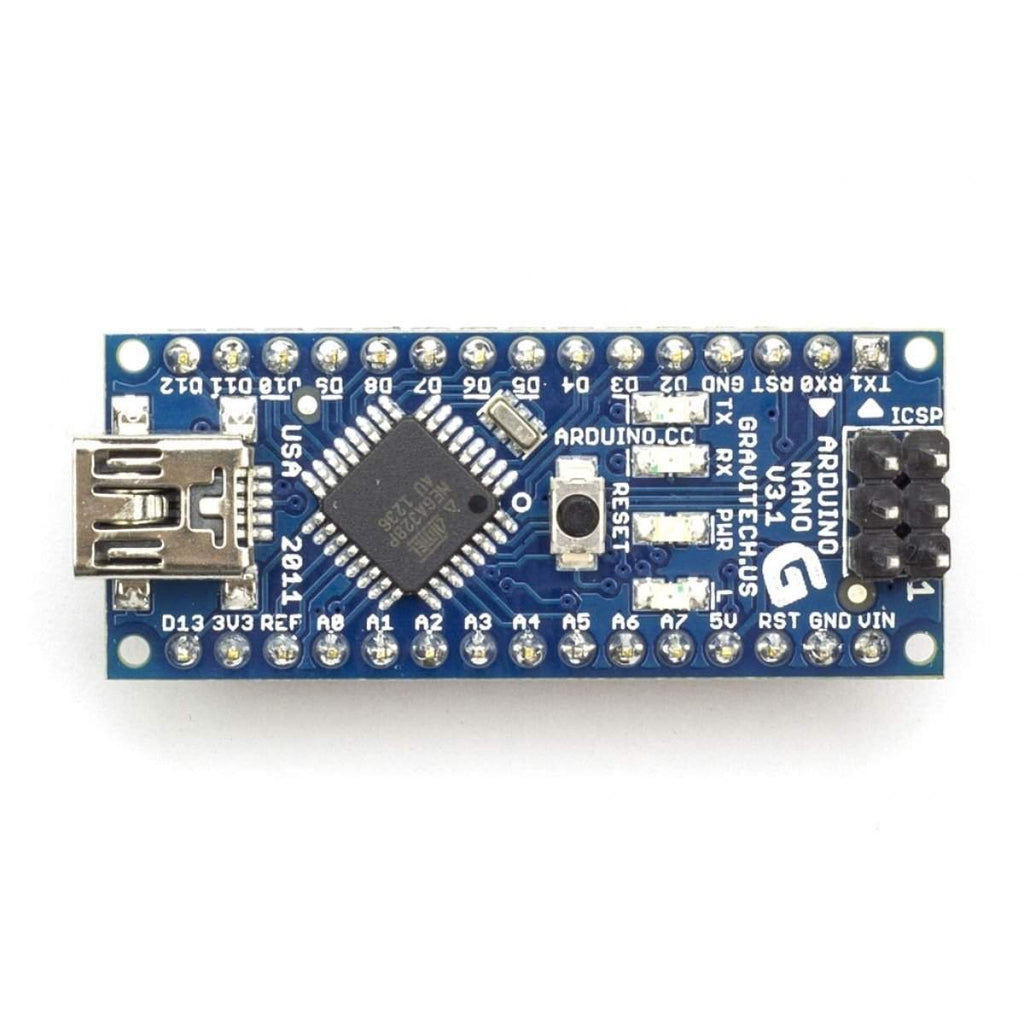

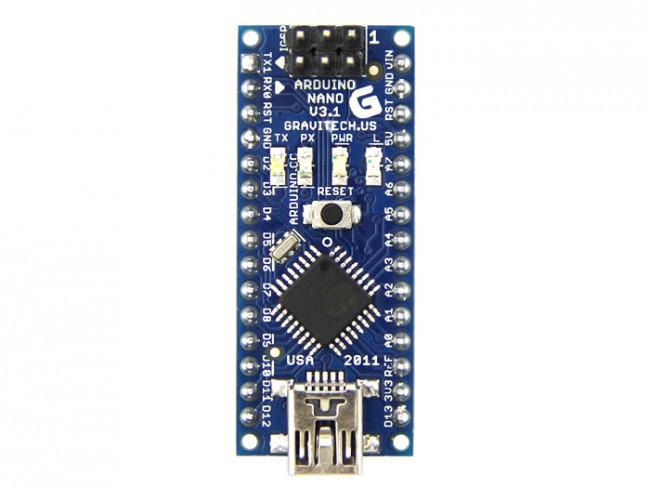

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328P (Arduino Nano 3.x). It has more or less the same functionality of the Arduino Duemilanove but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.
The Arduino Nano can be powered via the Mini-B USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected for the highest voltage source.
The ATmega328 has 32 KB, (also with 2 KB used for the bootloader. The ATmega328 has 2 KB of SRAM and 1 KB of EEPROM.

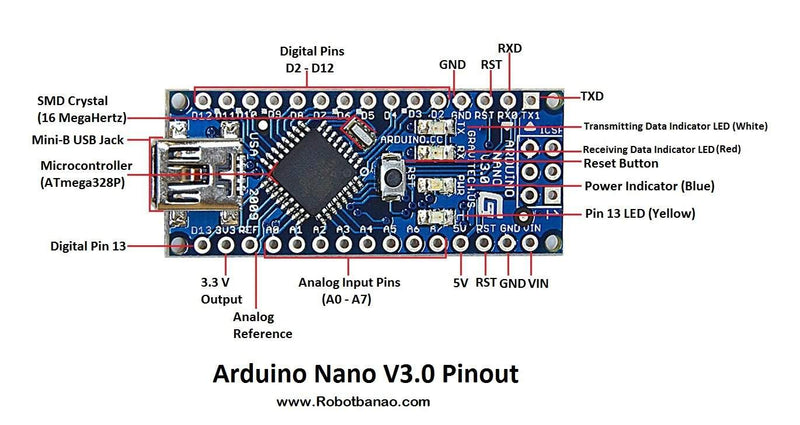

INPUT & OUTPUT -
Each of the 14 digital pins on the Nano can be used as an input or output, using pinMode(), digitalWrite(), and digitalRead() functions. They operate at 5 volts. Each pin can provide or receive a maximum of 40 mA and has an internal pull-up resistor (disconnected by default) of 20-50 kOhms. In addition, some pins have specialized functions.
Arrived today only and happy with the product.
it doesn't have DC power supply otherwise a great product.
Works as expected , good inbuilt quality.
Value of money. For new user unable to upload program but problem resolved selecting old bootloader option in tools.works good.
Don’t buy this product they are not giving cable
