PAM8610 Dual Channel Stereo Digital Audio Amplifier Module With Volume Control is a conservative double sound system, class D, high power and high productivity (90%) computerized sound enhancer or digital audio amplifier, which depends on the PAM8610 intergrate chip. The PAM8610 can work with 7V to 15V power supply, But 12V DC is suggested. The ostensible power is 10W by applying a 8 ohm power speaker on the result, however the most extreme power is 15W per channel and happens by applying a 4 ohm power speaker for each Channel. The module has a short out safeguarding, overheating and over-current security. With low THD+N (0.1%), low EMI, and great PSRR particular, the PAM8610 has a top notch sound propagation on its recurrence reaction 20Hz to 15kHz range. The DC volume changes the result are channel less, so it's no need any low pass channel and the speakers straightforwardly interface with the intensifier yield, which bring about minimal expense and size. with high proficiency.
IC :- PAM8610 Input voltage:- 6V ~ 15V (self-protection) Input Voltage (Recommended):- 12V Output Power:- 2x15W (at 4Ω Load), 2x10W (at 8Ω Load) Class Type:- D Input Impedance:- 20MΩ Output Impedance:- 4Ω, 8Ω Frequency Response: 20Hz-15KHz Speakers:- 10W ~ 100W Size:- 45mm x 48mm x 18mm

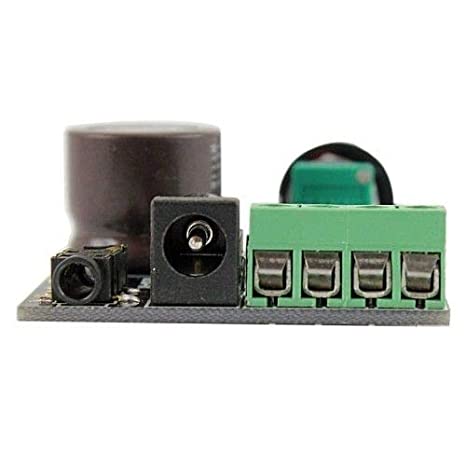

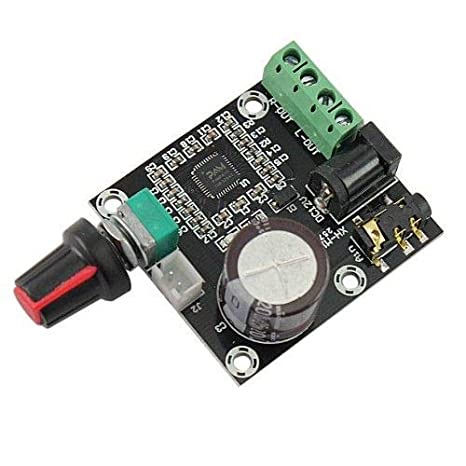

1 x XH-M120 PAM8610 Dual Channel Audio Amplifier Board
