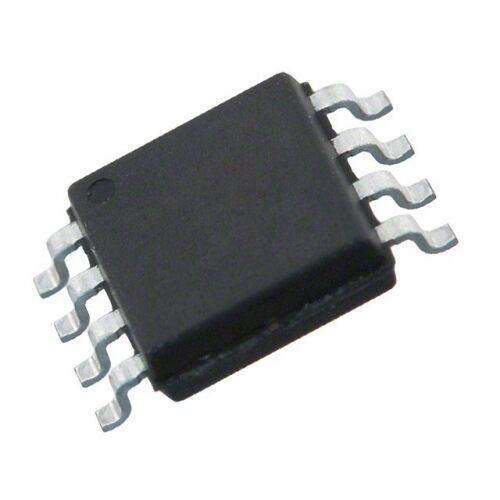

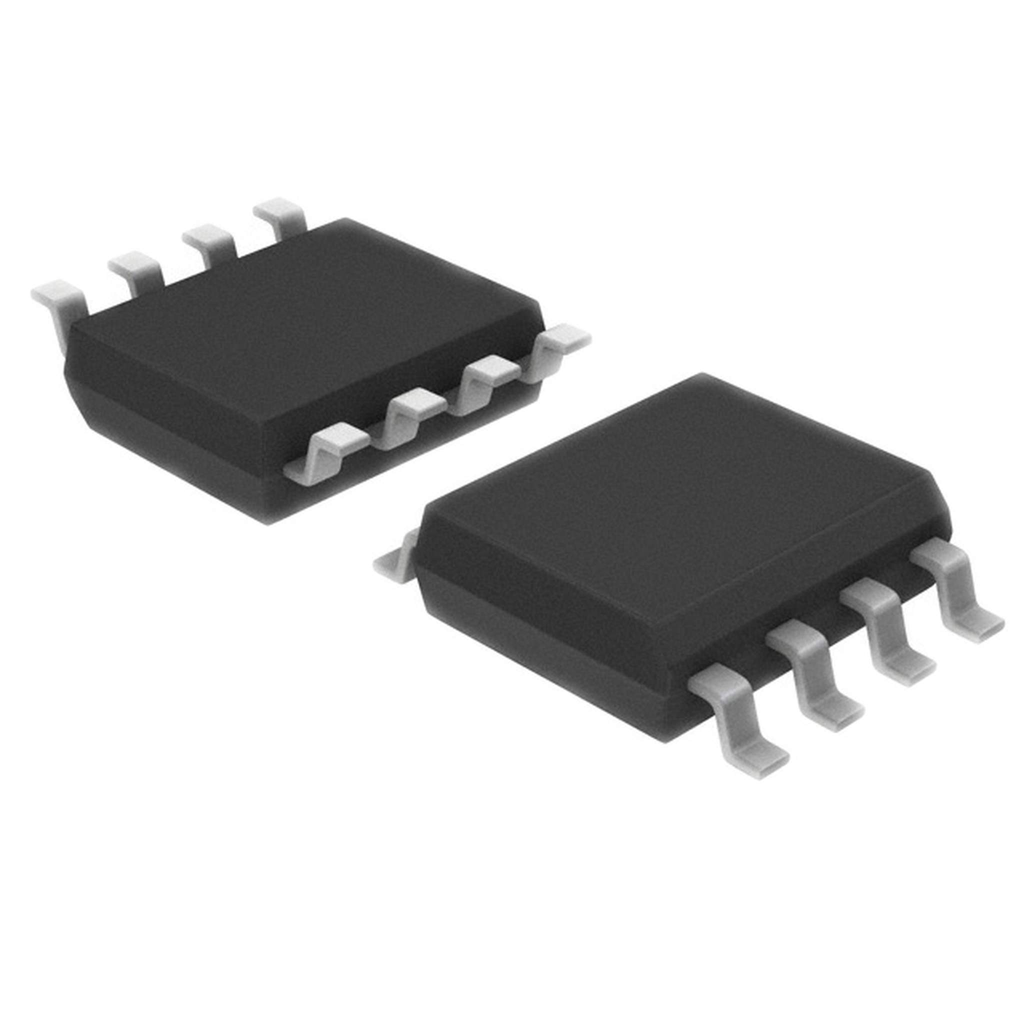

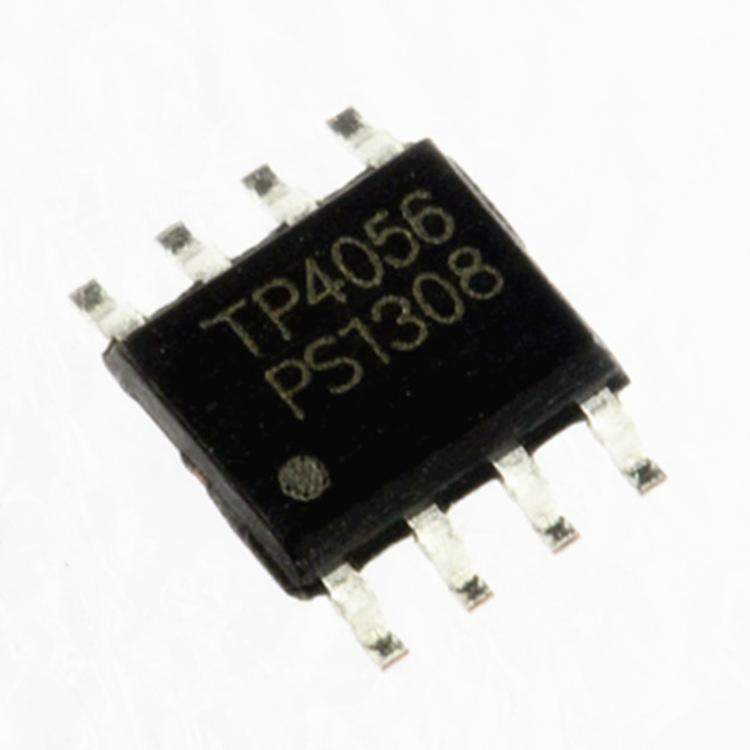

TP4056 IC – Standalone Lithium Ion Li-on Battery Charger

The TP4056 IC is a complete constant-current, constant-voltage linear charger for single cell lithium ion batteries. It comes in SOP package. And low external component count make the TP4056 ideally suited for portable applications. Furthermore, the TP4056 can work within USB and wall adapter.

No Blocking diode is required due to internal PMOSFET architecture and to prevent negative charge current circuit. It also has facility of thermal feedback. And so it regulates the charge current to limit the die temperature during high power operation or high temperature. Charge voltage can be programmed externally using single resistor. It terminates the charge cycle when the charging current drops to 1/10th of programmed current.

TP4056 IC also provides protection in form of current monitor, under voltage lockout, and automatic recharge. It has two states pins to indicate the charge termination and presence of input voltage.

• Programmable Charge Current up to 1000 mA
• Constant Current / Constant Voltage charger
• Used with single cell Lithium Ion battery
• Pre-set 4.2V charge voltage with 1.5% accuracy
• Automatic Recharge
• Input Supply Voltage: 0.3 V to 8 V (Minimum 5V for charging)
• BAT short circuit protection: continuous

Package Includes:

1 X TP4056 SMD IC
