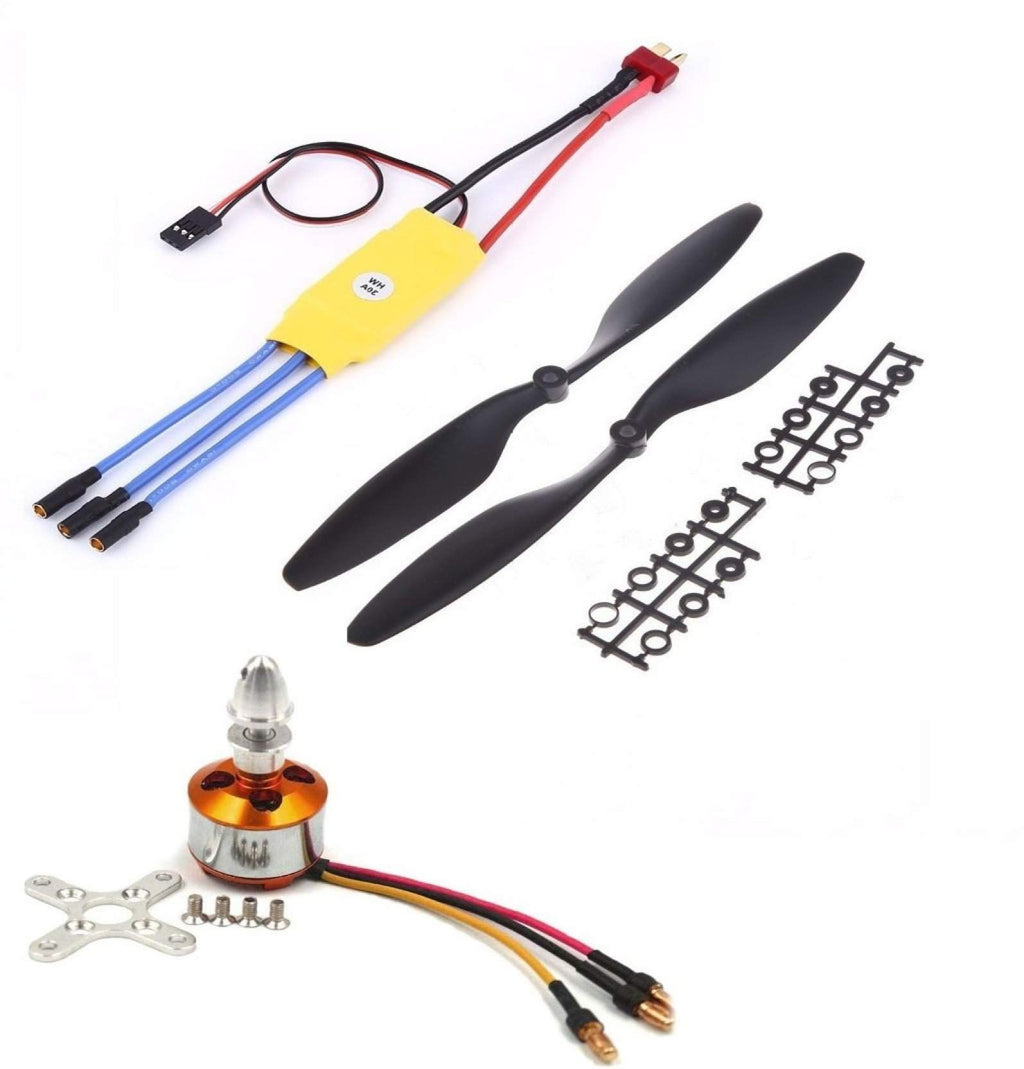

RC Combo Kit 30A Esc + 1045 Propeller Set + 1000KV Brushless Motor (BLDC)

PRODUCT OVERVIEW:

• The steel design is capable of withstanding competitional conditions.


• Lightweight design makes them suitable for a wide range of Quad-copter and Hexacopter Frames.


• Compact size.


• Offers great performance and value for money.


• Smooth throttle response for best RC experience.


• ESC used has an On-Board BEC.


• Faster and Better speed control.

--

This is the 1000 KV BLDC motor + ESC + propeller for drones. This set is recommended to the newbie drone enthusiast and the wise pilots who are not willing to ruin the motors at the test stages.

Even when they are available at a price everyone can afford, their shocking performance is what makes everyone like them (except A2212, at this price no Brush-less Motor in the Market will give you the thrust around 700gm in fly). The low price of this motor is recognized with its low-quality bearings and magnets. This motor produces noise and vibration. Also, they become warm while operating at high speed. But all these shortfalls are negligible and doesn’t affect the performance of the motor.

Flashing this 30A ESC is so easy with the help of quickly available firmware, making this 1000 KV BLDC Motor and ESC combo ready to go !!!! The 30A ESC comes with male and the Brush-less Motor comes with female 3.5mm bullet connector.

The A2212 1000 KV Brush-less Motor for Drone equips shaft of 3.7mm. This motor is equipped with the solid metal case which makes it reliable and durable in the crash.

Specification :

Brush-less Motor

• Model: A2212


• Motor KV (RPM/V): 1000


• LiPO Batteries: 2S-3S


• Shaft Diameter (mm): 3.17


• Max. Efficiency Current: 4-10A


• Maximum Watts (W): 150


• No-Load Current: 0.5A @10V


• Internal Resistance (mΩ): 90


• Maximum Efficiency: 80%


• Poles: 14


• Length (mm): 27.5


• Width (mm): 27



30A ESC

• Constant Current: 30A


• Maximum Current: 40A @10S


• BEC: 3A


• LiPO Batteries: 2S-3S

1045 (10×4.5) SF Props

• Length : 10″.


• Pitch: 4.5″.


• Weight: 14 gm.


• Shaft diameter: 6 mm.


• Total length : 10 inch / 254 mm.


• a set of reducers (2.75, 3, 3.17, 4, 4.70, 5, 6, 6.25 mm).


• Epoxy resin cover.


• Very strong and lightweight.


• Color: Black.
