Description
PRODUCT OVERVIEW:
- Wide Working Voltage Range: DC 4.5V- 20V
- Current Drain: <60uA
- Detection Angle: <140°
- Detection Distance: 3 to 7m (can be adjusted)
- Blockade time: 2.5s (Default)
- Work temperature: -20-+80°C
- Infrared Sensor with Control Circuit Board
- The Sensitivity and Holding Time Can be Adjusted
- Blockade time: 2.5s (Default)
- Sensitive Setting: Turn to Right, Distance Increases (About 7M); Turn to Left, Distance Reduce (About 3M)
- Time Setting: Turn to Right, Time Increases (About 200S); Turn to Left, Time Reduce (About 5S).
Specification
| Model |
PIR HC-SR501 |
| Operating Voltage (VDC) |
4.5 ~ 20 |
| Average Current Consumption (mA) |
0.06 |
| Distance Measuring Range (CM) |
300 ~ 700 |
| Output Type |
(High/ Low-level Signal) 3.3V TTL output |
| Dimensions (mm) LxWxH |
32 x 24 x 18 |
| Weight (gm) |
10 |
| Working Temperature Range (°C) |
-20 to 80 |
| Detection Angle |
<140° |
| Delay Time |
5 to 200s (Can be Adjusted, Default 5s +/- 3%) |
| Shipment Weight |
0.015 kg |
| Shipment Dimensions |
4 × 3 × 1 cm |
--

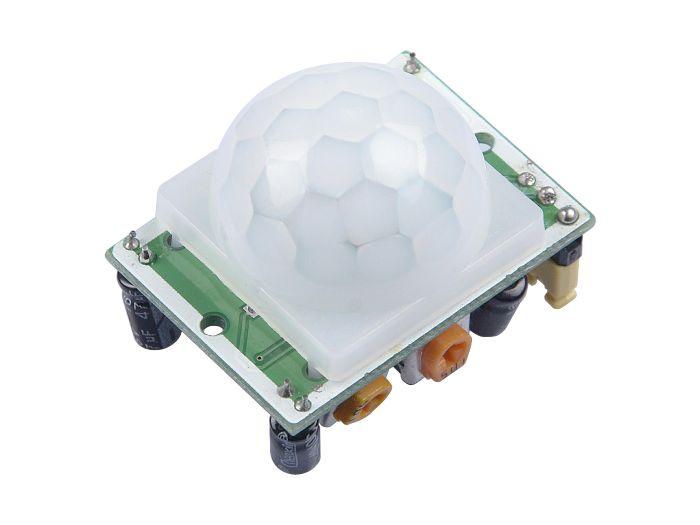

The PIR Motion Sensor Detector Module HC-SR501 allows you to sense motion. It is almost always used to detect the motion of a human body within the sensor’s range. It is often referred to using “PIR”, “Pyroelectric”, “Passive Infrared” and “IR Motion” sensor.

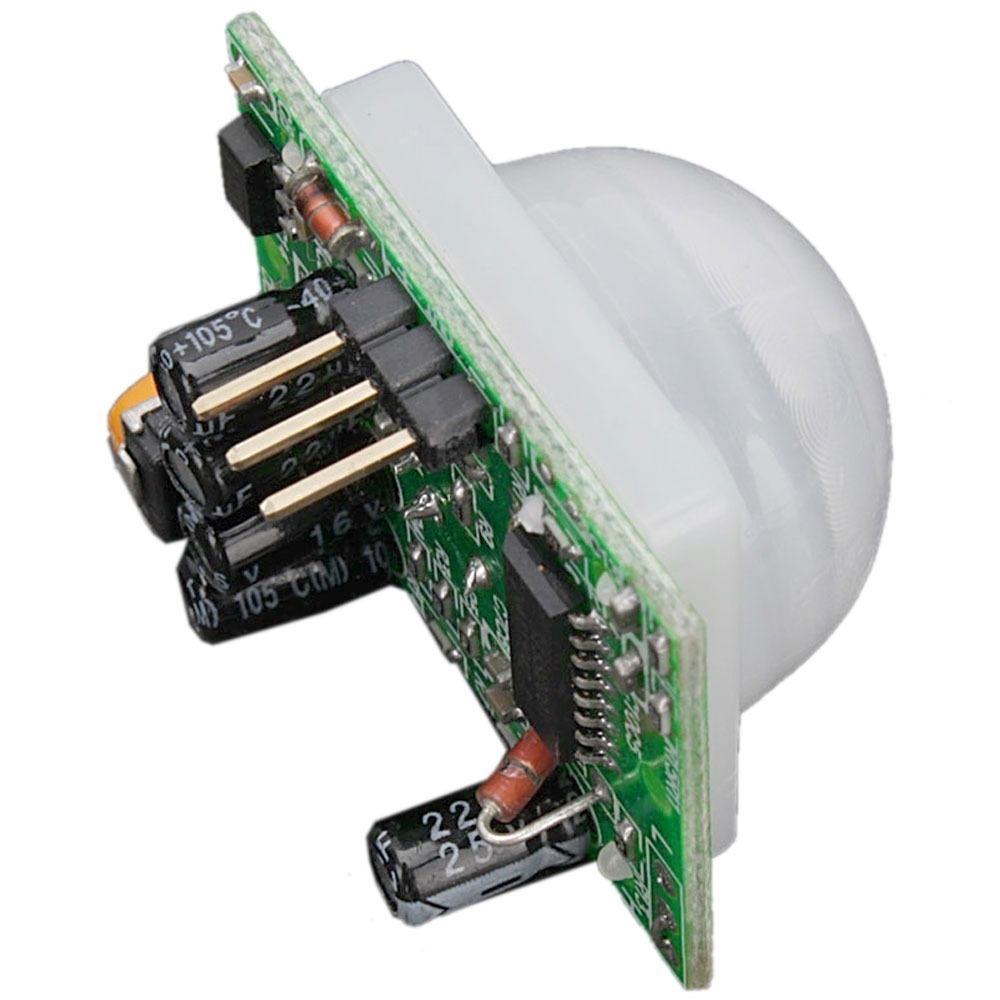

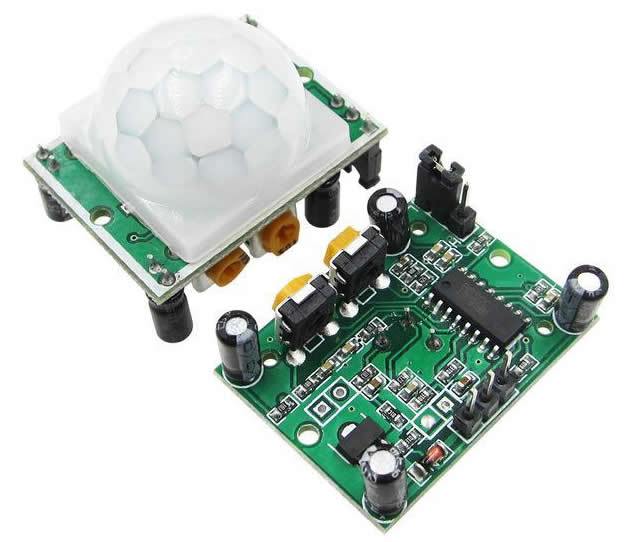

The module has an onboard pyroelectric sensor, conditioning circuitry, and a dome-shaped Fresnel lens. It has a delay time adjustment potentiometer and sensitivity adjustment Potentiometer. Repeat Trigger Selection Jumper is also available. Compatible with Arduino, raspberry pi, AVR, PIC, 8051, etc.
1 x PIR Motion Sensor HC-SR501 Motion Detector Pyroelectric Infrared Module
Country Of Origin: China
Imported and Marketed By:
Select Brands International Pvt Ltd
Indore, (M.P.)
