PAM8403 2x3W (3W+3W) Class D Digital Audio Amplifier Board Module 5V USB Power

PRODUCT OVERVIEW:

• Dual-channel stereo, high output power (3 w + 3 w powers @ 5V and 4 ohms load).


• Good sound quality.


• Double panel wiring solves crosstalk.


• Supermini design allows it to be easily placed in a variety of digital products.


• 3W Output at 10% THD with a 4ΩLoad and 5V Power Supply.


• Filterless, Low Quiescent Current, and Low EMI.


• Superior Low Noise.


• Short Circuit Protection.


• Thermal Shutdown

--

The PAM8403 5V Two-channel Stereo is a 3W+3W, class-D audio amplifier. Allowing it to achieve high-quality sound reproduction. The new filter-less architecture allows the device to drive the speaker directly, requiring no low-pass output filters, thus saving system cost and PCB area. With the same numbers of external components, the efficiency of the PAM8403 is much better than that of Class-AB cousins. It can extend the battery life, which makes it well-suited for portable applications.

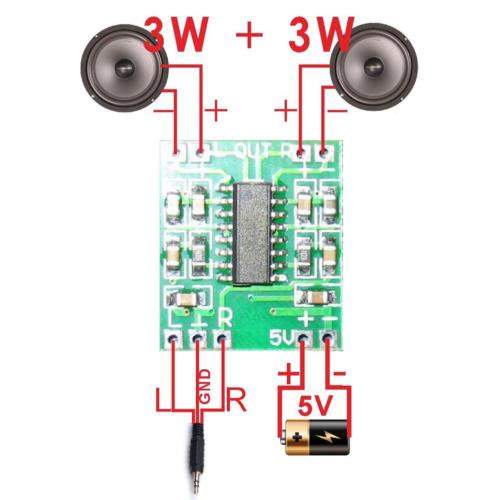

CIRCUIT DIAGRAM:

Application:

• Bluetooth Stereo Audio hands-free/headsets


• In robots that speak or generate sounds to indicate activities


• Portable Speakers


• LCD Monitors / TV Projectors


• Arduino or Raspberry Pi Game Machines


• Speaker Phones

Package Includes:

1 x PAM8403 5V Two-channel Stereo Mini Class-D Audio Amplifier.
