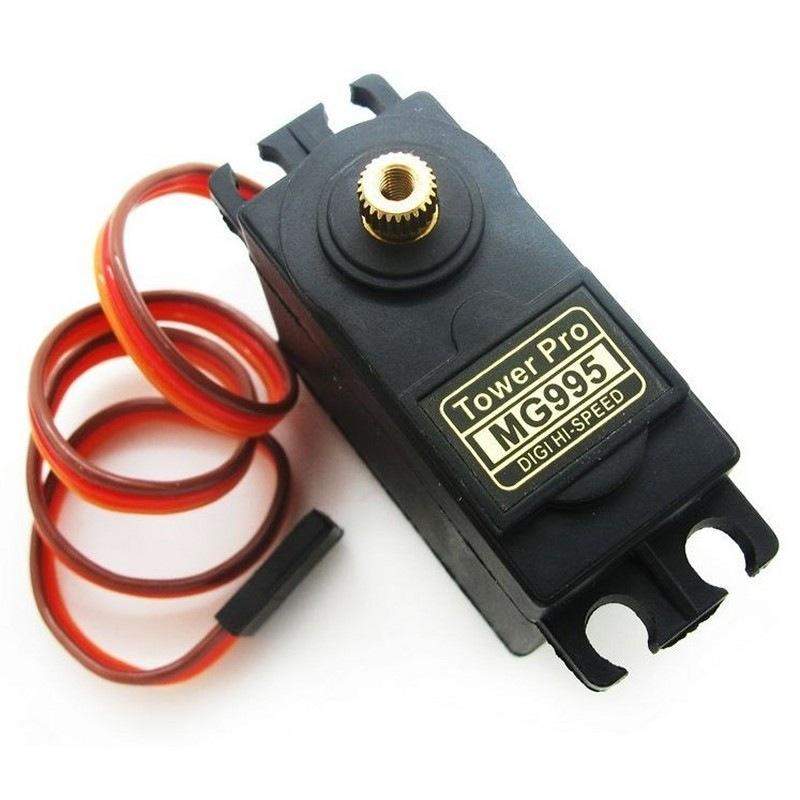

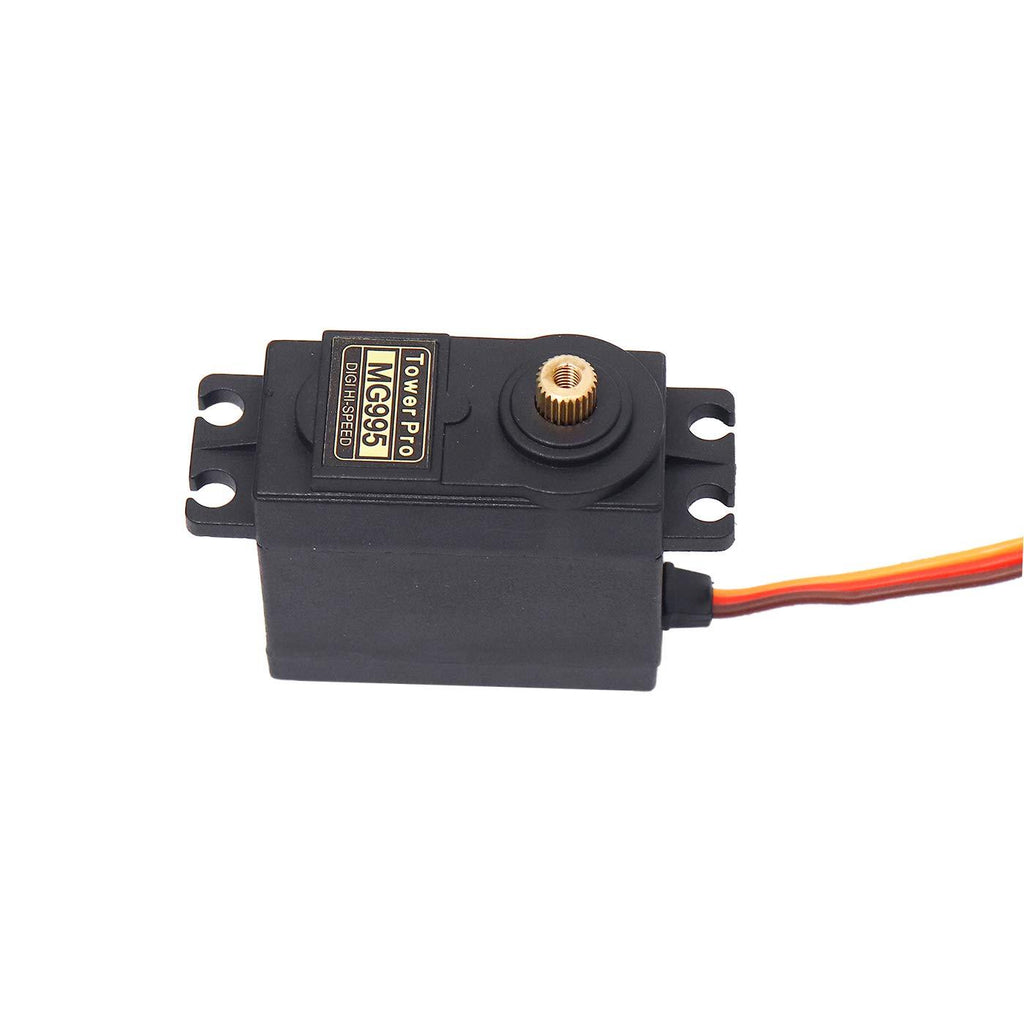

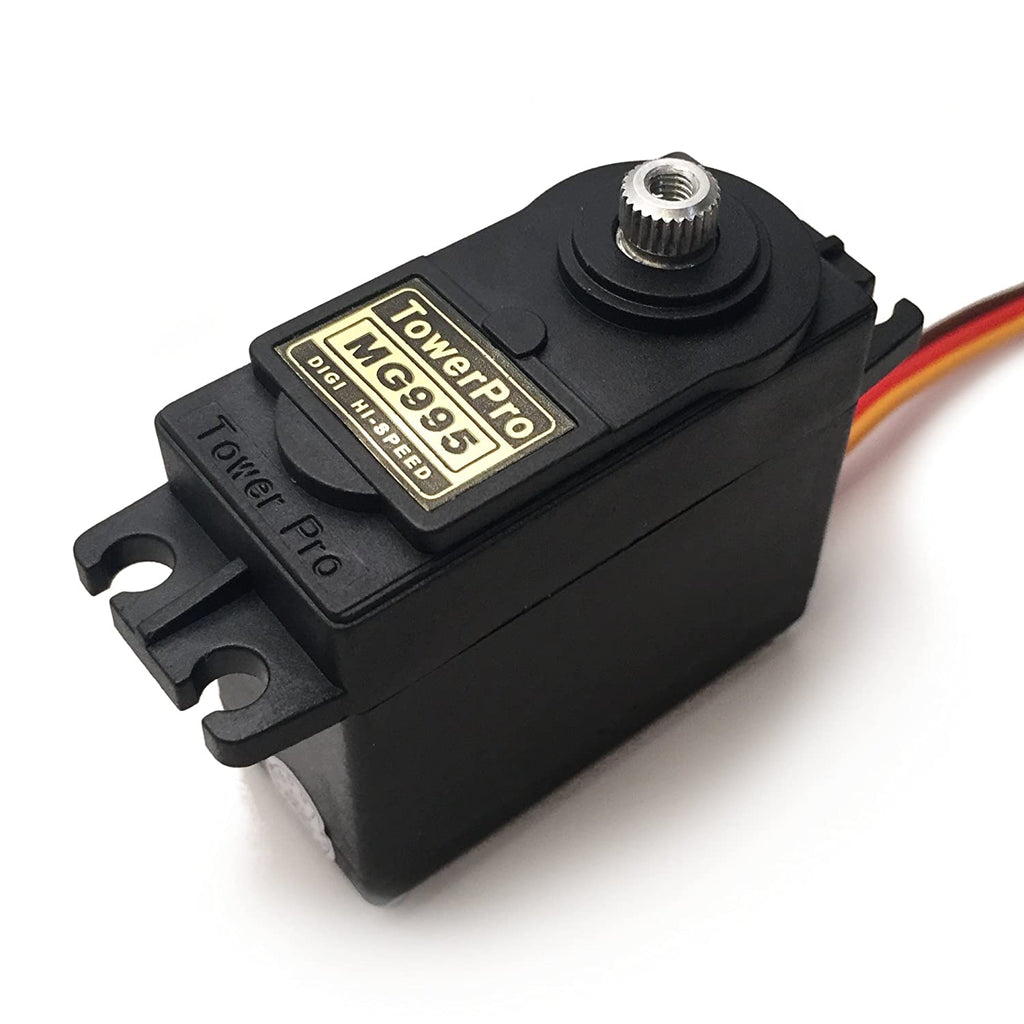

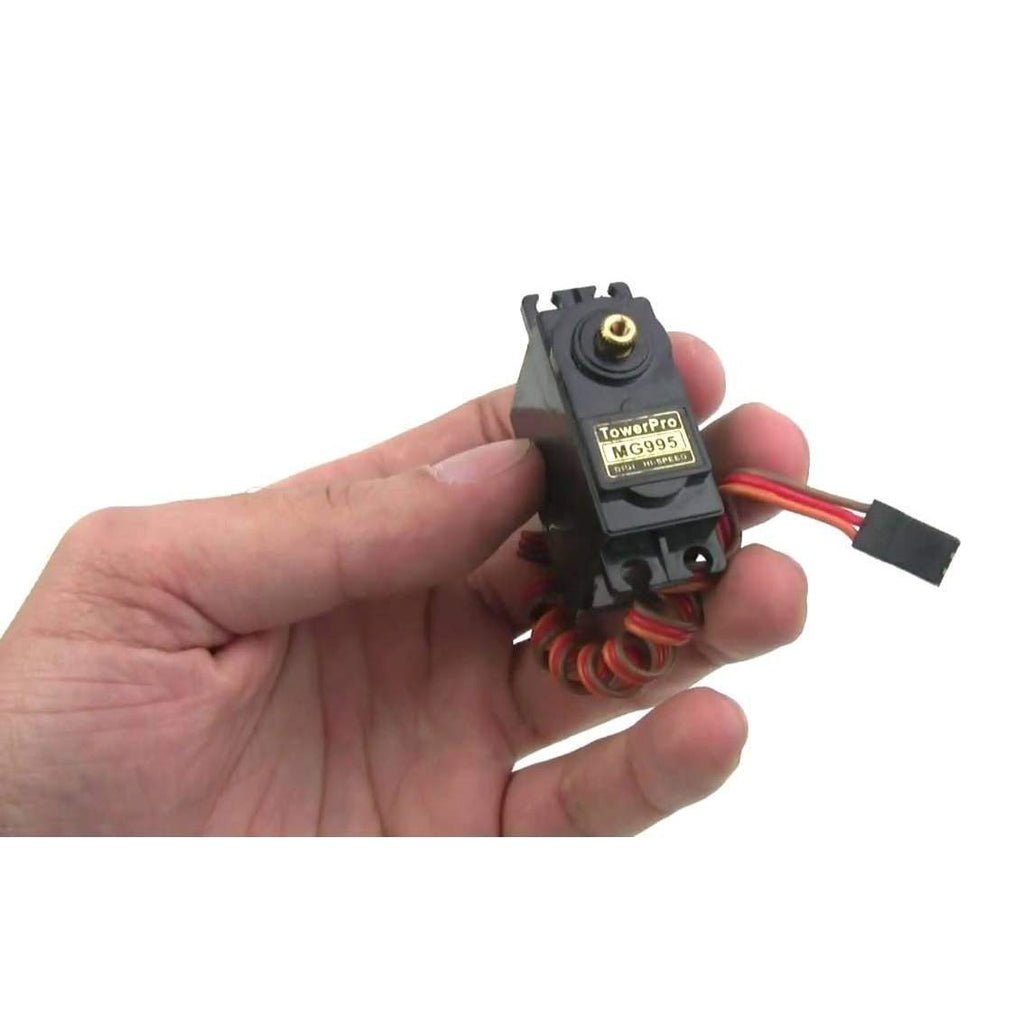

Servo MG995 Metal Gear High Torque Servo, Black - 180 Degree

PRODUCT OVERVIEW:

1. Model: MG995
2. Weight: 55 gm
3. Operating voltage: 4.8V~ 7.2V
4. Servo Plug: JR
5. Stall torque @4.8V : 13kg-cm
6. Stall torque @6.6V : 15kg-cm

MG995 is a digital metal gear high torque servo for airplane, helicopter, RC-cars from 10 to 6th scale truggy and monster, and many RC models.

The TowerPro MG995 High-Speed Digital Servo Motor rotates 90° in each direction making it 180° servo motor. It is a Digital Servo Motor that receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.

They are packed within a tight sturdy plastic case which makes them water and dust resistant which is a very useful feature in RC planes, Boats, and RC Monster Trucks, etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too.

Wire Description

RED – Positive

Brown – Negative

Orange – Signal

Specification:

Model	MG995
Weight(gm)	55
Operating Voltage (VDC)	4.8 ~ 7.2
Operating Speed @4.8V	20sec/60°
Operating Speed @6.6V	16sec/60°
Stall Torque @ 4.8V (Kg-Cm)	10
Stall Torque @6.6V (Kg-Cm)	12
Operating Temperature (°C)	-30 to 60
Dead Band Width ( μs)	1
Gear Type	Metal
Rotational Degree	180º
Servo Plug	JR
Cable Length (cm)	30
Length (mm)	40.5
Width (mm)	20
Height (mm)	44
Shipment Weight	0.059 kg
Shipment Dimensions	9 × 8 × 3 cm

Features :

1. The connection cable is thicker.

1. Equips high-quality motor.

1. High resolution

1. Accurate positioning

1. Fast control response

1. Constant torque throughout the servo travel range

1. Excellent holding power

PRODUCT APPLICATIONS :

• Drones and RC planes

• Security camera

• Robotics

• Solar tracking and positioning

• Door lock and safe locks

• Hobby projects

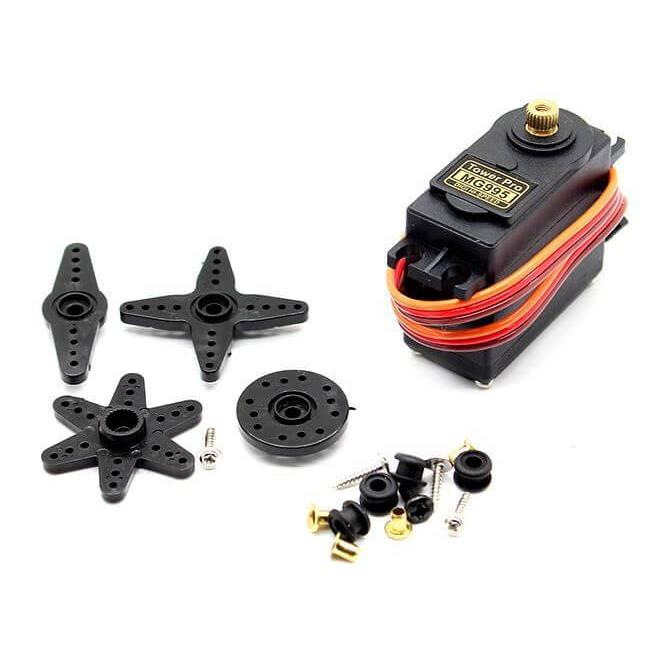

Package Includes :

1 x TowerPro MG995 High-Speed Servo Motor with Cable

Set of Horns

1. One Point

1. Two Point

1. Four Point

1 x Set of Screws

1 x Aluminum Servo Horn Arm
