MG995 Metal Gear Servo Motor is a high-speed standard servo can rotate approximately 180 degrees (90 in each direction) used for airplane, helicopter, RC-cars and many RC model. You can use any servo code, hardware or library to control these servos, so it's great for beginners who want to make stuff move without building a motor controller with feedback & gearbox, especially since it will fit in small places. The MG995 Metal Gear Servo also comes with a selection of arms and hardware to get you set up nice and fast.
It is a Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.
They are packed within a tight sturdy plastic case which makes them water and dust resistant which is a very useful feature in RC planes, Boats, and RC Monster Trucks etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too.
The optimized performance and reliability of this servo have made it the favorite choice of many RC hobbyists.

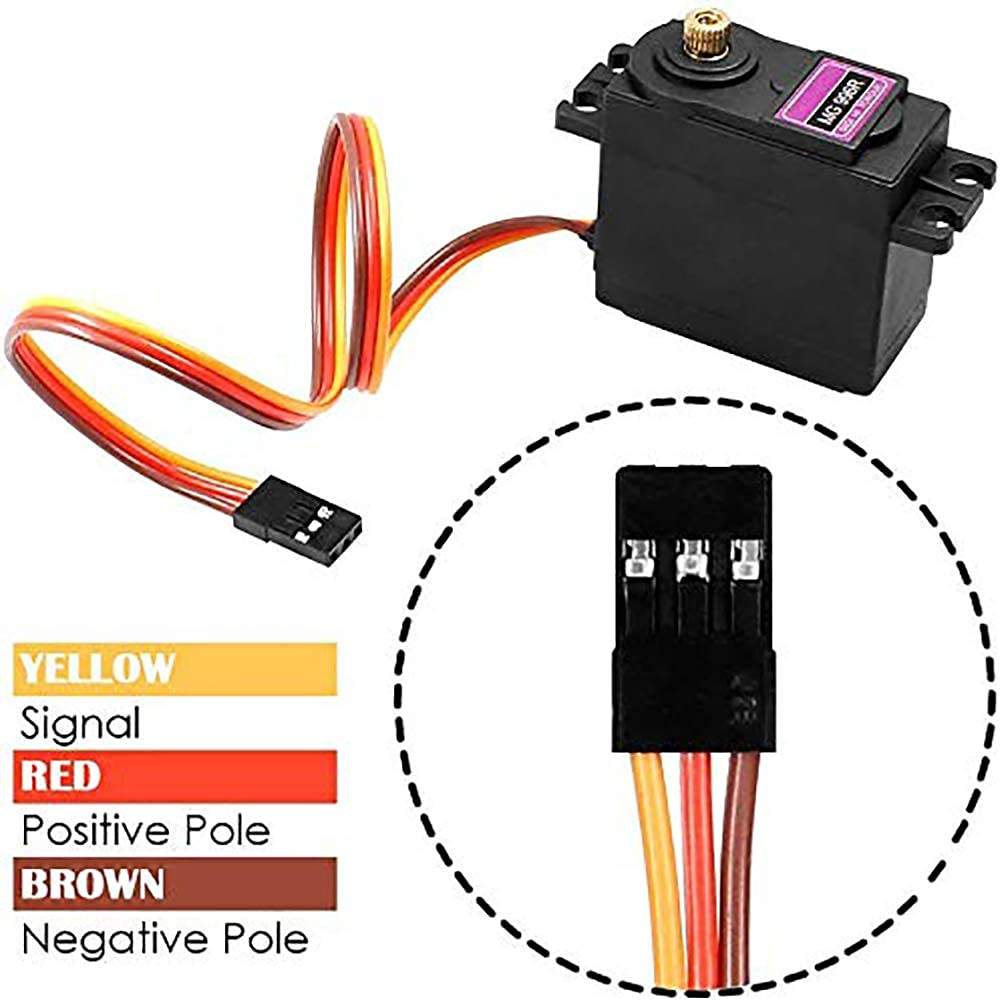

- RED – Positive
- Brown – Negative
- Orange – Signal
- The connection cable is thicker.
- Equips high-quality motor.
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power
Specification Overview :-
- Model: MG995
- Weight: 55 gm
- Operating voltage: 4.8V~ 7.2V
- Stall torque @4.8V : 10 kg-cm
- Stall torque @6.6V : 12 kg-cm
This servo draws high current while operation (up to 2 amp ~ stall), to make this servo work with Arduino or any other microcontroller, please do following connections.
- Please Make Sure That Your System Has Common Ground.
- Power Source Anything Battery/Smps/Adapter.

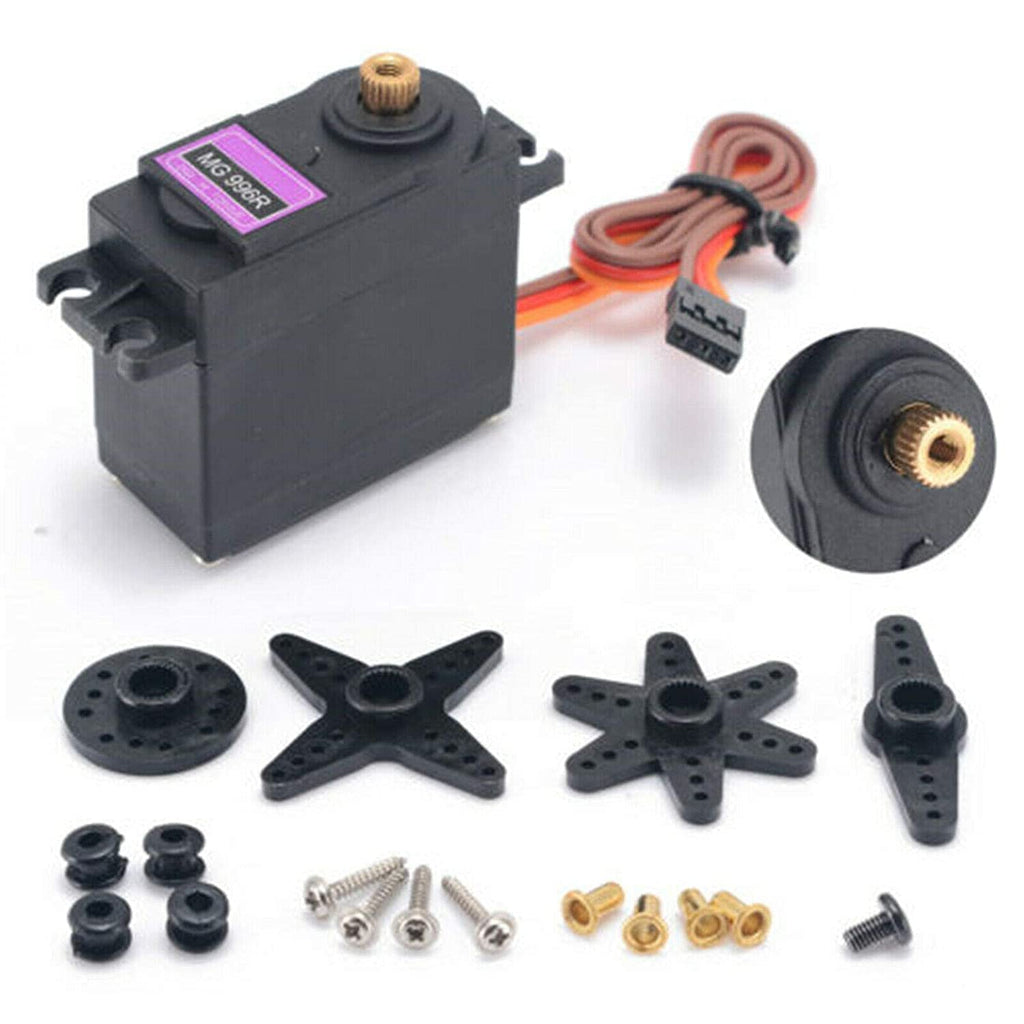

- 1 x TowerPro MG995 Metal Gear Servo.
- 1 x Mounting accessories set.
