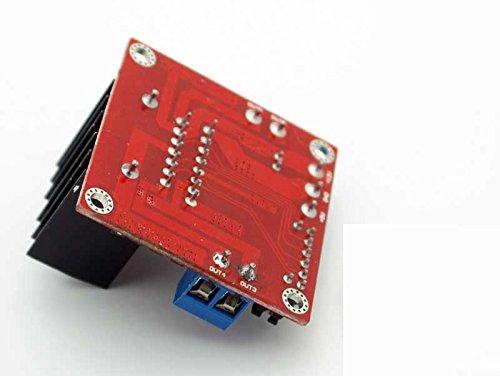

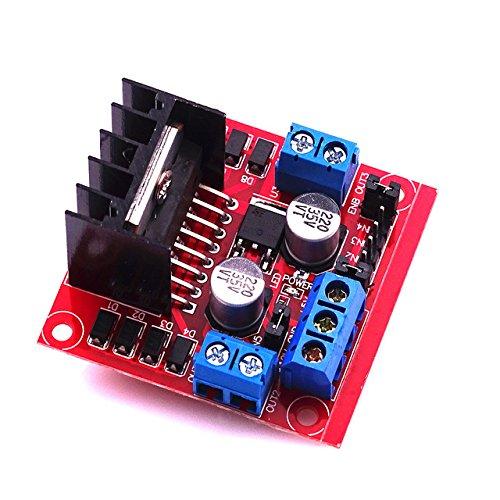

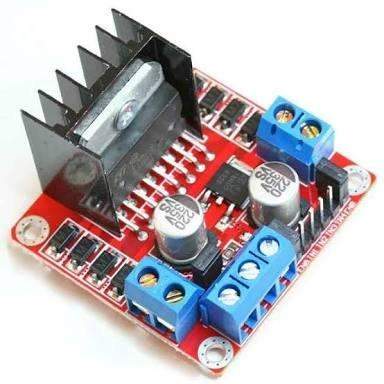

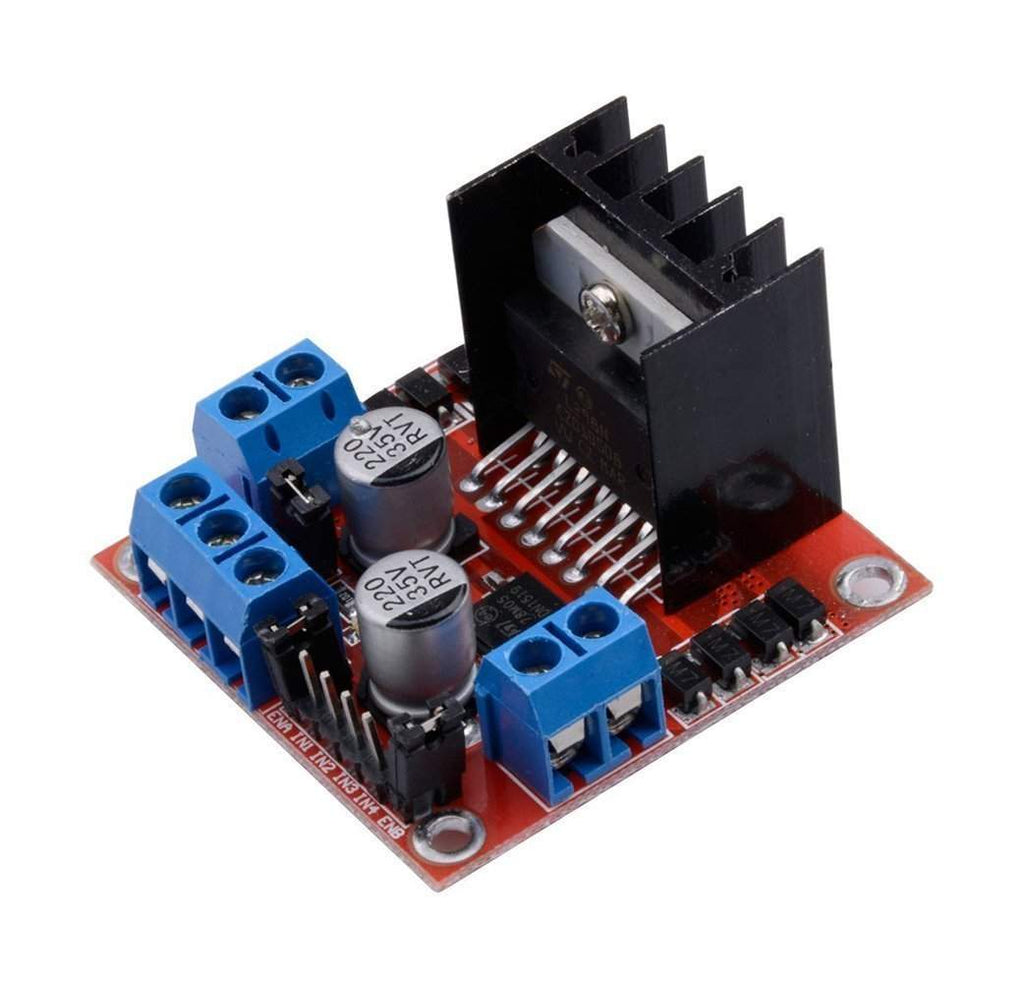

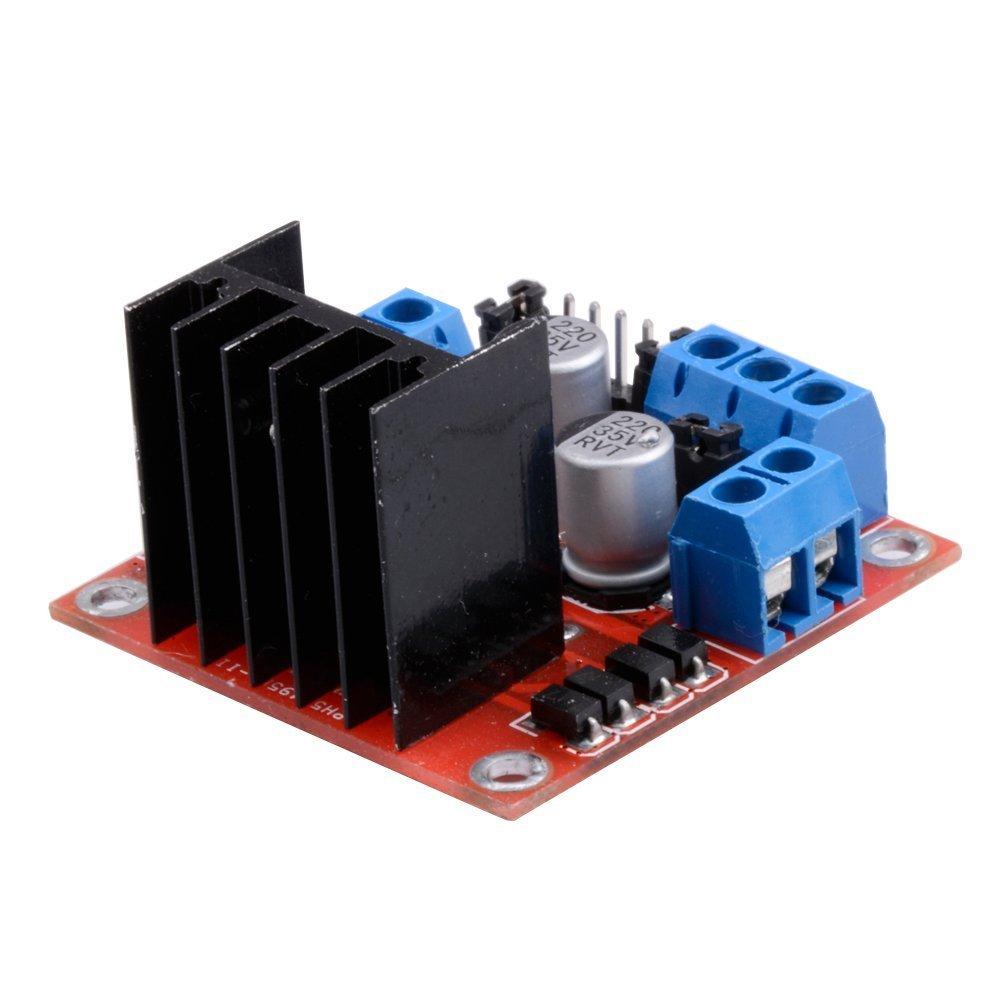

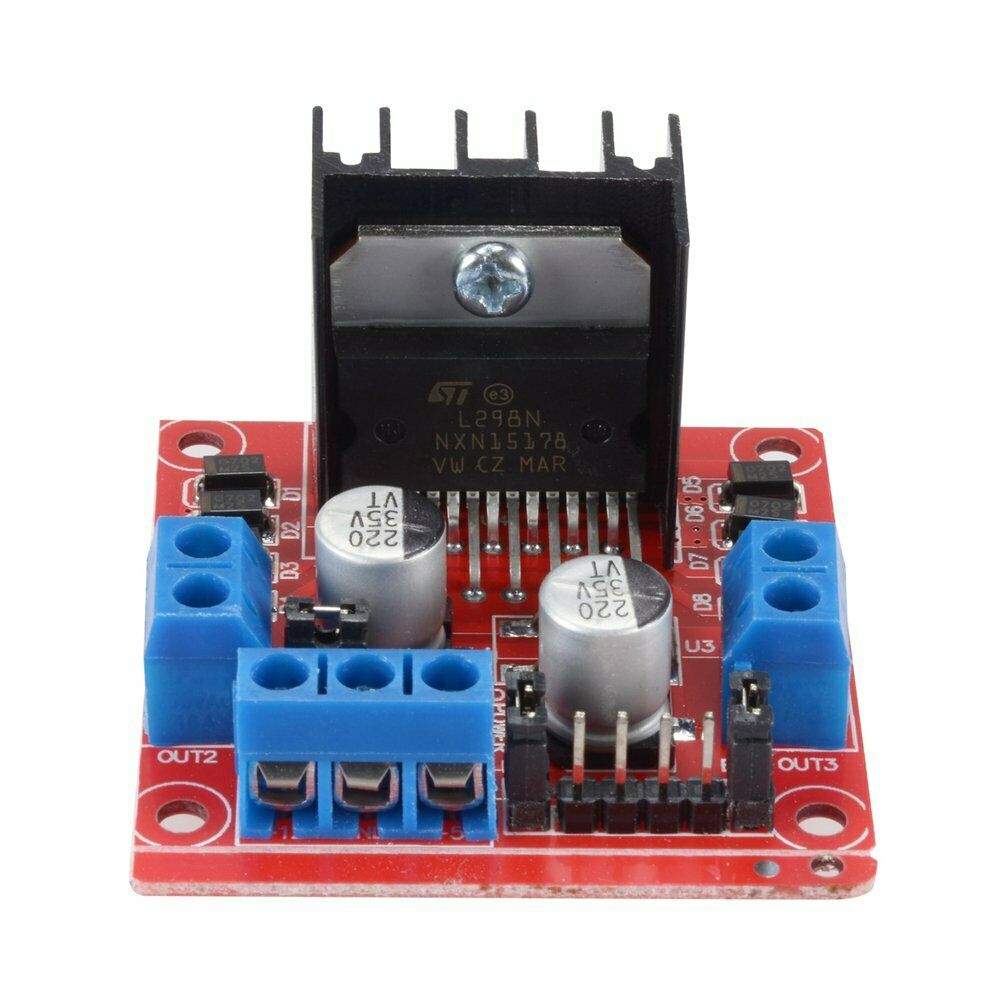

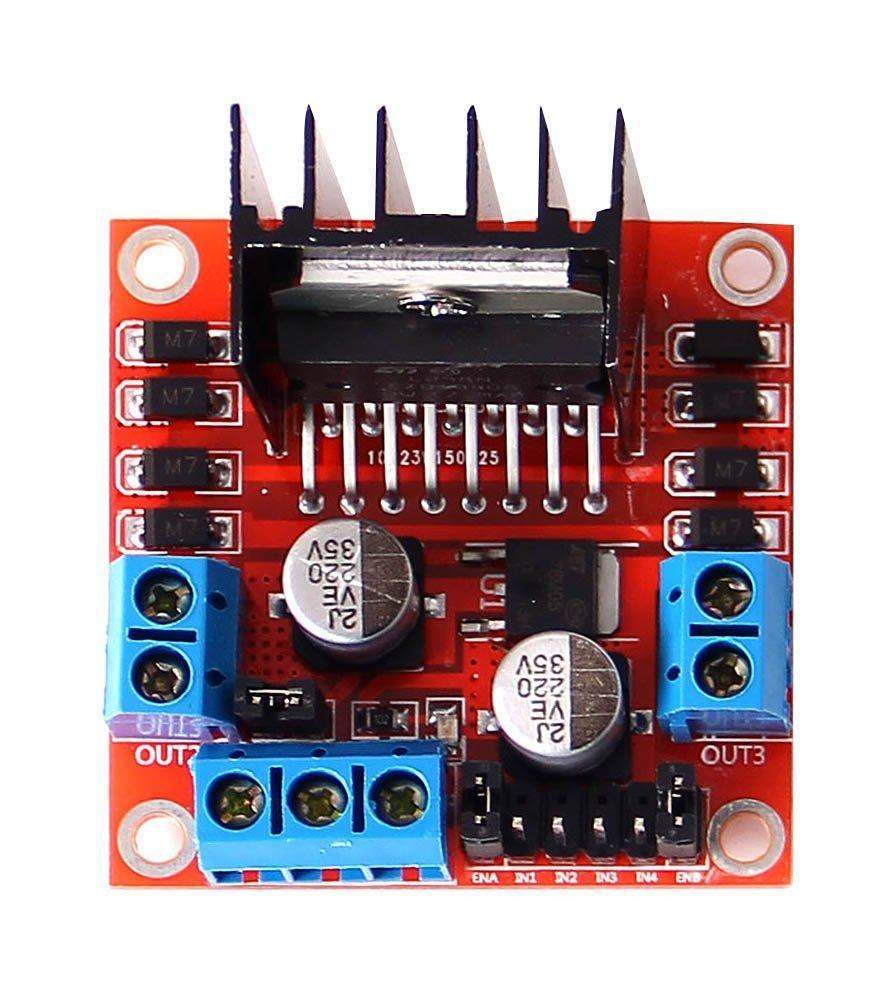

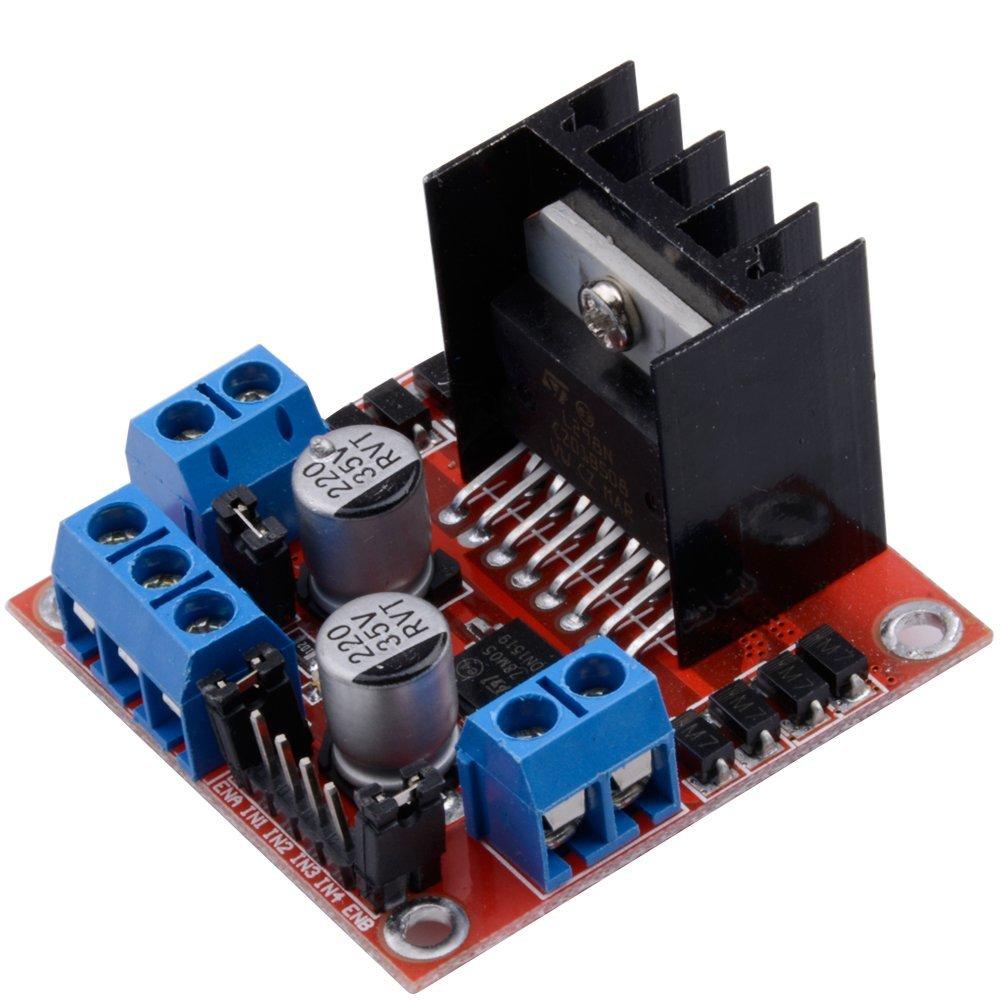

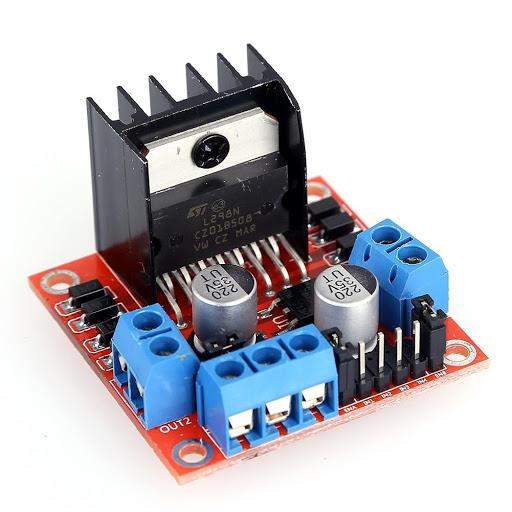

L298N DC Stepper Motor Driver Controller Board Module H-Bridge for Arduino

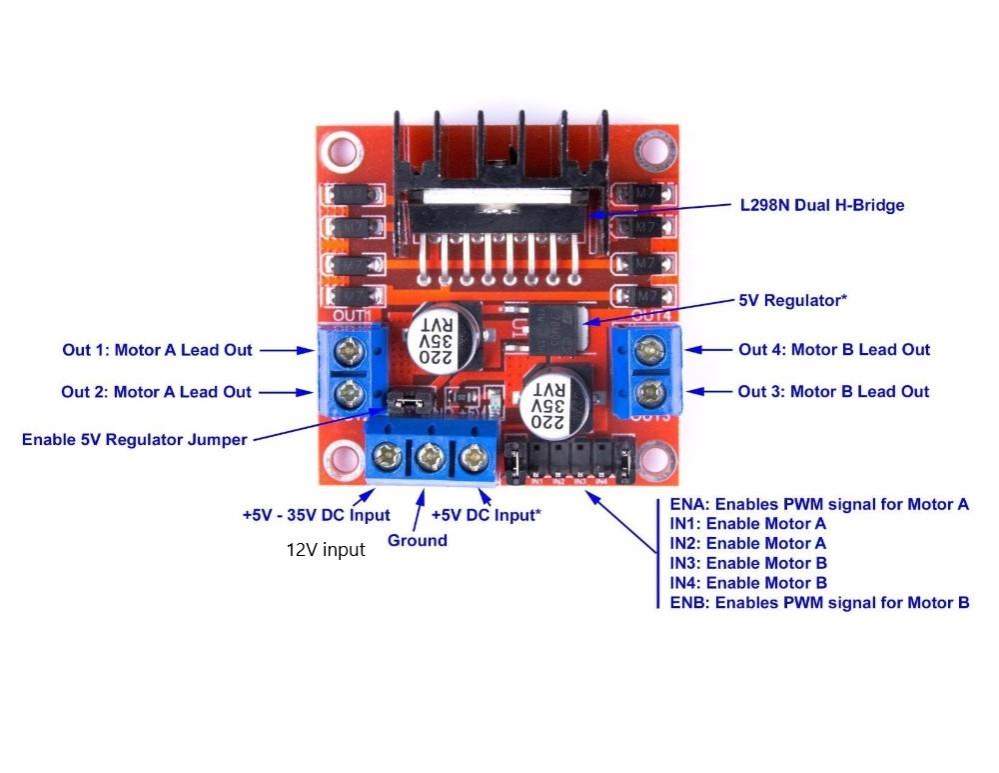

This dual bidirectional motor driver, is based on the very popular L298 Dual H-Bridge Motor Driver Integrated Circuit. The circuit will allow you to easily and independently control two motors of up to 2A each in both directions.It is ideal for robotic applications and well suited for connection to a microcontroller requiring just a couple of control lines per motor. It can also be interfaced with simple manual switches, TTL logic gates, relays, etc. This board equipped with power LED indicators, on-board +5V regulator and protection diodes.

• Input Voltage: 3.2V~40Vdc.
• Driver: L298N Dual H Bridge DC Motor Driver
• Power Supply: DC 5 V - 35 V
• Peak current: 2 Amp
• Operating current range: 0 ~ 36mA
• Control signal input voltage range :
• Low: -0.3V ≤ Vin ≤ 1.5V.
• High: 2.3V ≤ Vin ≤ Vss.
• Enable signal input voltage range : o Low: -0.3 ≤ Vin ≤ 1.5V (control signal is invalid). o High: 2.3V ≤ Vin ≤ Vss (control signal active).
• Maximum power consumption: 20W (when the temperature T = 75 ℃).

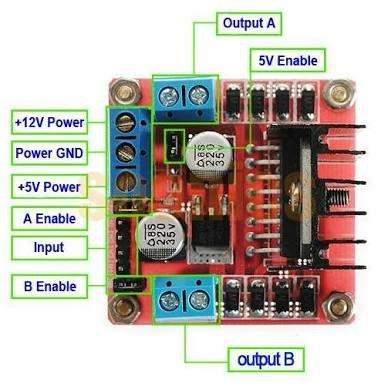

• Storage temperature: -25 ℃ ~ +130 ℃. • On-board +5V regulated Output supply (supply to controller board i.e. Arduino)

Specification:

Package Includes:

1 x L298N DC Stepper Motor Driver Controller Board Module H-Bridge for Arduino
