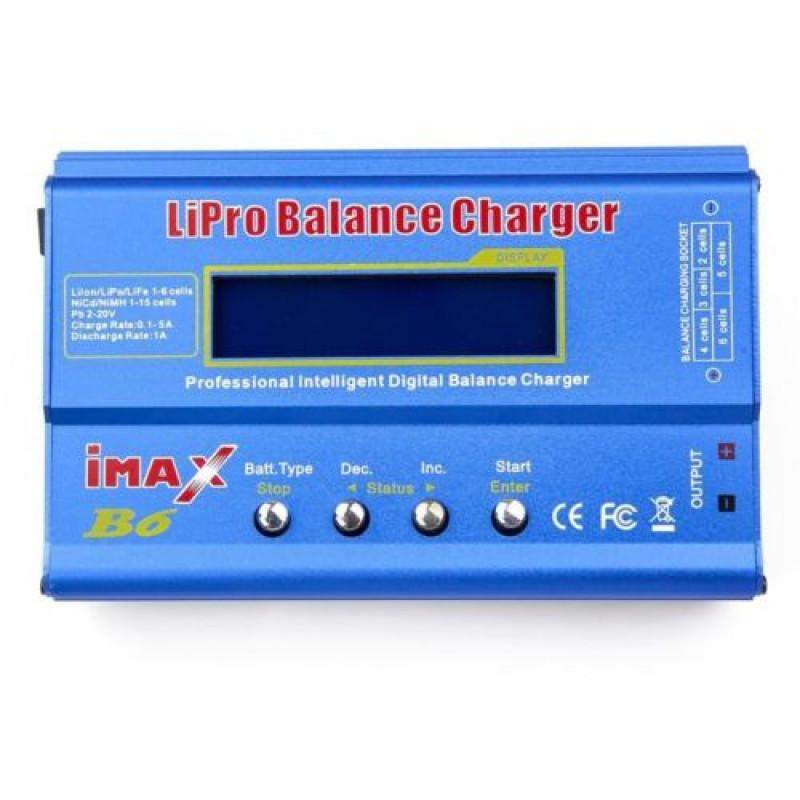

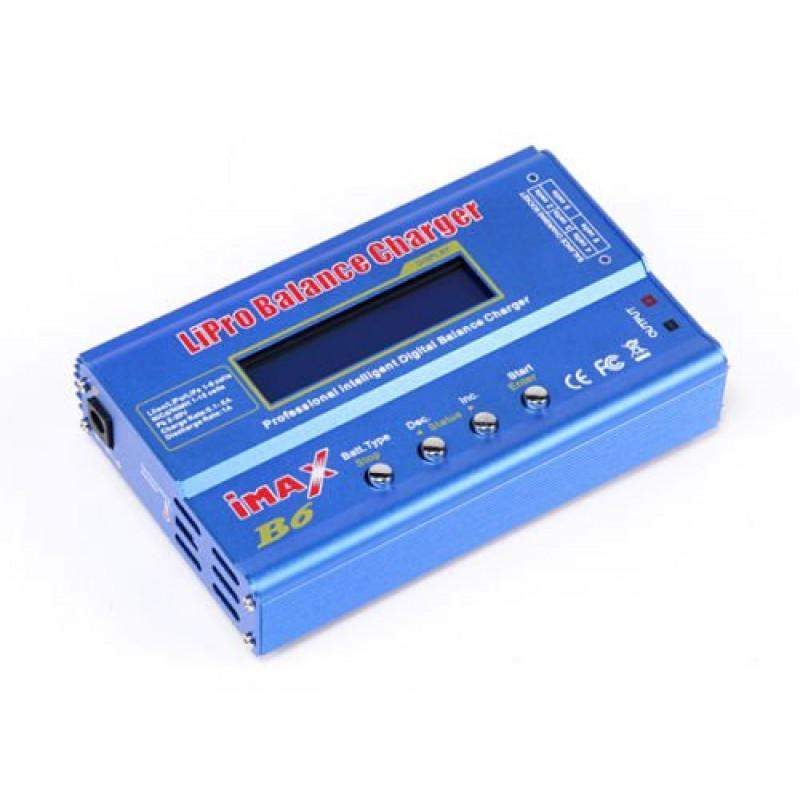

The IMAX B6 80W 6A Charger/Discharger 1-6 Cells is a very advanced charger, able to charge, balance and discharges LiIon, LiPoly, LiFe (A123), NiCd and NiMH batteries. It is microprocessor controlled just like all the best chargers and will balance the individual cells in you Li-XX batteries.
It will charge from 0.1 to 6.0A and is capable of charging packs up to 6S packs. Its feature input voltage protection so as not to flatten your car battery at the field and will also storage charge you pack for when you are not using them. You can power it with any power supply delivering from 11~18V so it is very flexible.

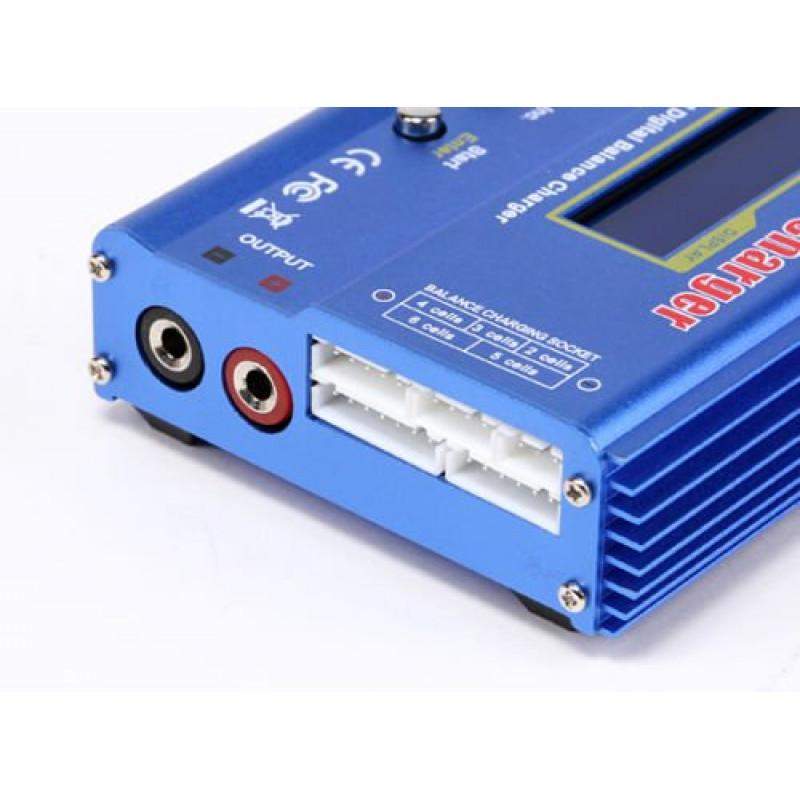

This charger has a JST-XH charge plug, which makes it compatible with Zippy, HXT, Loong Max and any pack with a JST adapter.
- Microprocessor controlled
- Delta-peak sensitivity
- Individual cell balancing
- LiIon,LiPoly, and LiFe capable
- NiCd and NiMH capable
- Large range of charge currents
- Storage charge function
- Time limit function
- Input voltage monitoring (Protects car batteries in the field)
- Data storage (Store up to 5 packs in its memory)
- Battery break in and cycling.
- DC Input Voltage Range (V): 11 ~ 18
- Output Power (Watt): 80W (max)
- Charge Current Range (A): 0.1 ~ 6
- Maximum Discharge Power (W): 5
- Dischage Current Range (A): 0.1 ~ 1.0
- Drain Current for Balancing Li-Po's (mA/Cell): 300
- Li-ion/Po cell count: 1 ~ 6
- NiCd/NiMH cell count: 1 ~ 15 Cells
- Pb battery voltage: 2 ~ 20
- Dimensions (mm) LxWxH: 133 x 87 x 33
- Weight (gm): 277

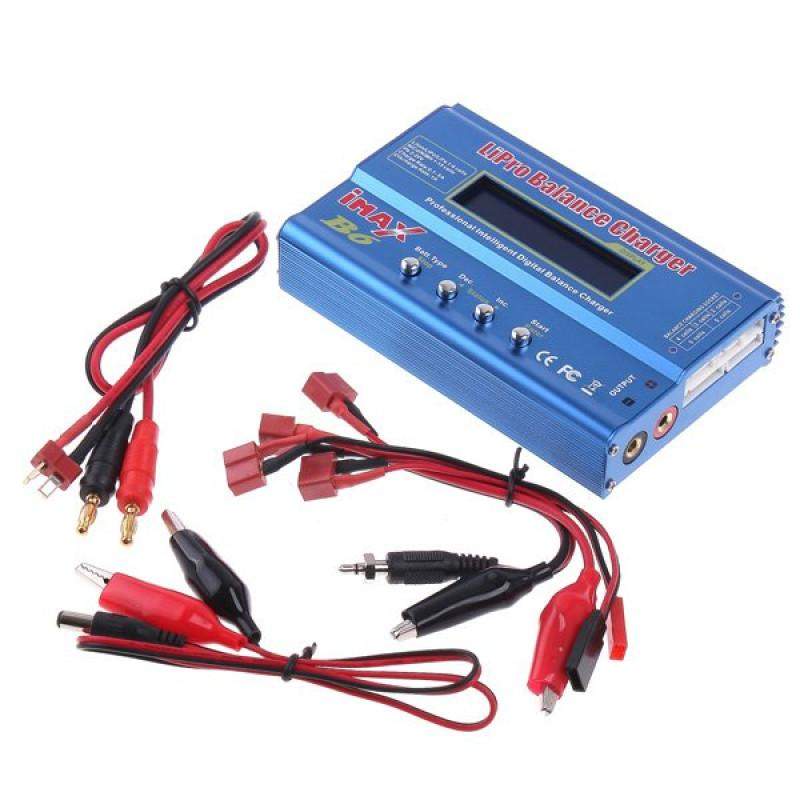

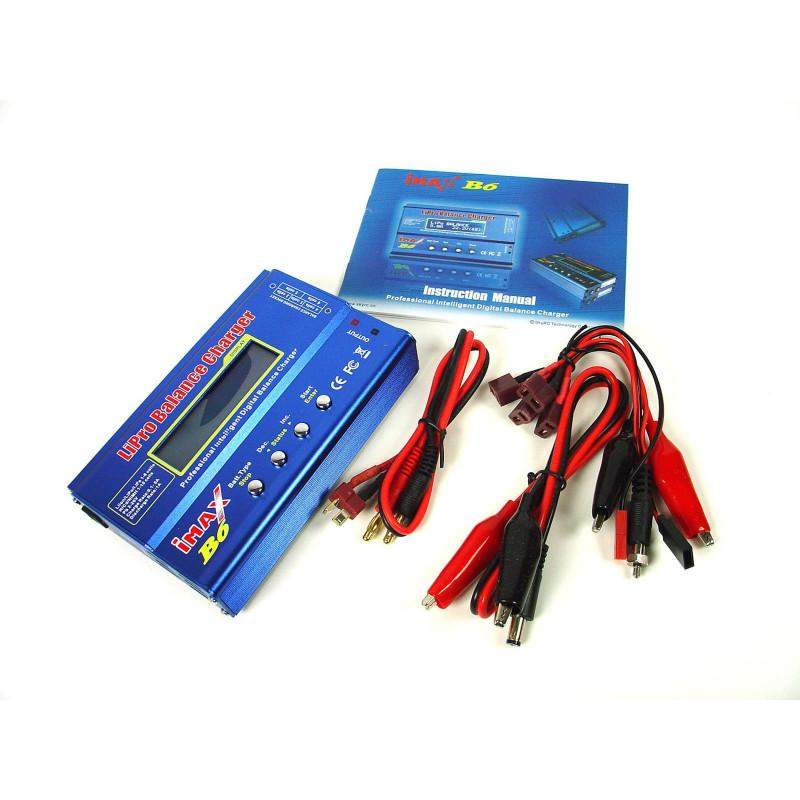

- 1 x IMAX B6 80W 6A Charger.
- 1 x T plug with banana connector charging cable.
- 1 x DC cable with Alligator Clip charging connector.
- 1 x T plug with Alligator Clip connector charging cable.
- 1 x T plug with Futaba connector charging cable.
- 1 x T plug with JST connector charging cable.
- 1 x T plug with XT60 connector charging cable.
- 1 x English manual.
1 x IMAX B6 AC 80W 6A Charger/Discharger 1-6 Cells
