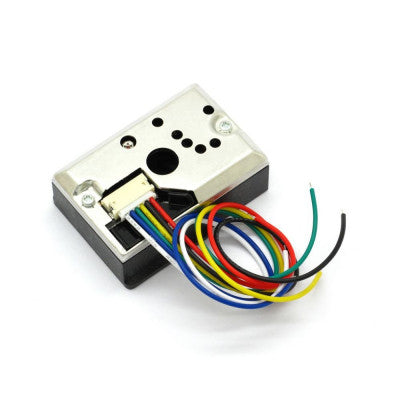

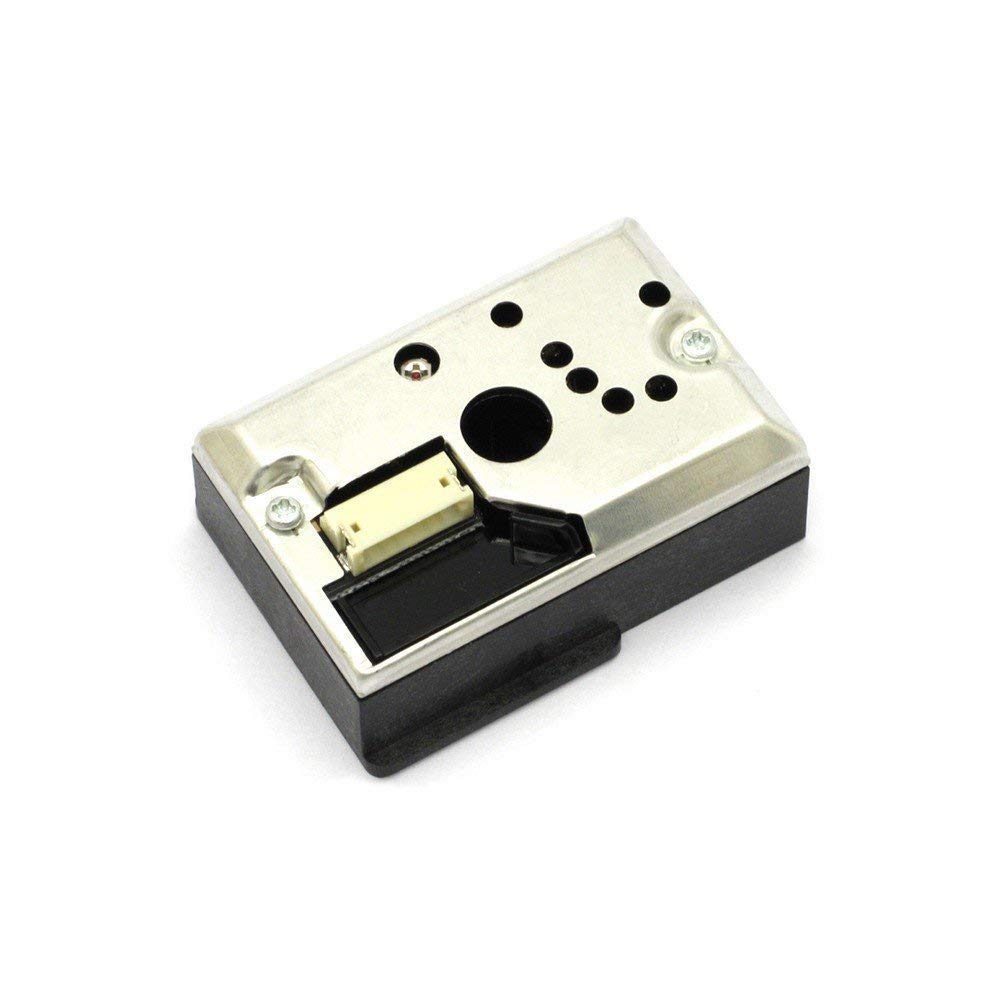

The GP2Y1010AU0F/GP2Y1014AU (HCSENS0024) from Sharp is an optical air quality sensor, intended to detect dust particles. An infrared transmitting diode (IRED) and a phototransistor are askew organized into this gadget, which permits it to recognize the mirrored light of dust and other particles in air. It is extremely powerful in distinguishing exceptionally fine particles like the tobacco smoke.
This sensor comes complete with a connection cable (connector already attached), a 150 Ohm current limiting resistor for use with the IR LED, and a 220uF 16V capacitor.
- Compact, thin package (46.0 ×30.0×17.6 mm)
- Low consumption current (Icc: MAX. 20 mA)
- The presence of dust can be detected.
- Photometry of only one pulse
- Enable to distinguish smoke from house dust
- Lead-free and RoHS directive compliant
1 x GP2Y1010AU0F / GP2Y1014AU Compact Optical Dust/Smoke Sensor Module
