- Constant Current: 30A (Max 40A<10s).
- BEC: 5V 3A.
- Input Voltage: 11.1 ~ 11.7 V.
- Li-Po battery: 2S ~ 3S.
- Ni-MH 4-10 CELLS Auto Detect.
- This 30 amp ESC for BLDC has onboard BEC.
- This ESC comes with a male dean T-connector.
- Auto Low BATTERY Slow down at 3.0V/cell Lipo, cut-off at 2.9V/cell lipo.
- APPLICATION: Multirotors, Rc Airplanes, etc.
|Operating Voltage (VDC)||
2.7 ~ 5.5
|Voltage Supply for RTC||
2.2 V ~ 5.5 V
±2ppm from 0°C to +40°C.
2032 Coin Battery.
Fast (400kHz) I2C Interface.
AT24C32 32Kbit Serial I2C.
|Time and Date Format||
Time: HH: MM: SS (12/24 hr).
|Operating Temperature Range (°C)||
-40 to 85
|Digital Temp Sensor Output||
10 bit, ±3°C Accuracy and 0.25C resolution.
|Dimensions in mm (LxWxH)||
38 x 22 x 14
12 × 8 × 5 cm

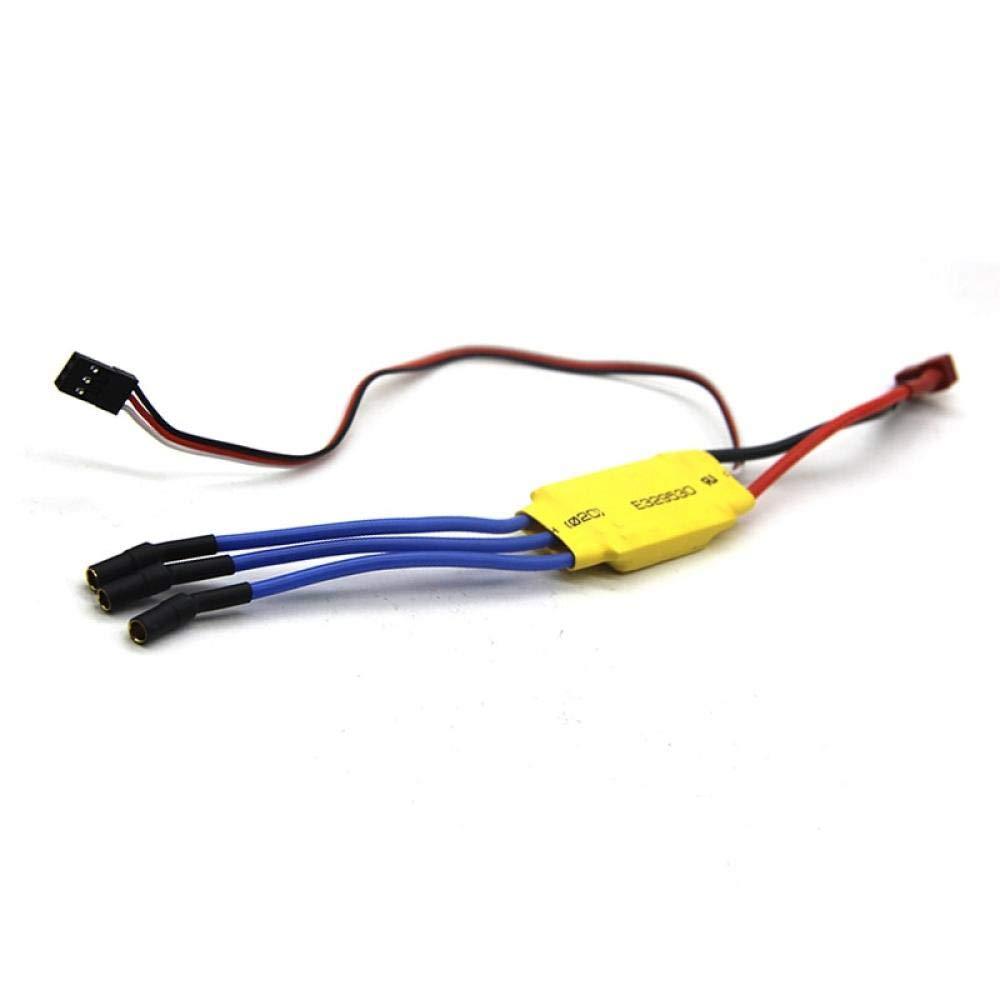

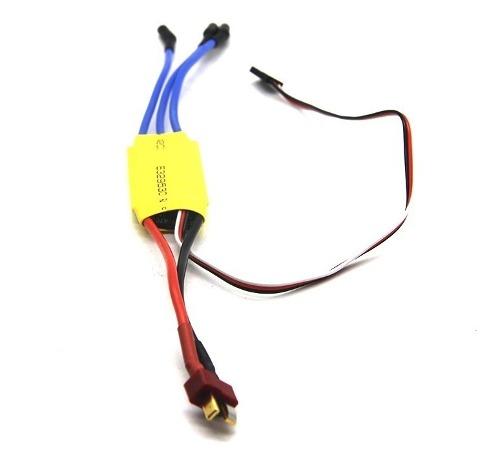

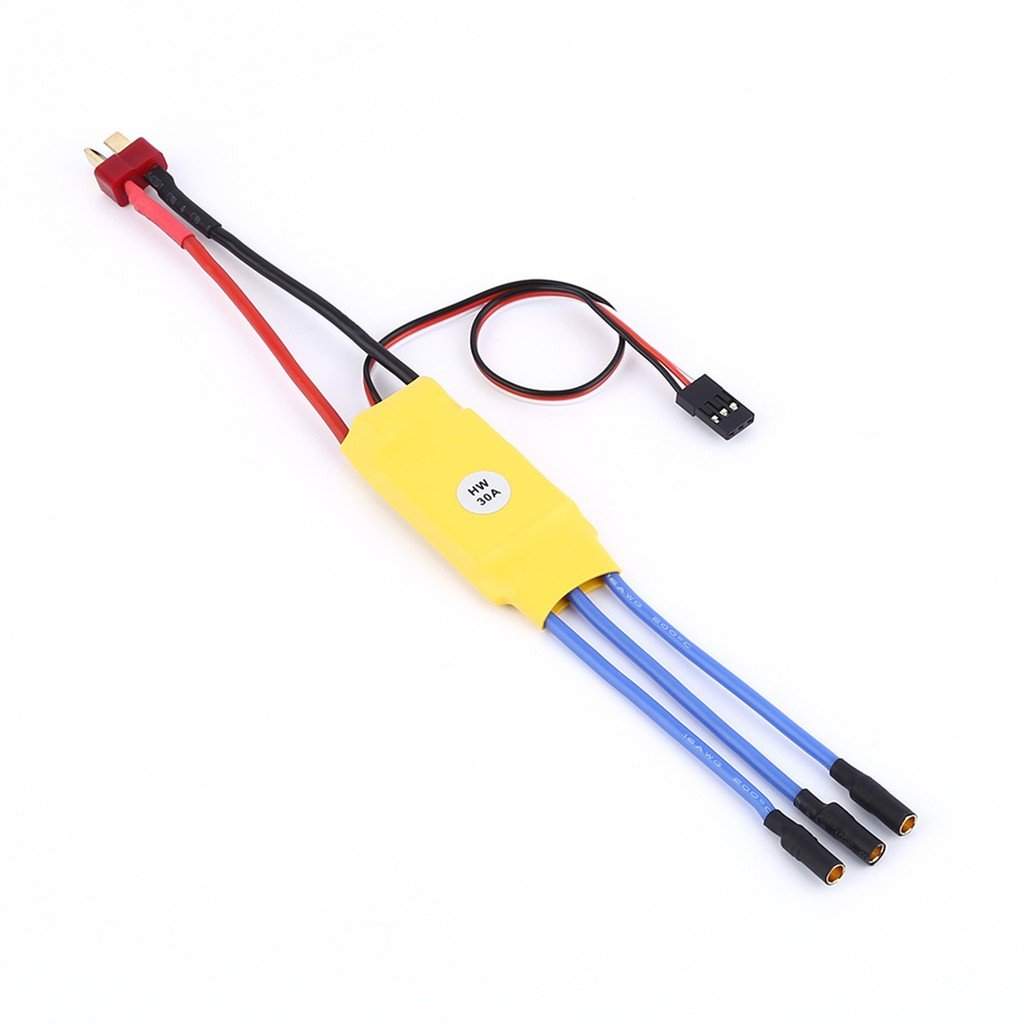

Standard 30A BLDC ESC Electronic Speed Controller with Connector is specifically made for quadcopters and multi-rotors and provides faster and better motor speed control giving better flight performance compared to other available ESCs.
STANDARD 30A ESC Electronic Speed Controller can drive motors which consume up to 30A current. It works on 2S-3S LiPo batteries. The onboard BEC which provides regulated 5V(2A max draw) to power the flight controller and other onboard modules. It can be used to control our brushless motors with a 2S-3S LiPo (make sure motor doesn’t draw more than 30A).
This particular ESC is recommended with A2212 brushless motor (1000kv, 1400kv, 2200kv).
If you're going to build a Drone or RC Plane and need ESC, This is the Product - Low price, Great Quality.
I did not face any problem and connect without any issues.
Great Customer Service.
Best ESC for Drone or RC Plane in the market, with no doubt.
This ESC works great. Good quality.
