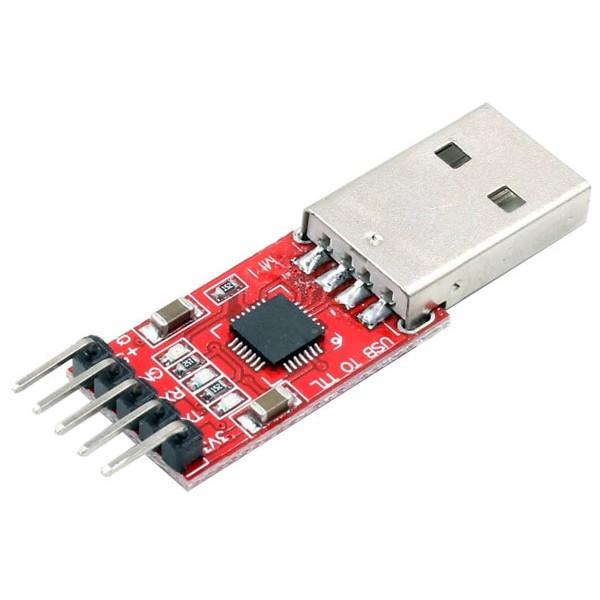

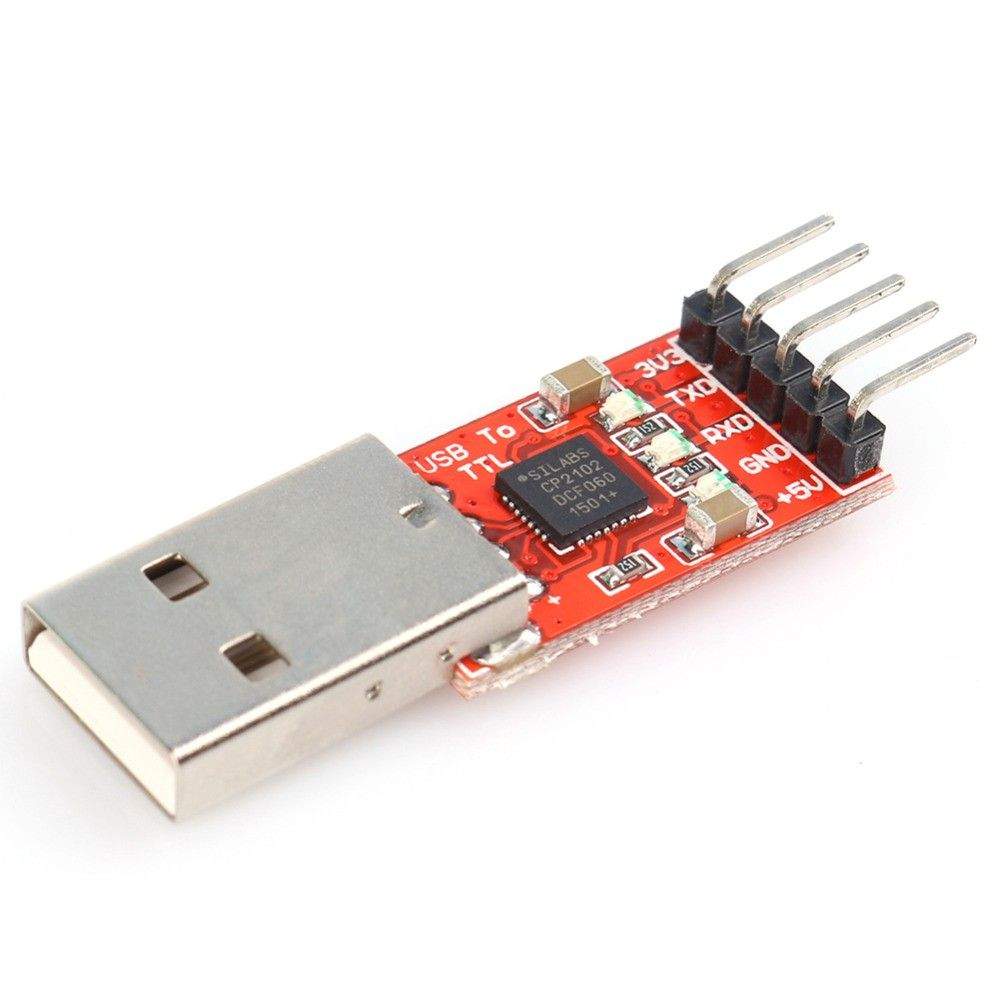

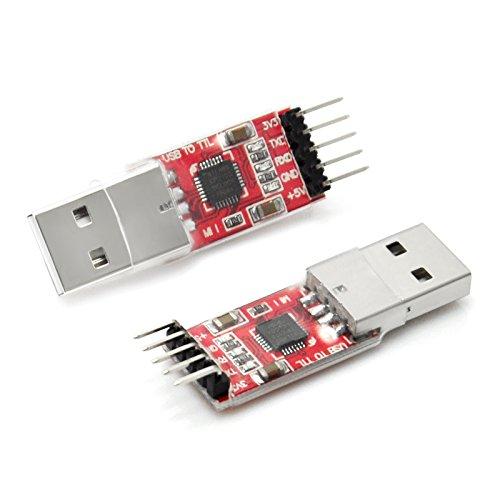

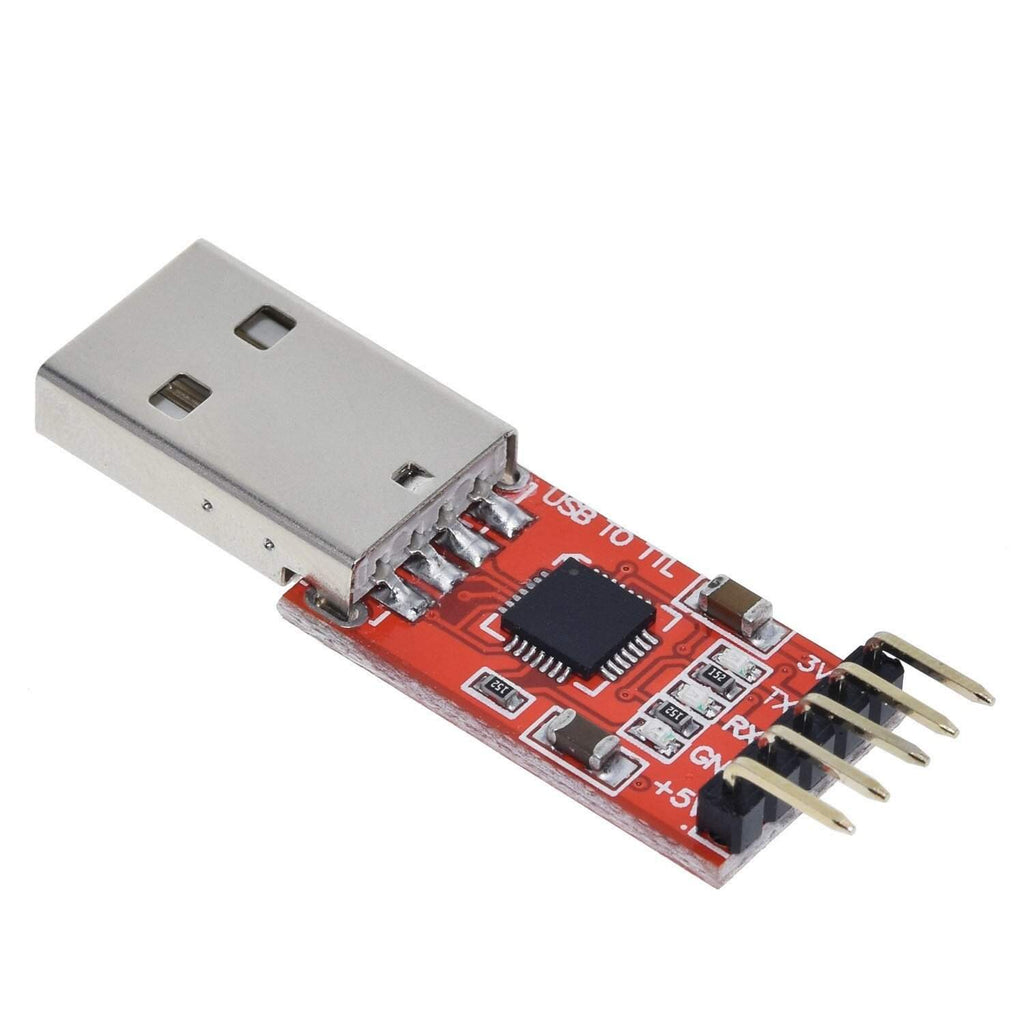

CP2102 USB 2.0 to TTL UART Module 5-Pin Serial Converter STC Replace FT232 Module Compatible with Windows 7,8,10,Linux,Mac OSX

PRODUCT OVERVIEW:

• Stable and reliable chipset CP2102 USB specification 2.0 compliant with full-speed 12 Mbps

• Standard USB type A male and TTL 5pin

• Supports windows vista or xp or server 2003/200, Mac OS-X/OS-9, Linux

• Temperature Range: -40 to +85 degree Celsius

Usb to ttl / usb-ttl /stc microcontroller programmer / pl2303 in nine upgrades plate with a transparent cover compatible with Arduino, raspberry pi, avr, pic, 8051, etc. The USB to rs232 module based TTL provides the best and convenient way to connect your rs232 TTL devices or demo board to your pc via the USB port. Supports the following windows oses: Windows 98se. Windows me. Windows 2000 sp4. Windows XP sp2 and above (32 and 64 bit). Windows server 2003 (32 and 64 bit). Windows server 2008 / 2008 r2 (32 and 64 bit). Windows vista (32 and 64 bit). Windows 7 (32 and 64 bit). Note: For windows 7, please use rc build 7100 or above. Windows operating system above windows 7 are not supported. Adopt imported controller pl2303hx, which can stabilize the flash with high speed. 500ma self recovery fuse for protection. Two data transmission indicator can monitor data transfer status in real time. Reserve 3.3v and 5v pin interface, easy for the ddwrt of different voltage system that need power.

The entire board is coated by a high quality transparent heat-shrinkable sleeve, making the PCB in insulation state from outside, so that the board won't be burnt down by material short cut. The electrostatic package insures the board will not be damaged before use.
