A2212 1400KV BLDC Motor and 30A ESC Electric Speed Controller with 1045 Propeller Set

PRODUCT OVERVIEW:

• The steel design is capable of withstanding competitional conditions.


• Lightweight design makes them suitable for a wide range of Quadcopters and Hexacopter Frames.


• Compact size.


• Offers great performance and value for money.


• Smooth throttle response for best RC experience.


• ESC used has an On-Board BEC.


• Faster and Better speed control.

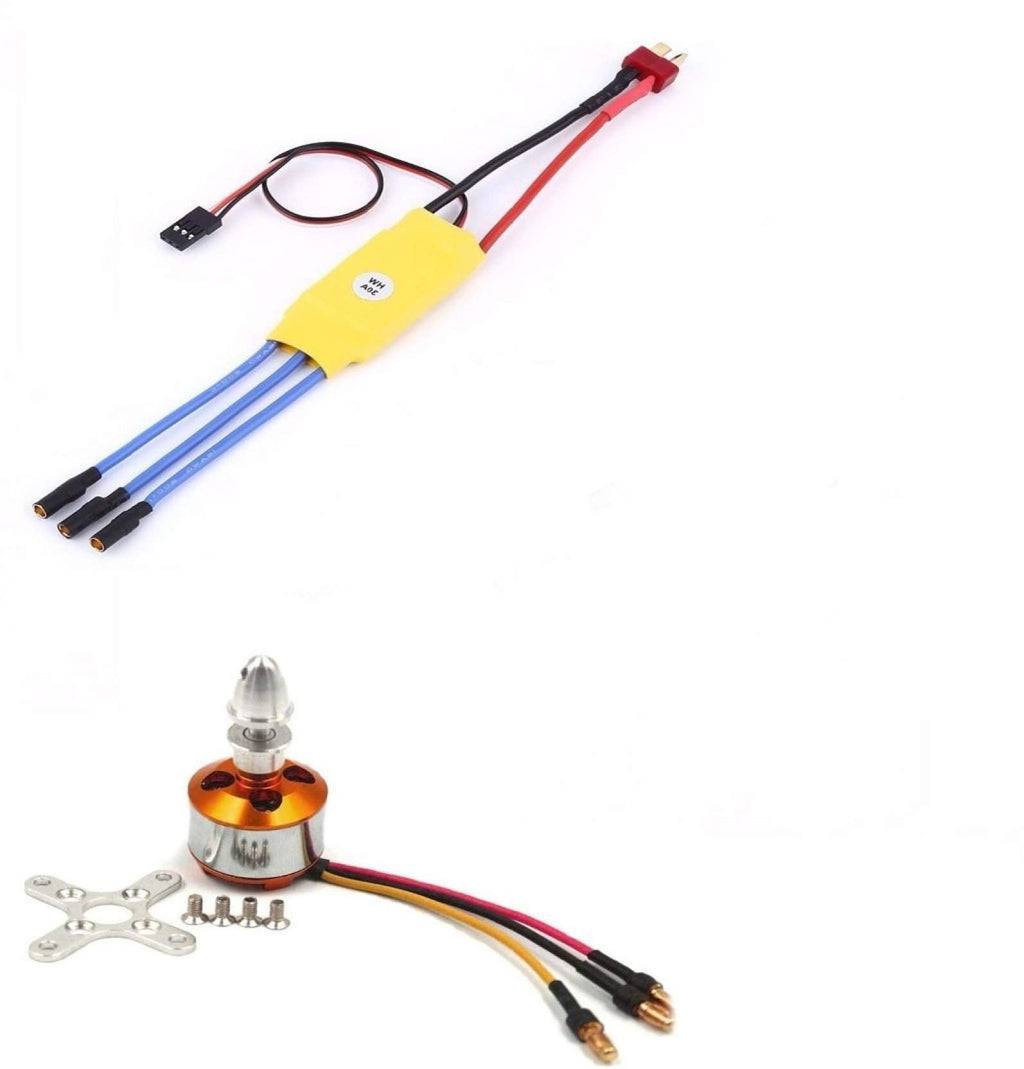

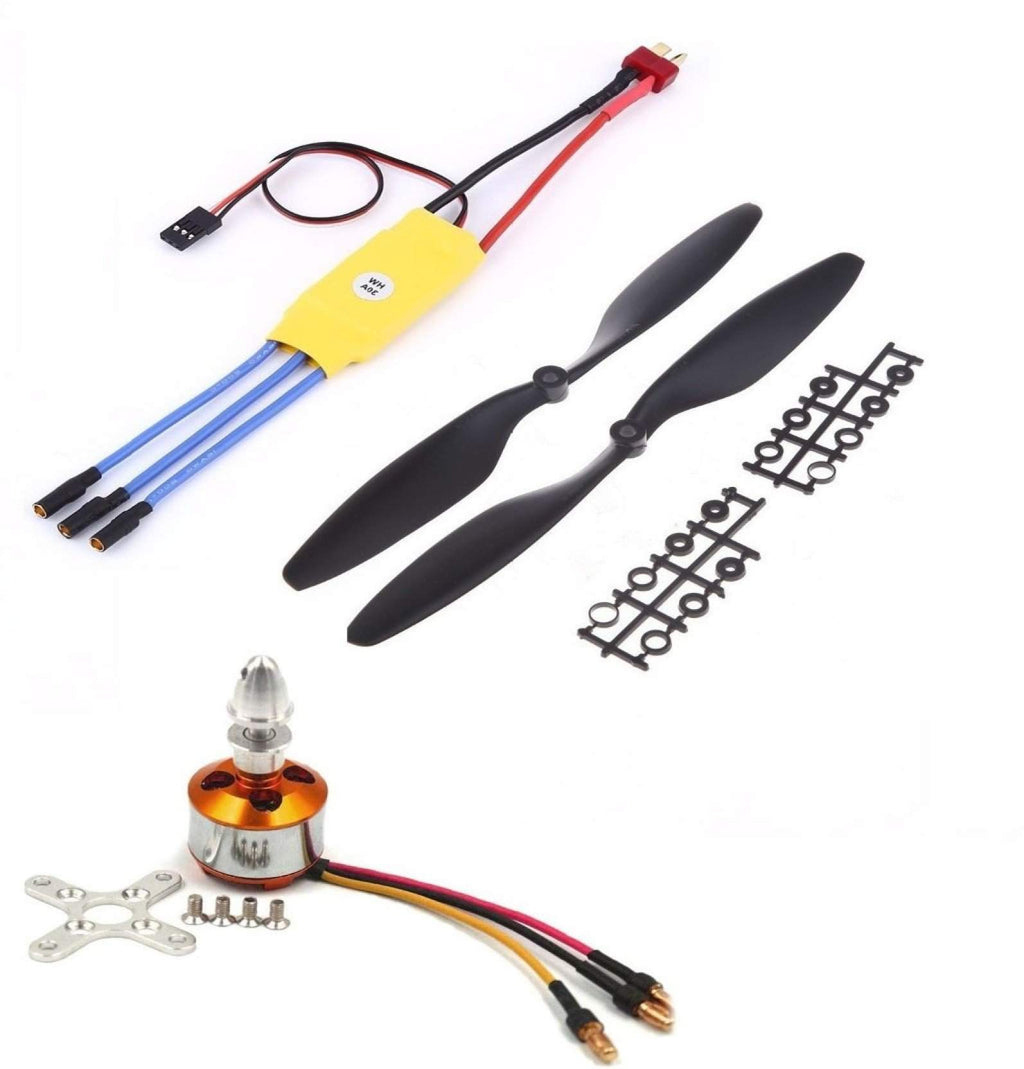

This is a pack of A2212/10T 1400KV Brushless Motor for Drone with 30A ESC and 1045 Propeller Set

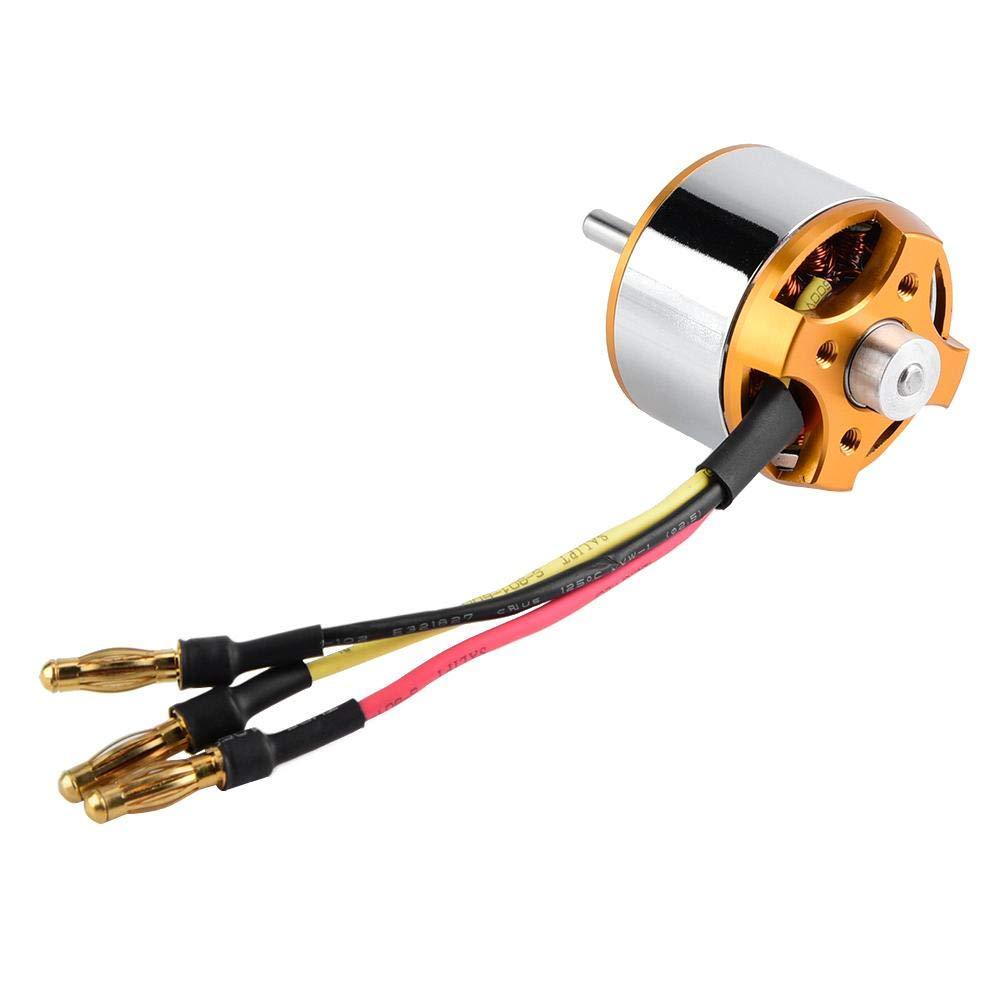

This 1400kv brushless motor is equipped with the solid metal case which makes it reliable and durable. This A2212 10T or 13T Motor comes with the pre-soldered good quality connector for a fast and direct connection between ESC and the motor.

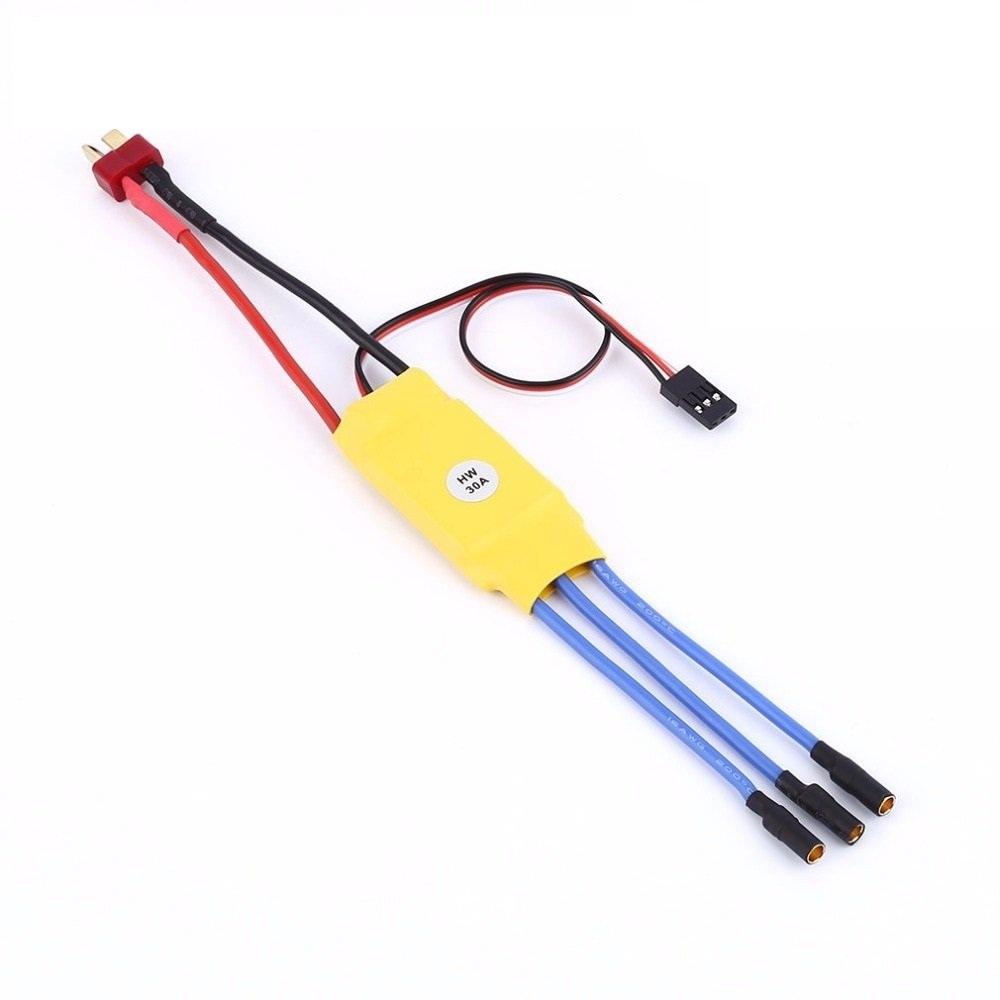

This particular ESC is recommended with the A2212 brushless motor of 1000kv, 1400kv or 2200kv

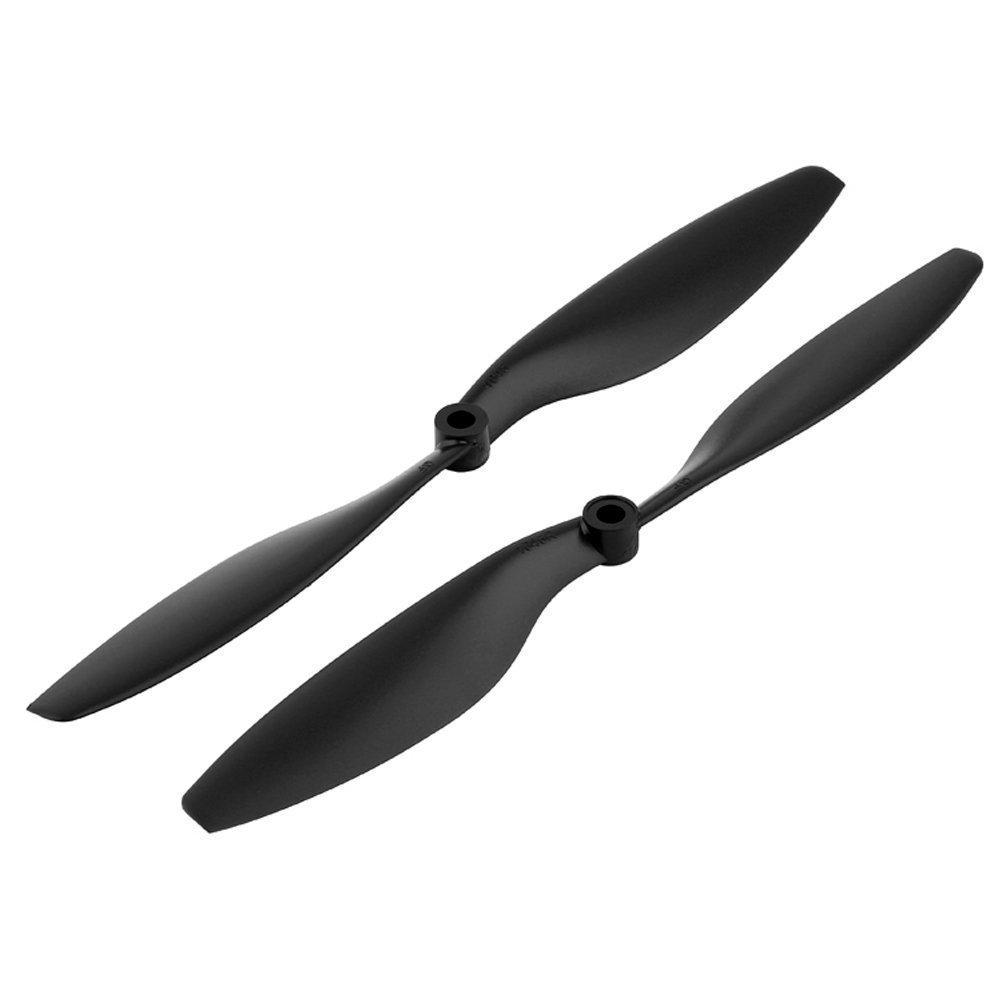

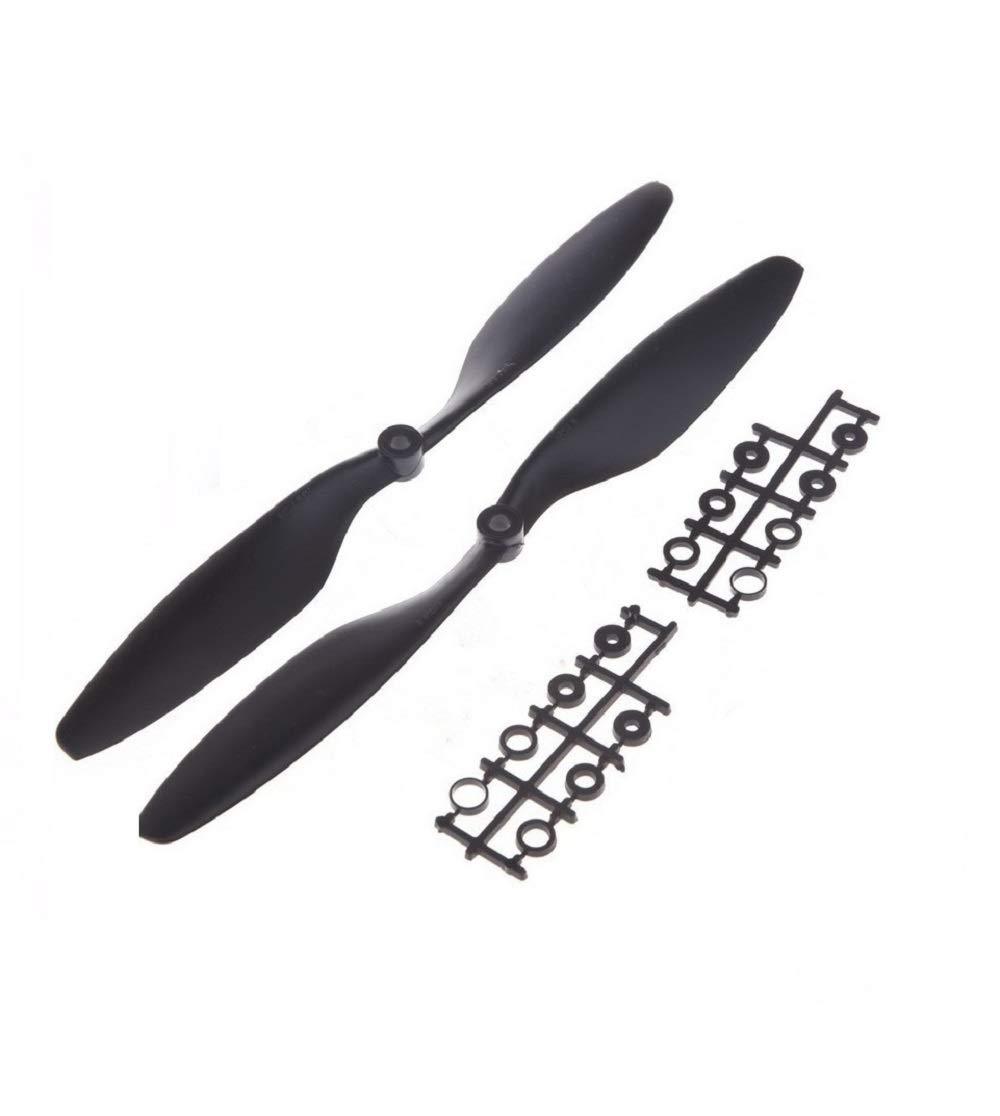

1045(10x4.5) SF Props included fits perfectly in this pack. These props are light in weight and they are high strength propellers.

APPLICATION:

• Drones


• Quadcopters


• Multirotor


• RC Airplanes


• UAV

Specification:

• Model: A2212 10T/13T


• Motor KV (RPM/V): 1400


• Maximum Efficiency: 80%


• Current Capacity: 16A/60S


• No-Load Current (A): 0.7A @10V


• Max. Efficiency Current: 6-12A


• Maximum Watts (W): 180


• Internal Resistance (mΩ): 65


• Poles: 14


• Shaft Diameter (mm): 3.17


• LiPo Batteries: 2S-3S


• Length (mm): 27.5


• Width (mm): 26.5

• Constant Current: 30A


• Maximum Current: 40A @10S


• BEC: 3A


• LiPo Batteries: 2S-3S

• Length: 10″.


• Pitch: 4.5″.


• Weight: 14 gm.


• Shaft diameter: 6 mm.


• Total length: 10 inch / 254 mm.

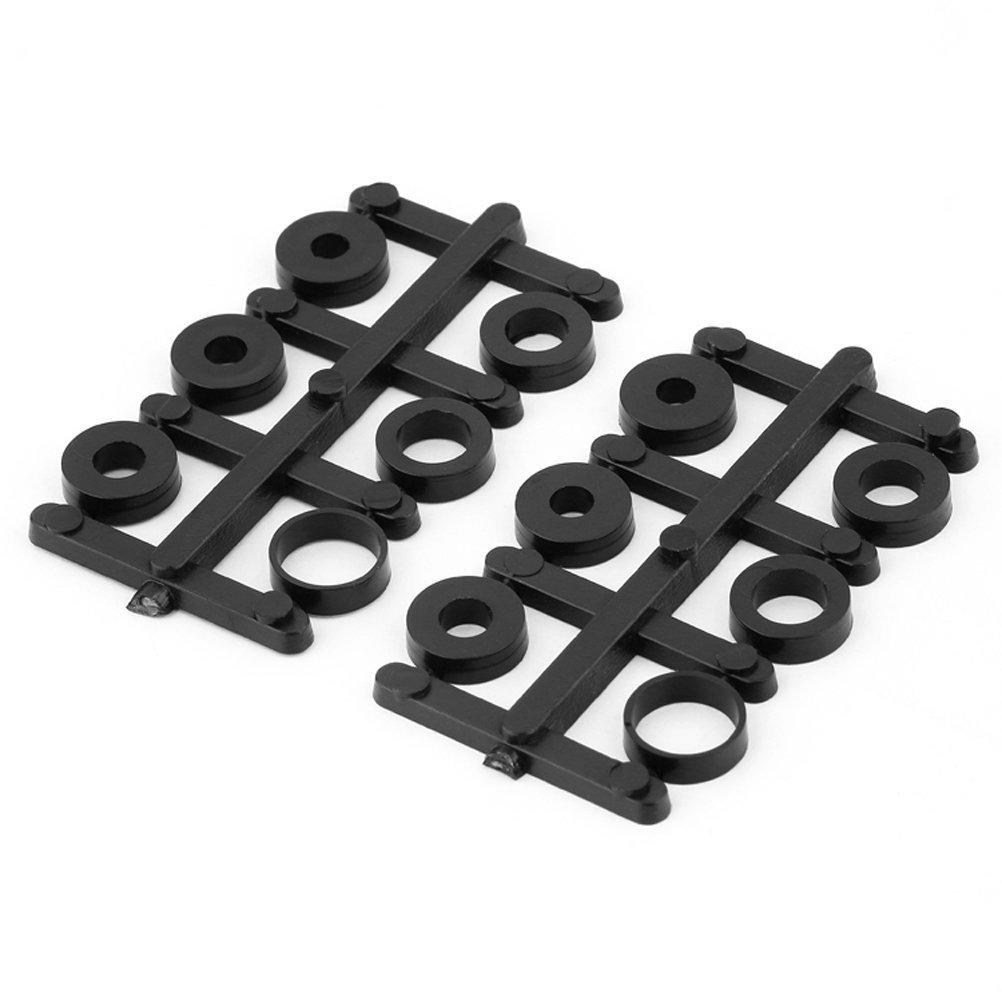

• A set of reducers (2.75, 3, 3.17, 4, 4.70, 5, 6, 6.25 mm).


• Epoxy resin cover.


• Very strong and lightweight.


• Color: Black.

Package Includes:

• 1 x A2212 10T 13T 1400KV Brushless Motor for Drone with Soldered Connector


• 4 x Prop Adapter


• A Motor Holder (X-type) and set of screws


• 1 x ESC 30A BLDC ESC


• 2 x 1045(10×4.5) SF Propellers (1CW, 1CCW).


• 2 x Sets of prop reducers.
