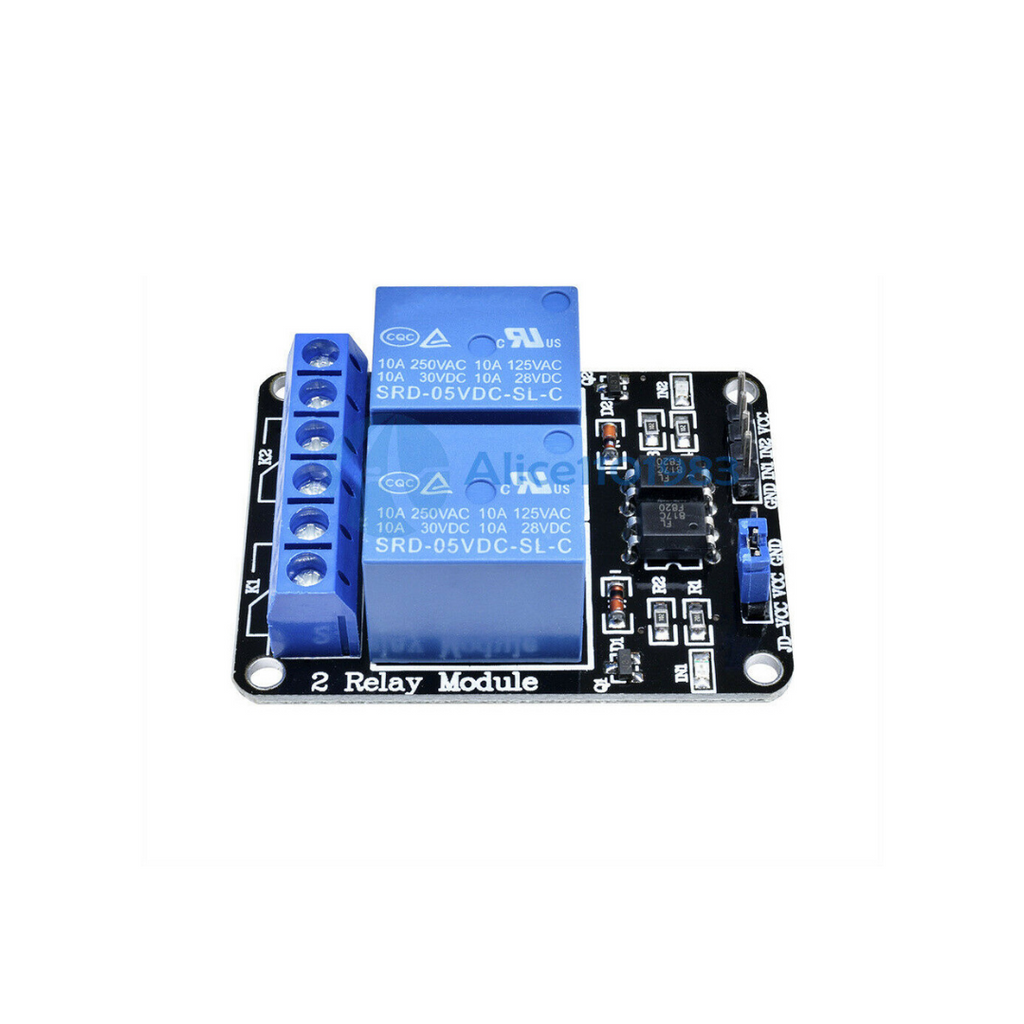

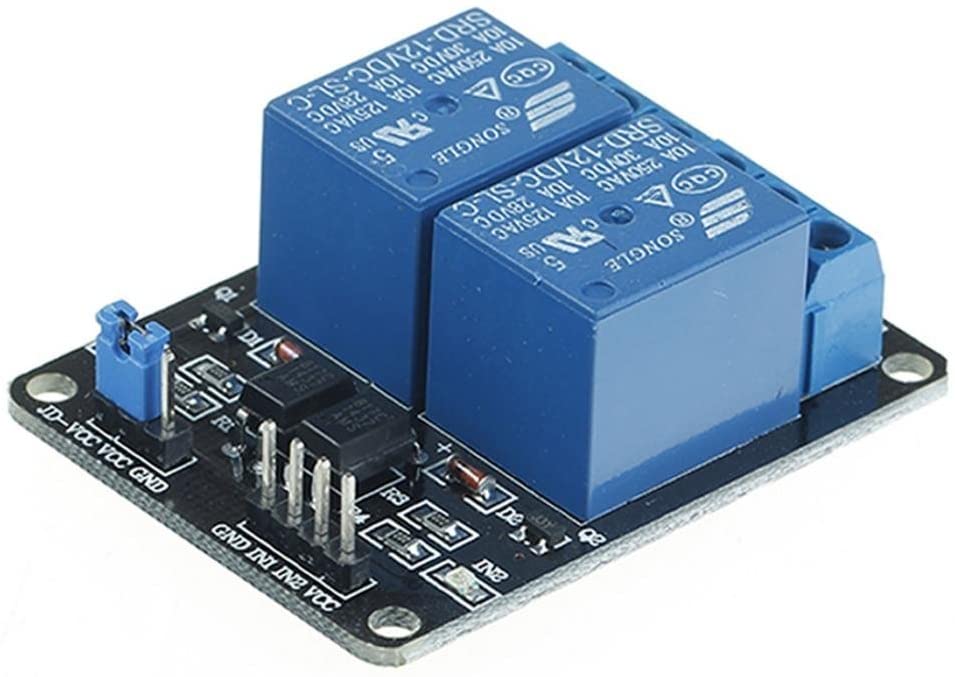

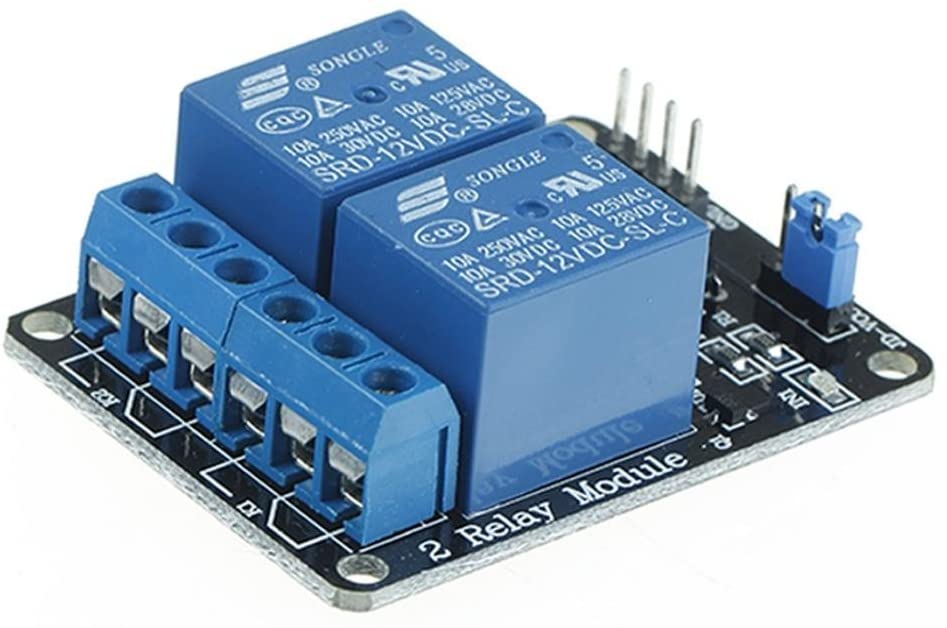

5V 2 Channel Relay Module Control Board With Optocoupler for Arduino

Roll over image to zoom in Click on image to zoom

5V 2 Channel Relay Module Control Board With Optocoupler for Arduino

Name: 5V Dual-Channel Relay Module For Arduino & Raspberry Pi
Brand: Robotbanao.com
SKU: RB-8260
Price: 90.00 INR
Availability: OutOfStock

Robotbanao.comSKU: RB-8260

Price:

Rs. 90.00

Tax included Shipping calculated at checkout

Stock:

Sold out

Quantity:

Available Offers :

First Purchase: Get 5% off on your first order use code FIRST

Reward Points : Get 2 Coin for every ₹1 spent.

Share this product

This is a 5V 2-Channel Relay interface board, Be able to control various appliances and other types of equipment with large current. It can be controlled directly by Micro-controller (Raspberry Pi, Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

Specification :

5V 2-Channel Relay interface board, and each one needs 15-20mA Driver Current
Equiped with high-current relay, AC250V 10A ; DC30V 10A
Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
Indication LED's for Relay output status
Type: 2 channel relay module.
Rated current: 60mA
Input voltage: 0~5V
VCC system power supply.

Key Features:

5V 2 Channel Relay Module for Arduino Uno R3 Raspberry Pi

5V 2-Channel Relay interface board and each one needs 15-20mA Driver Current
Equipped with high-current relay, AC250V 10A ; DC30V 10A
Standard interface that can be controlled directly by microcontroller (Arduino, Raspberry Pi, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
Indication LED's for Relay output status
Size: 50.5mm(L) x 38.5mm(W) x 18.5mm(H)(1.99inch x 1.54inch x 0.73inch)
It activates at a low level

Package includes:

1 x 5V 2 Channel Relay Module Control Board With Optocoupler for Arduino
