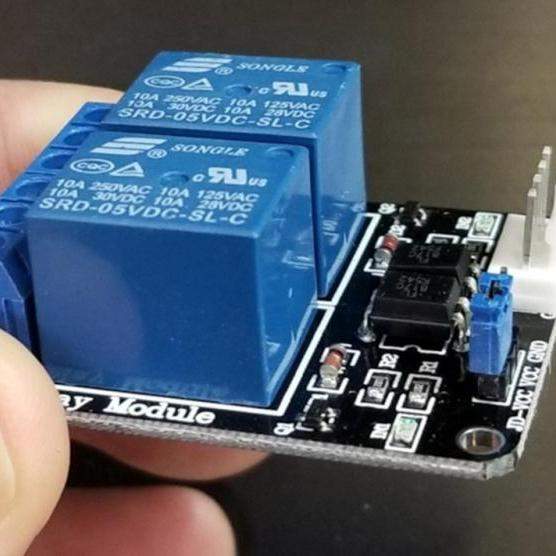

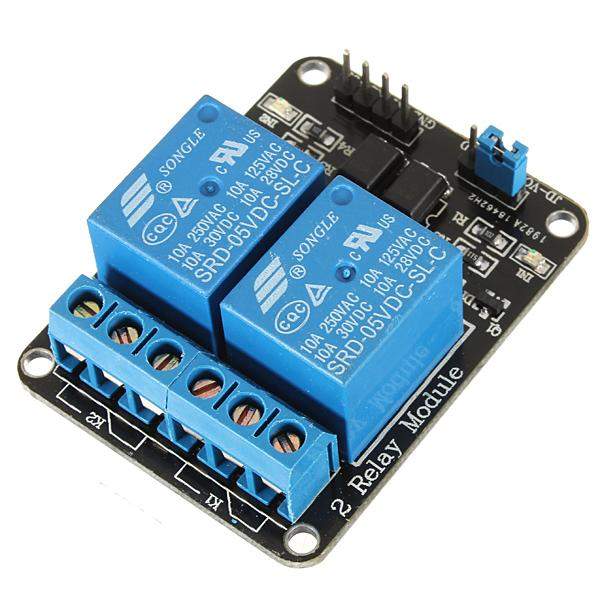

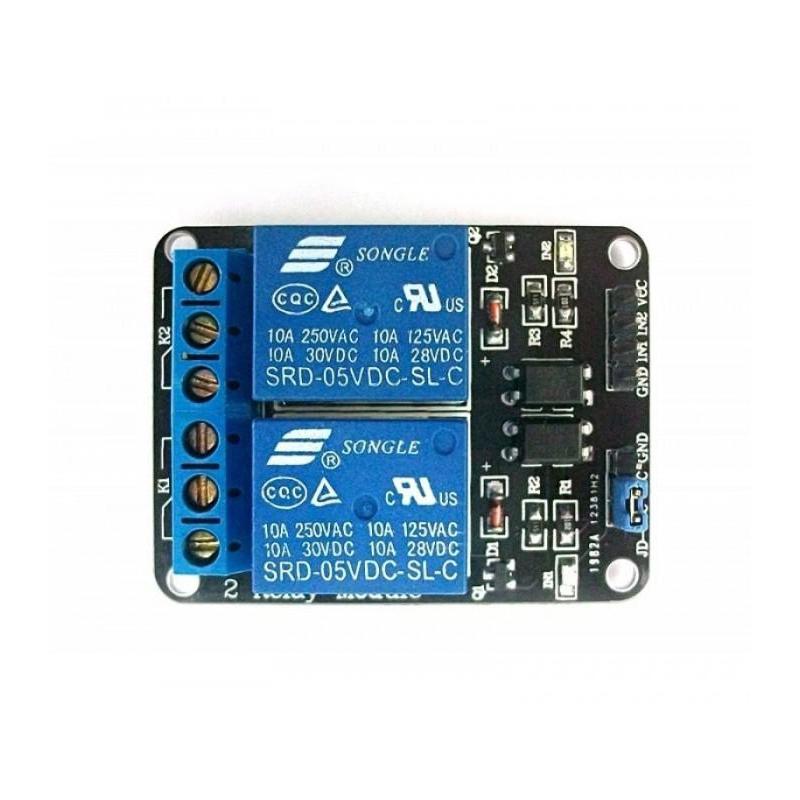

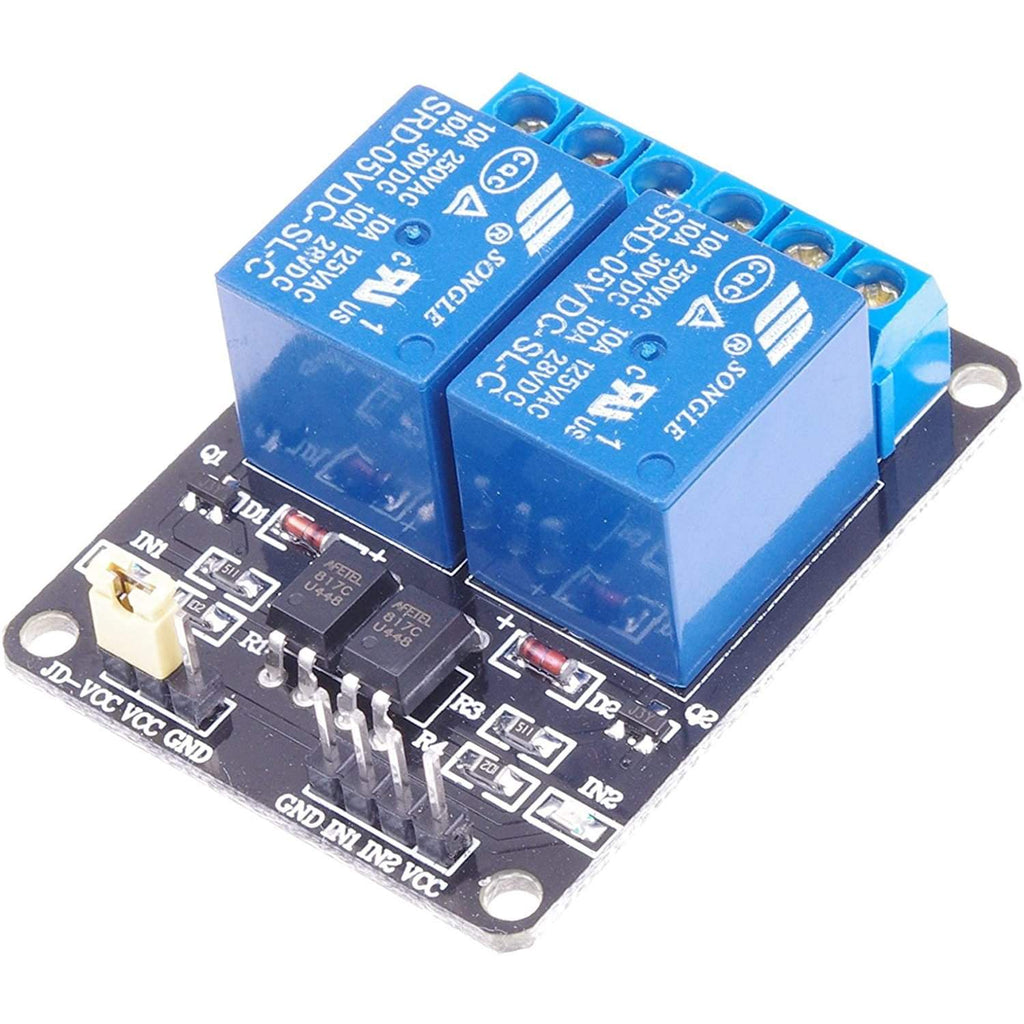

5V Dual-Channel Relay Module Shield With Arduino

Name: 5V 10A 2 Channel Relay Module Shield For Arduino and Raspberry PI
Brand: Robotbanao.com
SKU: RB-1124
Price: 96.00 INR
Availability: OutOfStock

Save 31%

Robotbanao.comSKU: RB-1124

Price:

Rs. 96.00 Rs. 139.00

Tax included Shipping calculated at checkout

Stock:

Sold out

Quantity:

Available Offers :

First Purchase: Get 5% off on your first order use code FIRST

Reward Points : Get 2 Coin for every ₹1 spent.

Share this product

5V 2-Channel Relay Module interface board, Be able to control various appliances and other equipment with large current. It can be controlled directly by Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

It is a relay interface board
It can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, and so on.
It uses a low level triggered control signal (3.3-5VDC) to control the relay.
Triggering the relay operates the normally open or normally closed contacts.

Specification

Relay Type	Low Level Trigger
Logic Input (V)	3.3 ~ 5
Trigger Voltage (VDC)	5
Switching Voltage (VAC)	250@10A
Switching Voltage (VDC)	30@10A
Length (mm)	50.6
Width (mm)	39
Height (mm)	19.5
Weight (gm)	28
Shipment Weight	0.03 kg
Shipment Dimensions	6 × 5 × 3 cm

FEATURES:-

5V 2-Channel Relay Module Good for safe control of higher amperage circuits. In power systems, the lower current can control the higher one.

2-channel high voltage system output, meeting the needs of dual-channel control.

Brand new and high quality.

Wide range of controllable voltages.

Being able to control high load current, which can reach 250V, 10A or 125V, 15A

With a normally-open (NO) contact and a normally-closed (NC) contact.

Around the board with 4 mounting holes, easy installation, and fixing

It has a common end, a beginning, a closed-end

1 x 5V Dual-Channel Relay Module Shield With Arduino

Nice

Nice module

It's very elegant design.. however there is no data sheet or connection diagram especially. I found it difficult to use it in my project without these details.. if these details are available then it will facilitate we designers

5V 10A 2 Channel (2 CH ) Relay Module Shield For ARDUINO

Don't hesitate to buy by looking unbranded tag. It works fine and is cheaper than other branded product. Just look ur requirements for me 2 channel was sufficientit's s great product in this price. The quality of this product is very good. I m very much satisfied with this product.

best relay board with resonable price available in Robotbanao . Thanks to the seller for sending it in hard paper box. The presentation is good. board is working just fine, tested it immediately with ESP-01 with Blynk app . all relay trigger pins are working in 3.3 volt directly fom the ESP-8266-01. The electrical isolation from board to controller through optocupler is given. All the components are places perfectly, the space between high voltage to lowe voltage pins are good. Overall Its really a good product. I definitely buy it again.
