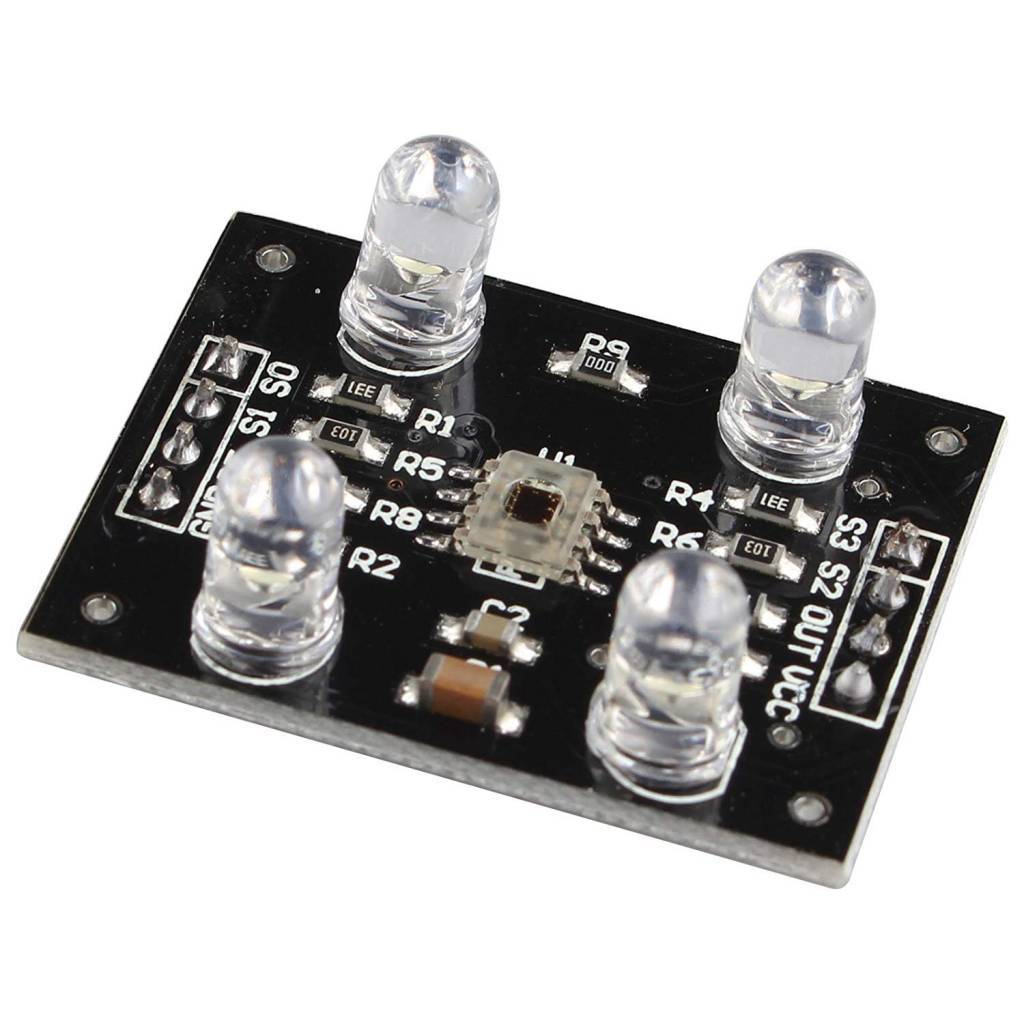

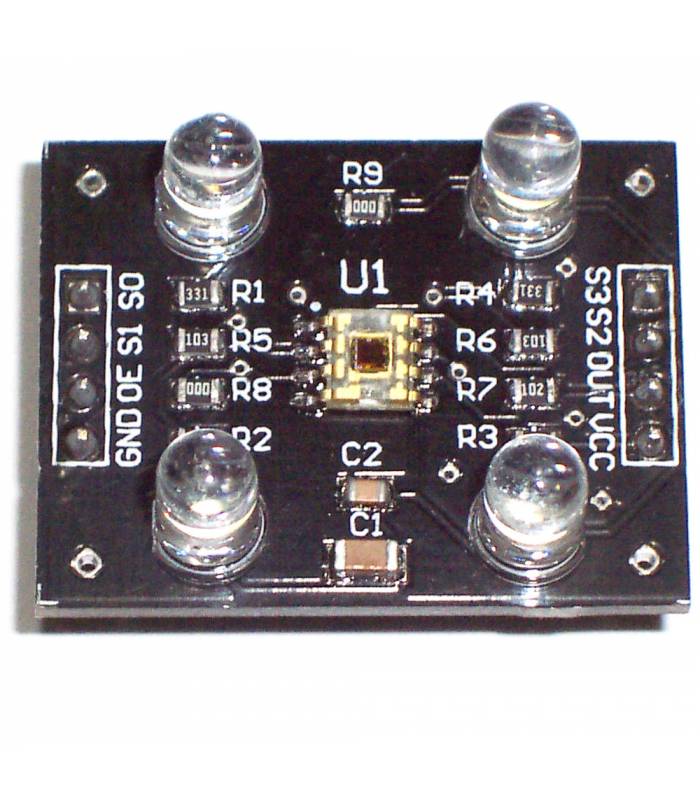

3V - 5V TCS230 TCS3200 Detector Module Colour Recognition Sensor for Arduino, Arm and Other MCU

PRODUCT OVERVIEW:

• Tcs3200 color sensor gy-31 tcs230 module for Arduino, arm and other MCU

• High-resolution conversion of light intensity to frequency programmable color and full-scale output frequency power-down feature

• Communicates directly to microcontroller s0~s1: Output frequency scaling selection inputs s2~s3: Photodiode type selection inputs out pin: Output frequency

• Product pin 3pin (negative, positive signal,)

• Support LED lamp light supplement control; Size: 28.4×28.4mm

TCS3200 color sensor gy-31 TCS230 module for Arduino, arm and other MCU high-resolution conversion of light intensity to frequency programmable color and full-scale output frequency power down feature communicates directly to micro-controller s0~s1: Output frequency scaling selection inputs s2~s3: Photodiode type selection inputs out pin: Output frequency 1 supply voltages up to 5v. TCS3200 Color Sensor is a complete color detector, including a TAOS TCS3200 RGB sensor chip and 4 white LED's. The TCS3200 can detect and measure a nearly limitless range of visible colors. Applications include test strip reading, sorting by color, ambient light sensing and calibration, and color matching, to name just a few. The TCS3200 has an array of photo detectors, each with either a red, green, or blue filter, or no filter (clear). The filters of each color are distributed evenly throughout the array to eliminate location bias among the colors. Internal to the device is an oscillator which produces a square-wave output whose frequency is proportional to the intensity of the chosen color.

TCS230 color recognition sensor

The TCS230 Color Detection Sensor is a set of adjustable silicon photodiodes with a frequency-current converter created in an integrated circuit in the form of an integrated module. The sensor has digital input and output pins that make it easy to connect to the Arduino board, and the TCS230 color detection sensor output is a square wave whose frequency is adjusted to the light intensity
