- Rated voltage: 5V DC
- Reduction Ratio: 64:1
- Step Angle: 5.625° /64
- Frequency: 100Hz
- Self-positioning Torque: >34.3mN.m
- Friction torque: 600-1200 gf.cm
- Pull in torque: 300 gf.cm

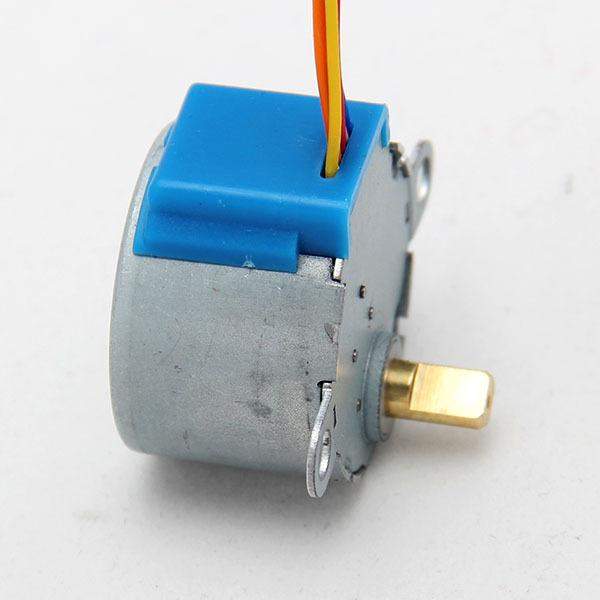

This 5V DC 28BYJ-48 Stepper Motor is small, inexpensive and high-quality geared step motor. The 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a widely popular combination of the stepper motor and stepper driver, because of the stability and reliability of the system.
This 28BYJ-28 stepper motor is imported from one of our trusted suppliers and the supplier has guaranteed for the quality of these compact stepper motors.
The motor has a reduction ratio of 64:1, so it offers a decent torque for its size at speeds of about 15 RPM. It is a unipolar stepper motor which has 5-wires.

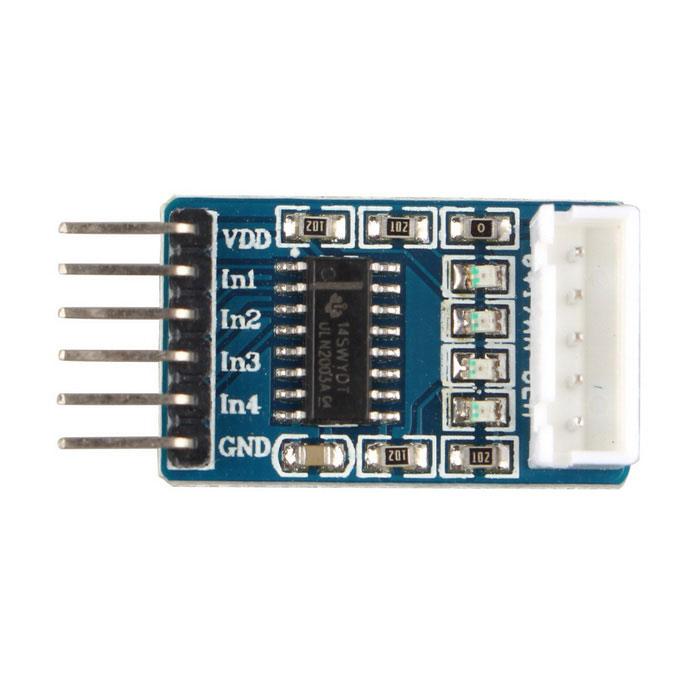

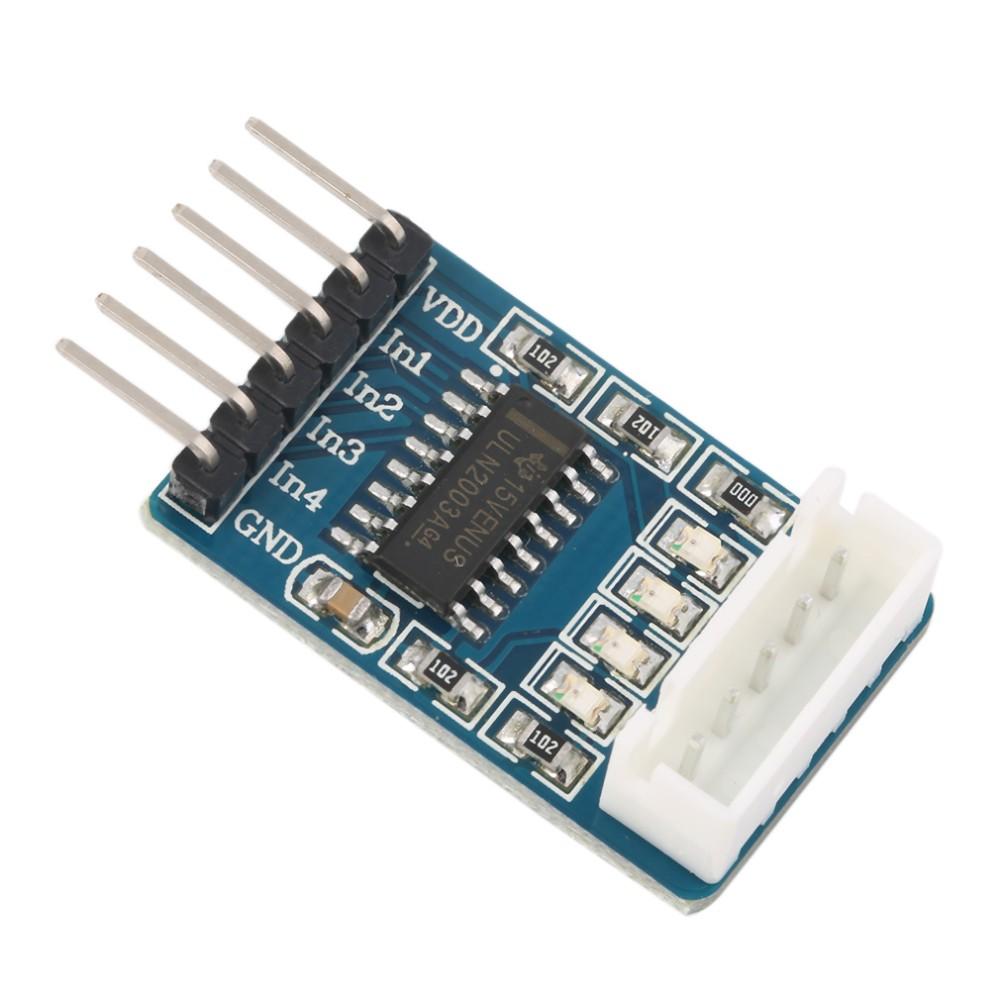

As stated before the pack contains ULN2003 Stepper motor driver which is a Mini Stepper Motor Driver.The main purpose of ULN2003 is to amplify the control signals from the Arduino, so as to drive the 28BYJ-48 Stepper Motor.
If you will give the ULN2003 Stepper motor driver a certain pulse signal, it will drive step motor to a certain angle.The control of Stepper motor movement angle is done by controlling the number of stepper motor driver pulses. The speed of the stepper motor rotation is also controllable by controlling the frequency of the pulses.
Connect the 28BYJ-48 motor with the ULN2003 motor driver then interface this combination of motor and driver with Arduino, do some coding and your 28BYJ-48 Stepper Motor is ready to listen to your commands!!! Perfect!!!
Rated Voltage: DC5V
Reduction Ratio: 1/64
Step Torque Angle: 5.625/64
DC Resistance: 200±7% (25)
Insulation Resistance: >10M (500V)
Dielectric Strength: 600V AC / 1mA / 1s
No-load Pull in Frequency: >600Hz
No-load Pull out Frequency: >1000Hz
Pull in Torque: >34.3mN.m(120Hz)
Detent Torque: >34.3mN.m
Temperature Rise: <40K(120Hz)
Noise: <40dB (120Hz, No load, 10cm)
Board Size: Approx. 29 ×21 mm

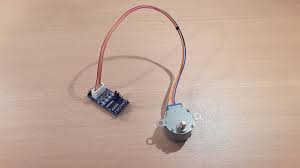

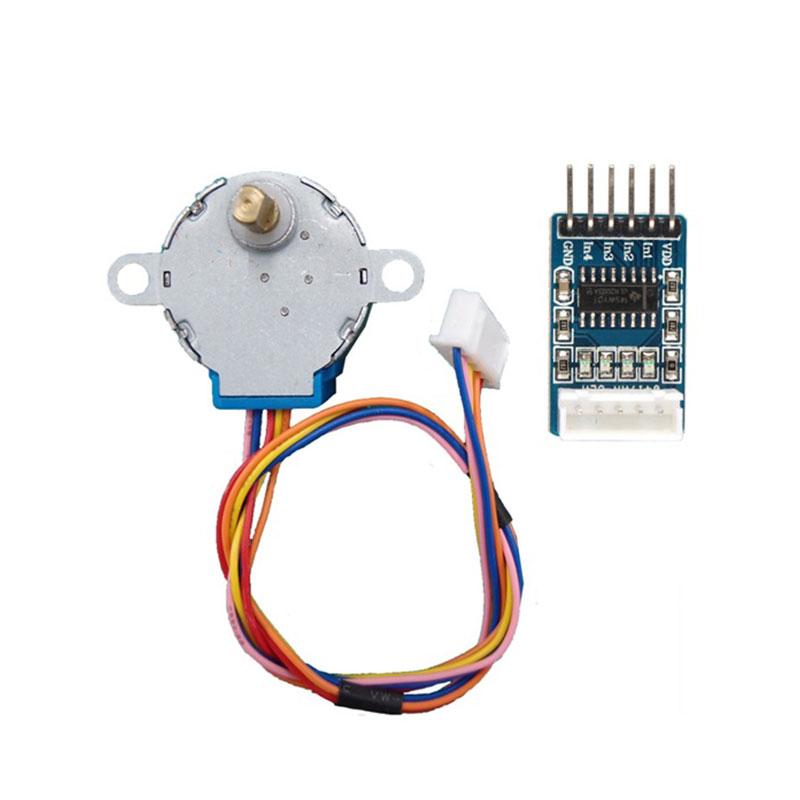

1 x 28ybj-48 DC 5V 4 Phase 5 Wire Stepper Motor With ULN2003 Driver Board
Country Of Origin: China
Imported and Marketed By:
Select Brands International Pvt Ltd
