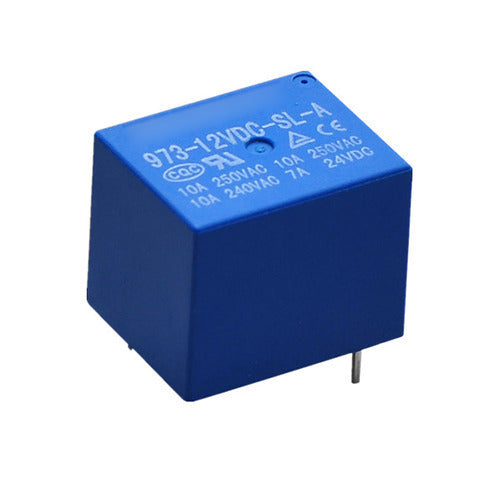

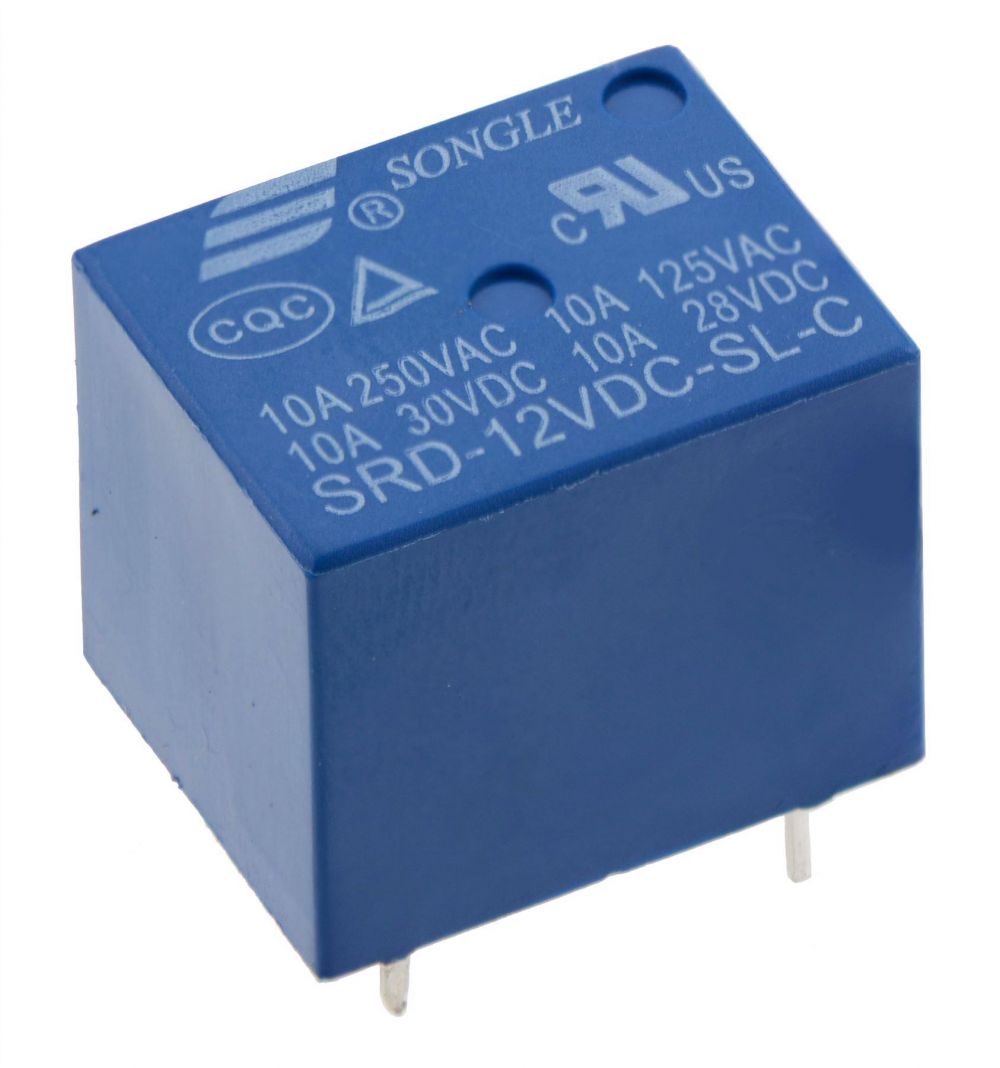

12V SPDT PCB Mount Sugar Cube Relay Switch is an electromechanically operated switch. The 12V 10A SPDT is a single pole double throw (SPDT) relay, having a common terminal that connects to either of two others, including two for the coil, such a relay has five terminals. With a compatible voltage of 12V, it can pass a max 10A current. And for the max power rating as it is written on the product 30VDC, with 30VDC it can pass max current 10A. Relays are generally used when it is necessary to control a circuit by low-power signal, or where several circuits must be controlled by one signal. It is a very must-have component for any electronic project where you need to control an AC device with a DC signal.
I had ordered relays with coil voltage of 12 volts. However I received both the relays with coil voltage of 5 volts.. so unsuitable.. moreover one piece was used piece with soldered pins..
Now product is lying unused with me..
