- DC 10V to 60V input voltage, 12V to 83V continuously adjustable output voltage, 20A maximum input current, 18A maximum output current
- 92% to 97% high conversion efficiency, stable and reliable performance

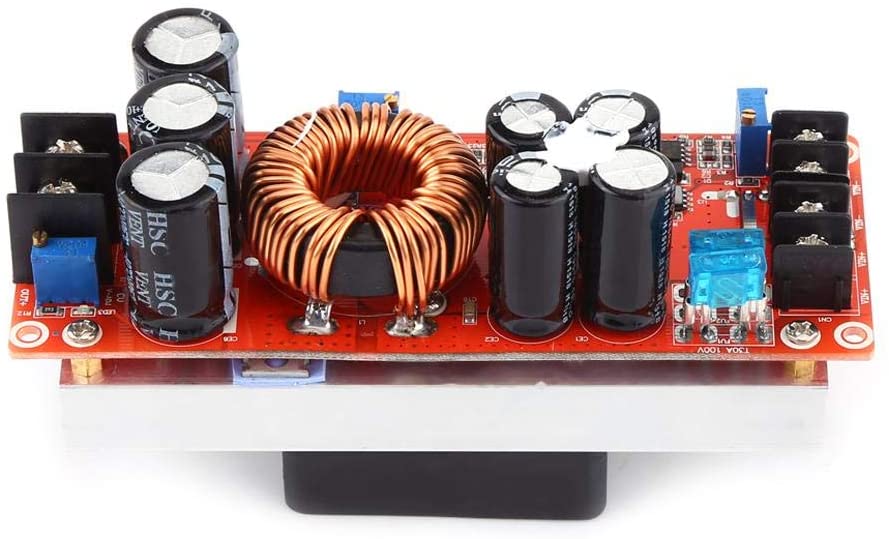

- Input and output are designed with screw terminals, you can connect or disconnect the wire conveniently

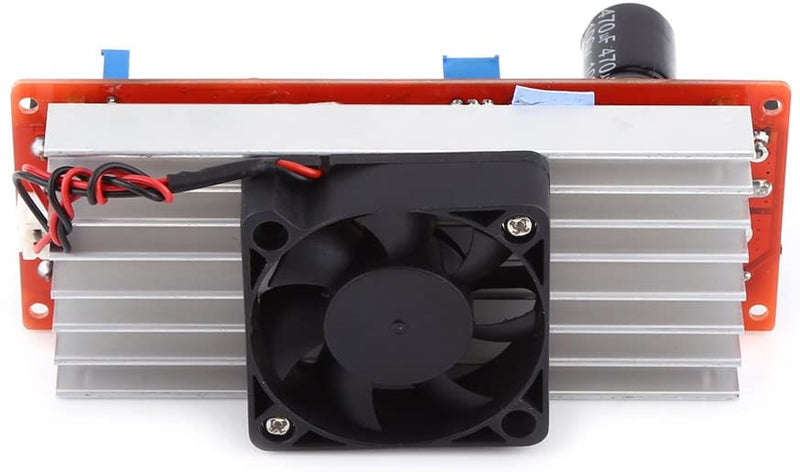

- Designed with a big heat sink and cooling fan, better heat dissipation performance
- Suitable for electric equipment, digital products, laptop, etc.
- Input voltage: 8-60V
- Input Current: 20A
- Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
- Output voltage: 12-80V continuously adjustable
- Output Current: 20A MAX Over 15A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current)
- Constant Range: 0.5-20A
- Input power supply voltage must be above 10V.
- When the power supply is used for the input power supply, the input power and the output voltage of the input power supply are the first to be unloaded. Then pick up the load. (must ensure that the switching power supply has been working).
- When the constant current mode is used to set the voltage, the constant voltage must be higher than the input voltage.Do not use the way of short circuit output current, the circuit structure of the boost module can not be adjusted in short circuit way.
- If the input voltage fluctuation range is lower than the set output voltage,then the output voltage is constant, it is to ensure that input is lower than the output voltage.

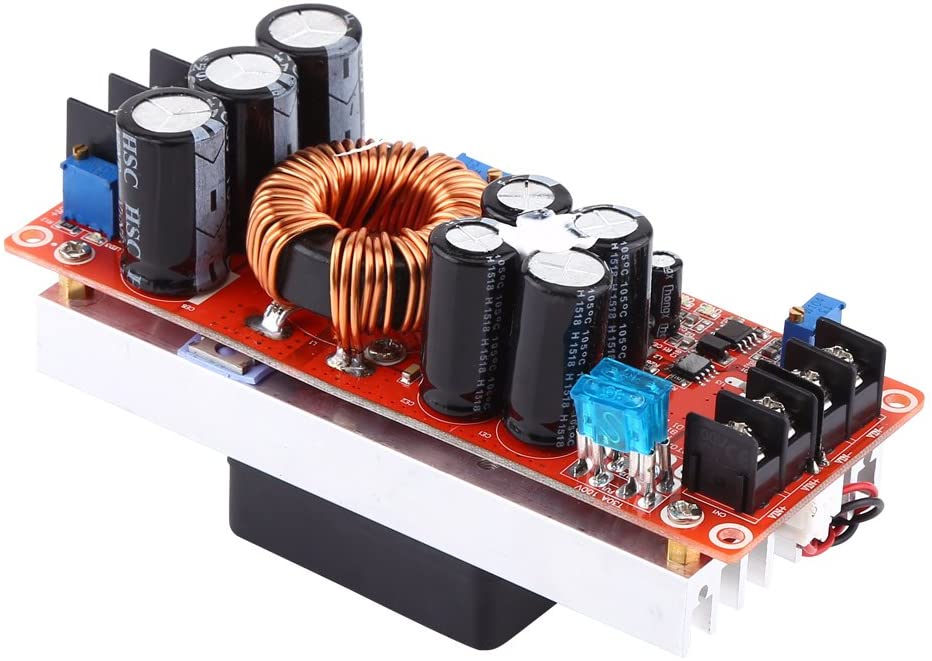

1 x 1200W 20A DC Converter Boost Step-up 8-60V To 12-83V Power Supply Module
