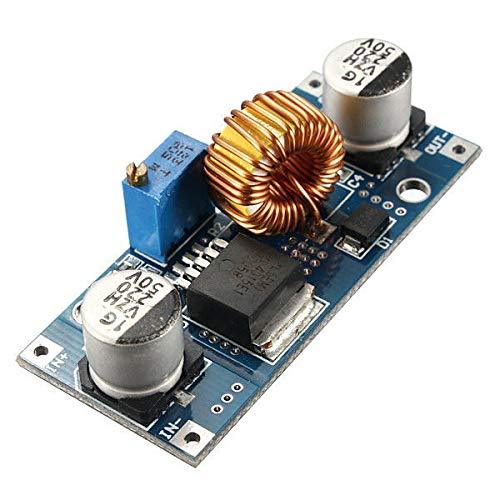

XL4015 5A CC CV Lithium Charger DC-DC Step Down Adjustable Power Supply Buck Module

PRODUCT OVERVIEW:

The XL4015 is a 180 kHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 5A load with high efficiency, low ripple, and excellent line and load regulation. ... When short protection function happens, the operation frequency will be reduced from 180KHz to 48KHz.

The XL4015 5A DC-DC Step Down Adjustable Power Supply Buck Module is a 180 kHz fixed frequency PWM buck (step-down) DC/DC module, capable of driving a 5A load with high efficiency, low ripple, and excellent line and load regulation.

This product is a 180 kHz fixed frequency PWM buck (setup-down) DC/DC module, capable of driving a 5A load with high efficiency,  low ripple, and excellent line and load regulation.

The DC/DC buck module has applications where the input voltage is higher than the output voltage, such as battery, power transformer, DIY adjustable regulated power supply, LCD Monitor and LCD TV portable instrument power supply telecom/networking equipment, 24V vehicle notebook power supply, industrial equipment buck.

This module has an adjustable output Voltage. It also works as a dedicated charger for Lithium Batteries (li-ion lipo) as it is capable of controlling voltage as well as current. Ex. 12V buck to 3.3V, 12V buck to 5V, 24V buck to 5V,24V buck to 12V, 36V buck to 24V, etc.

  Features :

1. High efficiency up to 96%


2. The built-in thermal shutdown function


3. Built-in current limit function


4. In-Built output short protection function


5. Input reverse polarity protection: None (if required, the high current diode in series with the input).
