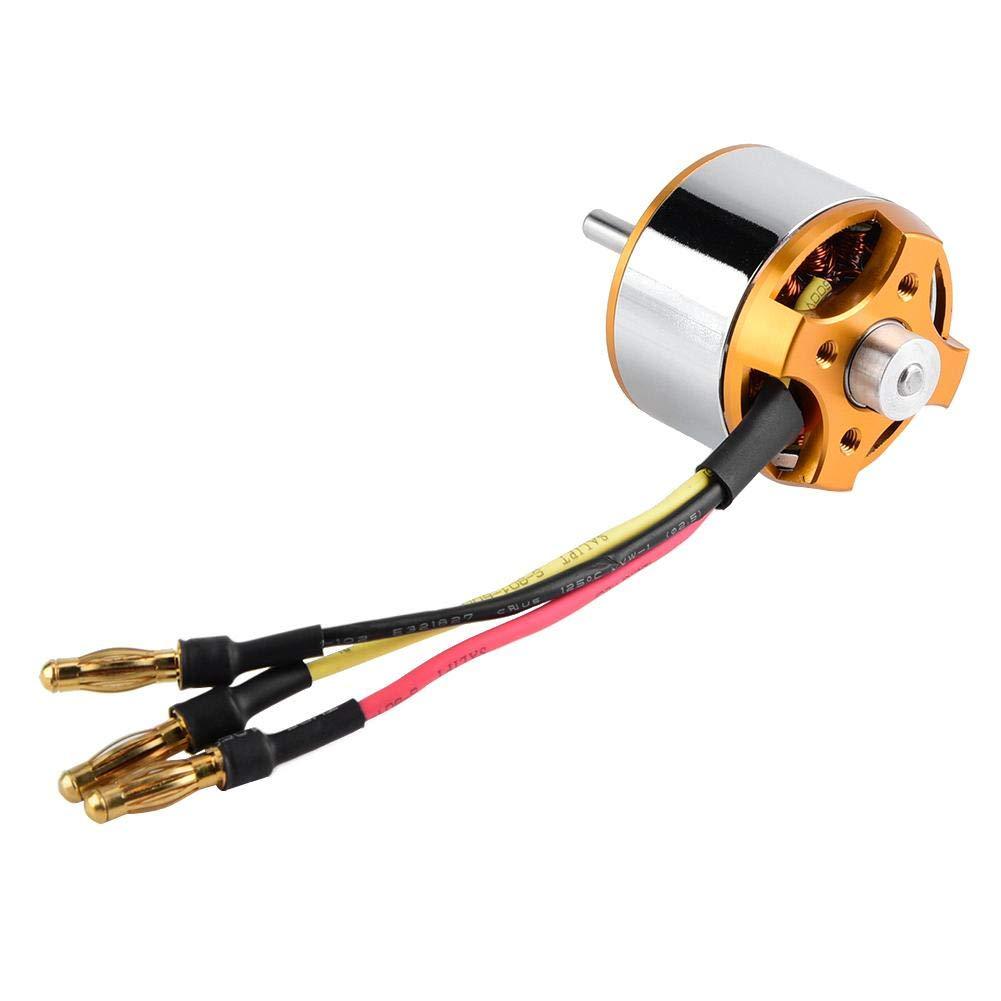

A2212 1000KV Brushless DC Motor With 30A ESC

PRODUCT OVERVIEW:

• High quality and high-cost performance.

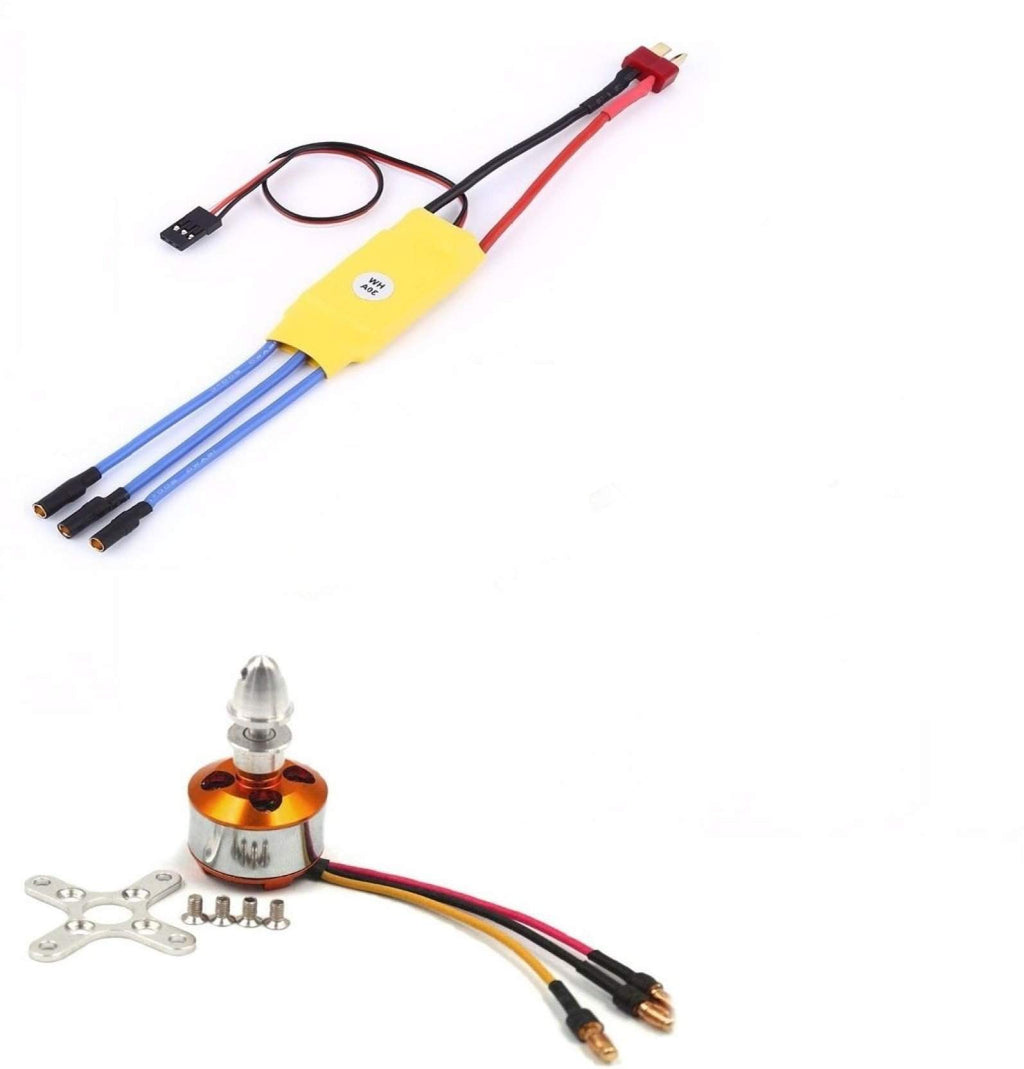

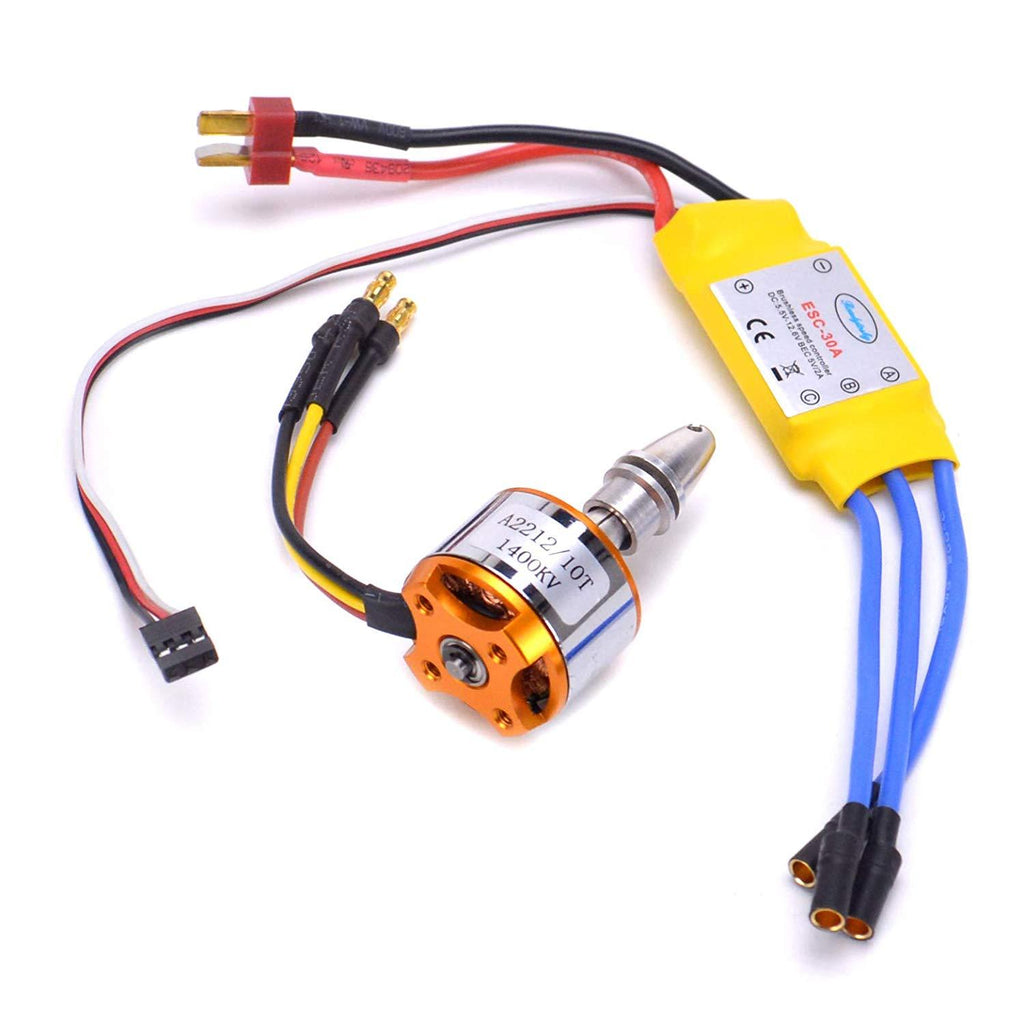

• RC Combo Kit 30A ESC + 1045 Propeller set + Brushless Motor (BLDC)


• 1 x 30A ESC

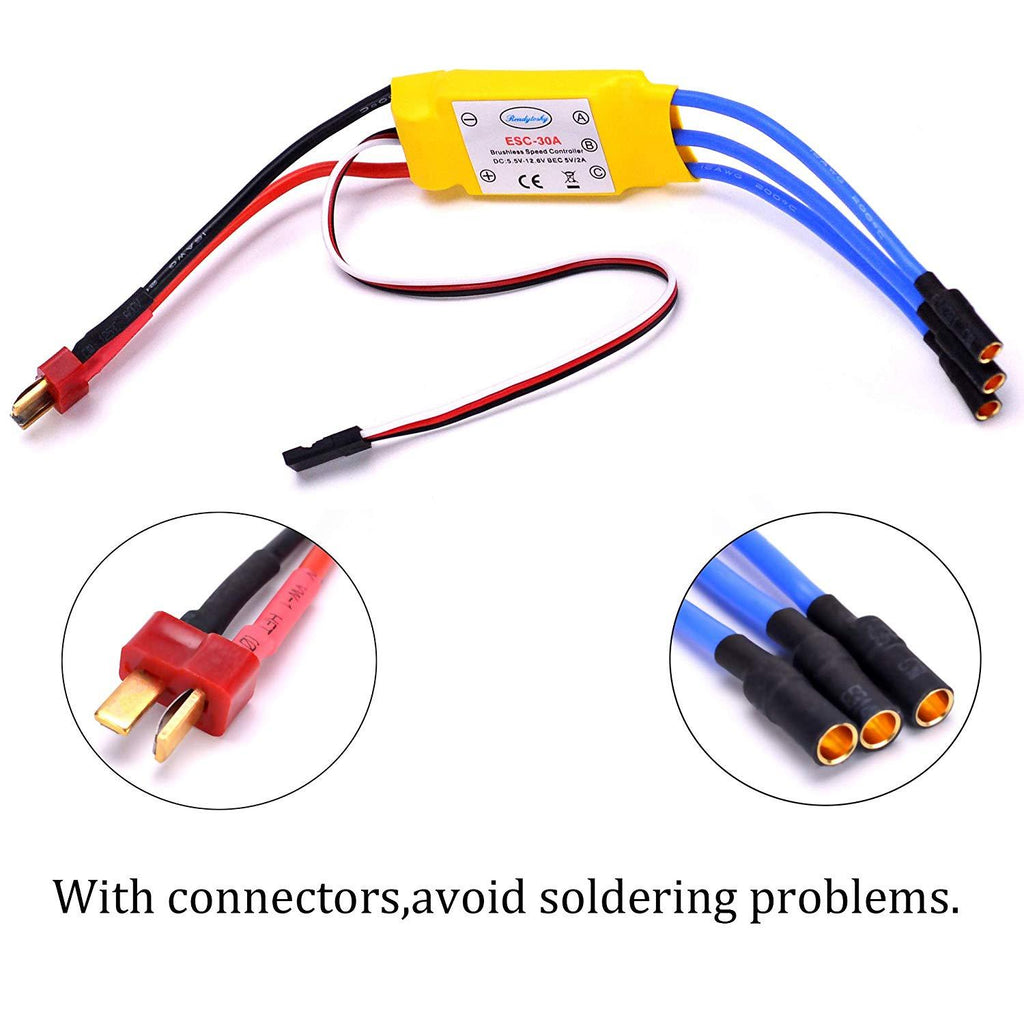

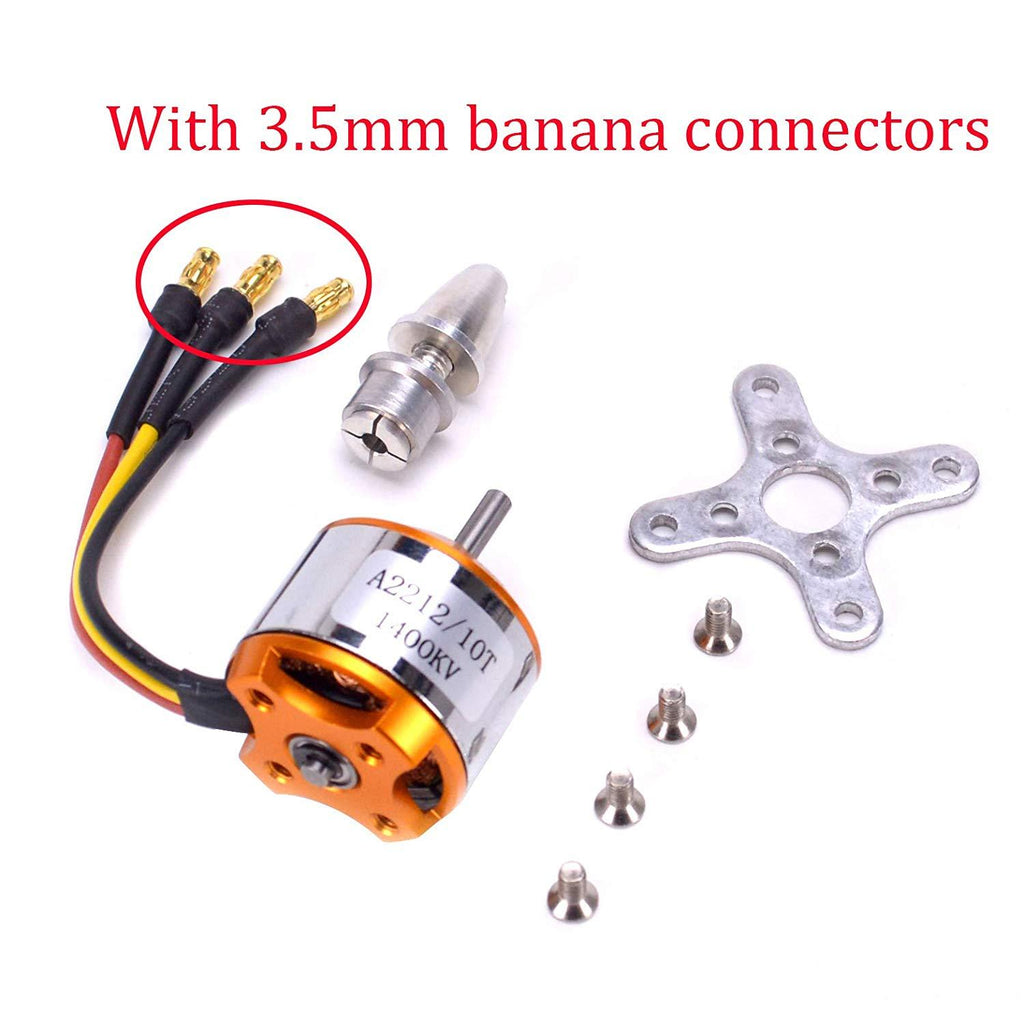

• Soldered Bullet connectors to motor and ESC for easy connection.


• Suitable for airplanes, aircraft, quad-copters, ESC used has an On-Board BEC.

--

MODEL NO: A2212 1000KV BRUSHLESS MOTOR + 30A ESC

WEIGHT and DIMENSIONS:

Motor size and weight: 27.5 x 27mm / 1.1 * 1.1in and 48g

ESC Size and weight: 45 x 24 x 11mm / 1.8 * 0.9 * 0.4in and 25g

TECHNICAL SPECIFICATIONS:

Brushless Dc Motor: KV (rpm/volt): 1000

Thrust: 900/4

Efficiency: 80%

Efficiency current: 4-10A (>75%)

Current capacity: 12A/60s

Load current @10v: 0.5A

Working voltage: 7-12V

Brushless ESC: Output: Continuous 30A, burst 40A up to 10 Secs.

Input voltage: 2-4 cells

Lithium battery or 5-12 cells NiCd/NIMh

Battery BEC: 2A / 5V (Linear mode).

Max speed: 210,000rpm for 2 poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: Brushless Motor)

Package Includes:

1x A2212 1000KV Brushless Motor and 30A ESC Electric Speed Controller
