400 Tie Points Solderless Self-Adhesive Breadboard Nickel Plated Bread Board Or Solderless Pieces PCB Circuit Test Board, Project Board for DIY Projects

Name: 400 Tie Points Solderless Self-Adhesive Breadboard Nickel Plated Bread
Brand: Robotbanao.com
SKU: RB-1130
Price: 62.00 INR
Availability: InStock

Save 30%

Robotbanao.comSKU: RB-1130

Price:

Rs. 62.00 Rs. 89.00

Tax included Shipping calculated at checkout

Stock:

In stock

Quantity:

Available Offers :

First Purchase: Get 5% off on your first order use code FIRST

Reward Points : Get 2 Coin for every ₹1 spent.

Share this product

PRODUCT OVERVIEW:

Cable Size (AWG) : 20 – 29

Maximum Voltage(V) : 300

Maximum Current(A) : 3 – 5

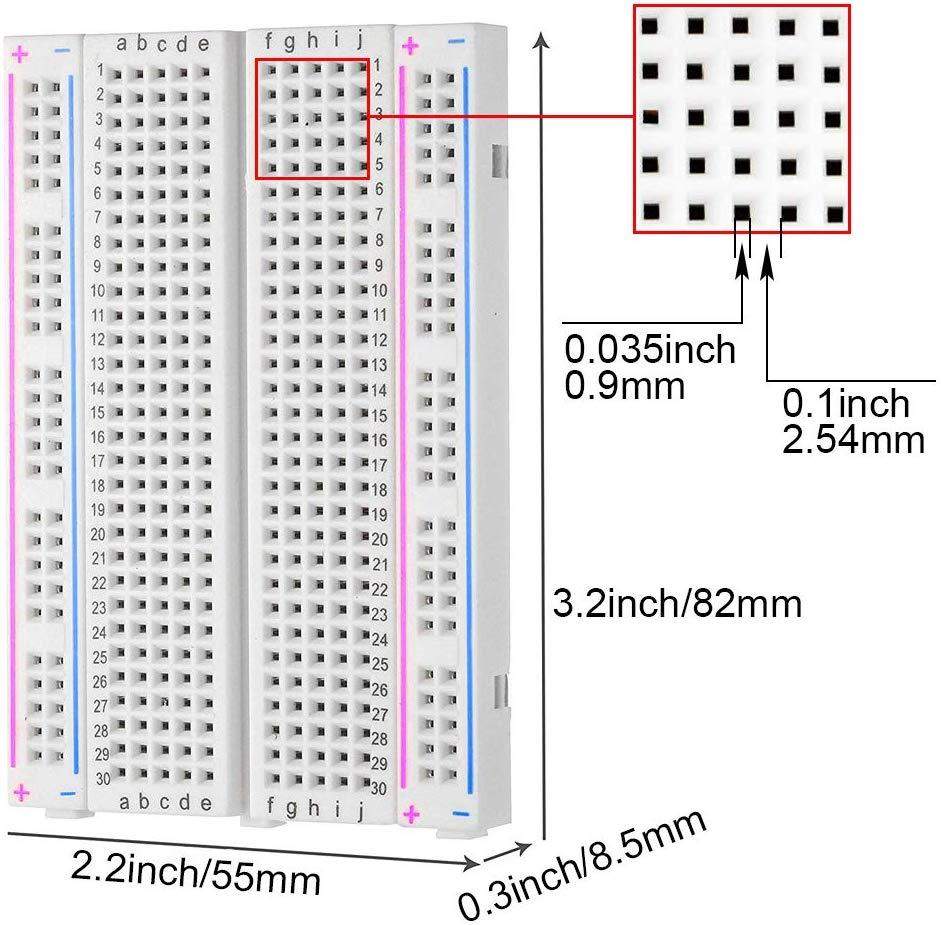

Length (mm) : 82

Width (mm) : 55

Height (mm) : 10

Specification:

Maximum Voltage(V)	300
Maximum Operating Current (A)	3 – 5
Allowed Wire Size (AWG)	29 ~ 20
Length (mm)	82
Width (mm)	55
Height (mm)	10
Weight (gm)	40
Shipment Weight	0.043 kg
Shipment Dimensions	9 × 6 × 1 cm

Description:

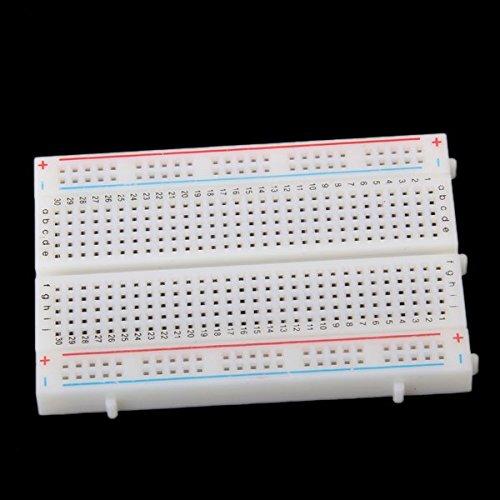

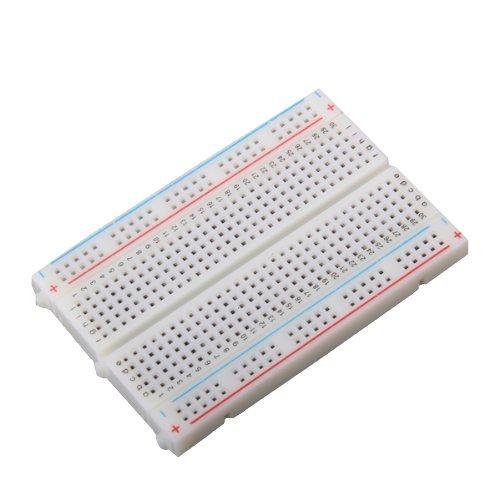

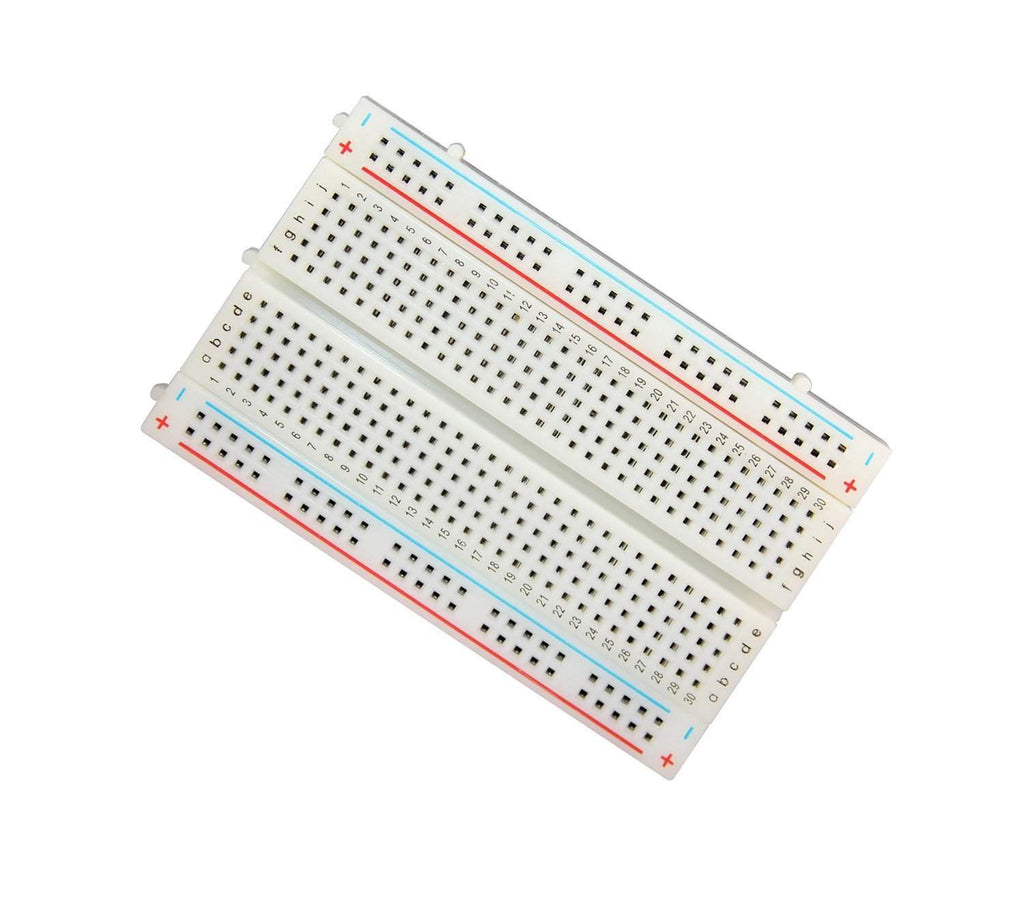

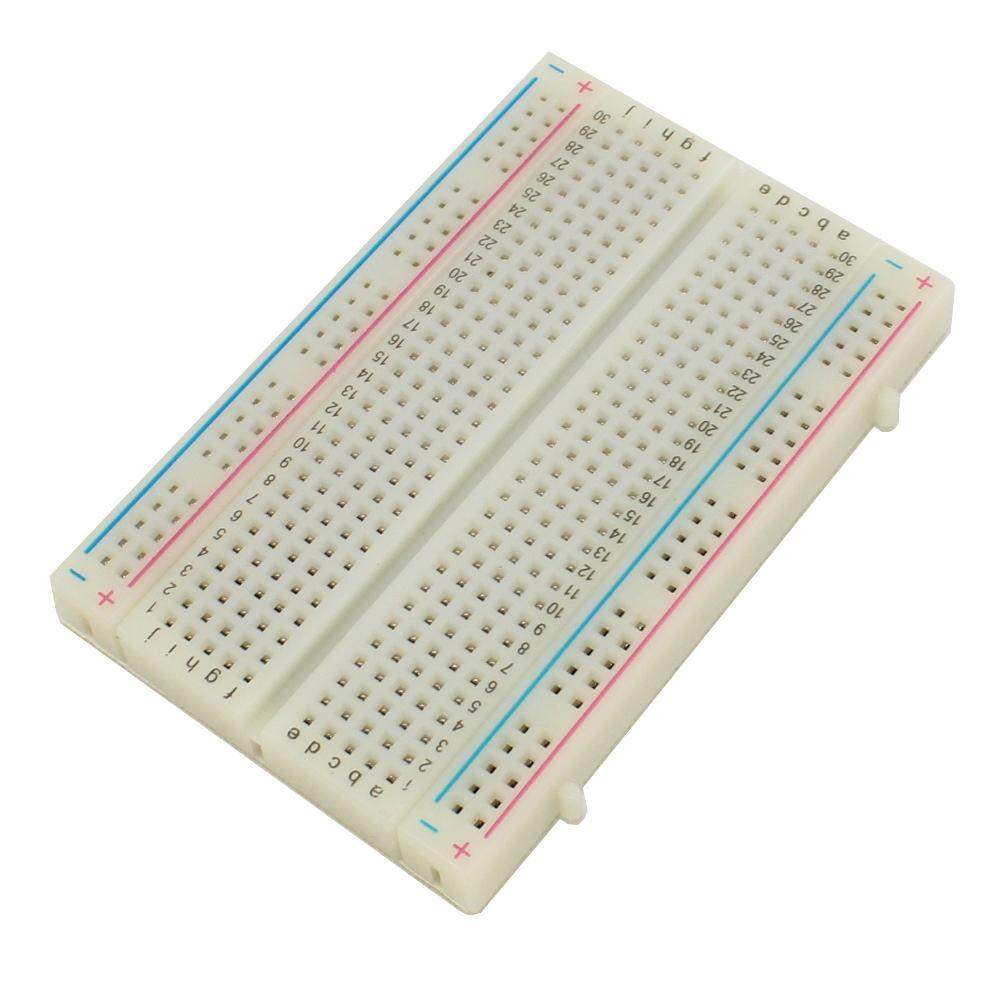

400 Tie Point Solderless Breadboard is a cute half size breadboard, good for small projects. It has 2 power buses, 30 columns, and 10 rows - a total of 400 tie in points. ... The two sets of five rows are separated by about 0.3", perfect for straddling a DIP package over.

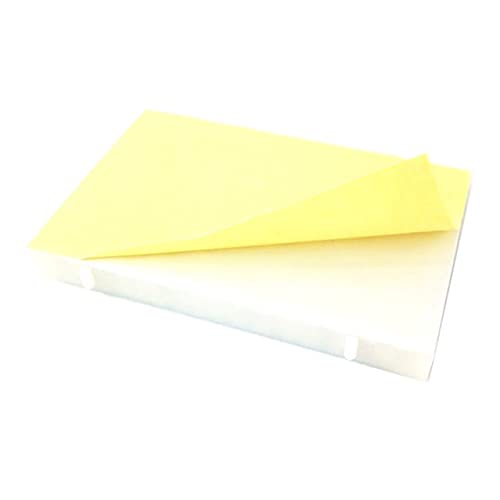

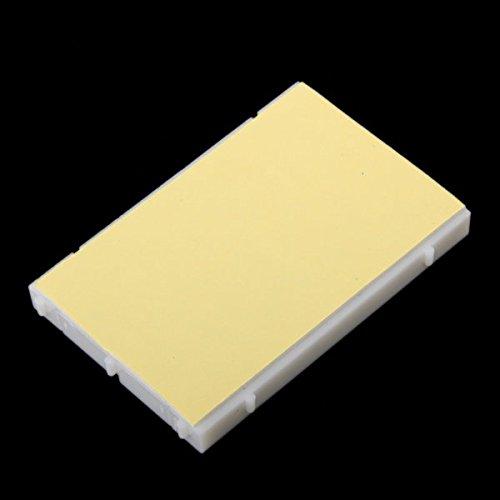

It is Reusable for fast build a prototype of an electronic circuit – will accept transistors, diodes, LED's, resistors, capacitors and virtually all types of components – No soldering required – Can modify or revise the circuits easily Fit for jumper wire of 0.8mm diameter – Standard 2.54mm hole spacing Adhesive sheet on the backside of the board – Multiple breadboards can be spliced together too.

Uses of 400 tie Point Breadboard:

Solderless breadboards are used to prototype circuits without the requirement of generating a Printed Circuit Board [PCB]. Breadboards may be used to test and evaluate new circuit designs in development or prototype changes in a existing designs.

Purpose of 400 Point Breadboard:

A breadboard is a rectangular board with many mounting holes. They are used for creating electrical connections between electronic components and single board computers or microcontrollers such as Arduino and Raspberry Pi. The connections aren't permanent and they can be removed and placed again.

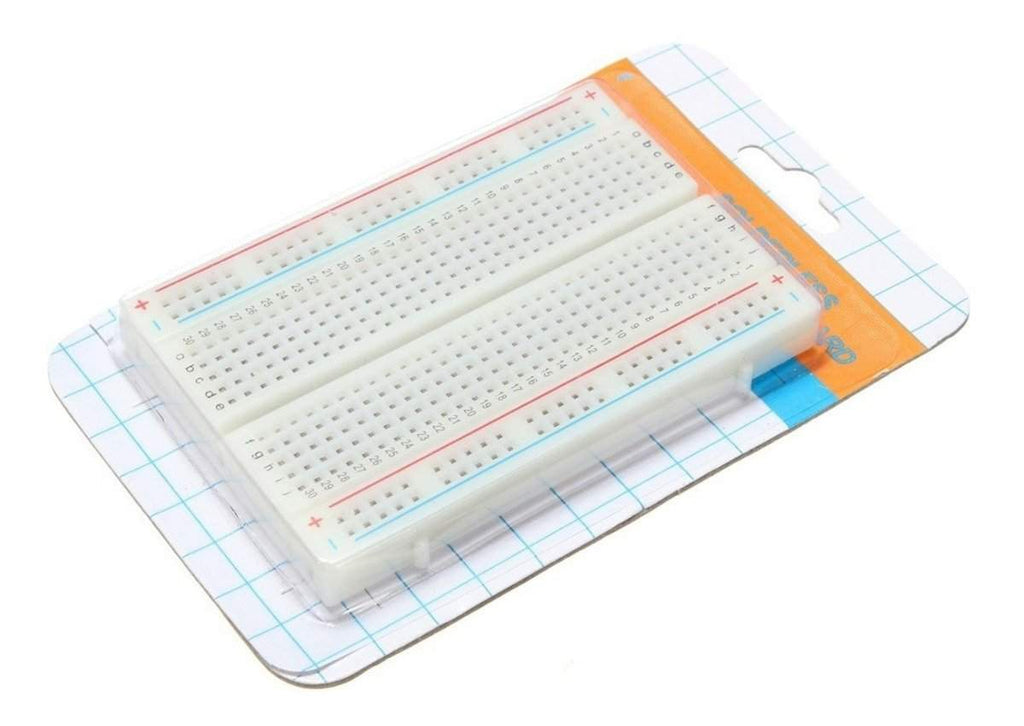

1 X 400 Tie Points Breadboard
